Rear Parking Aid Camera Wiring Harness

Rear Parking Aid Camera Wiring Harness

Removal

CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
1 Remove the LH rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel Rear Quarter Trim Panel




2 Release the rear quarter trim panel.
- Carefully release the 4 clips.
3 Remove the rear spoiler. For additional information, refer to Rear Spoiler




4 Release the liftgate aperture seal.




5 Carefully release the headliner for access.
- Carefully release the 2 clips.
6 Open the liftgate window glass.




7
CAUTION: Make sure that the liftgate window glass is not closed while the liftgate window glass latch is in the closed position. Failure to follow this instruction may result in damage to the vehicle.
Using a suitable tool, close the liftgate window glass latch.




8 Open the liftgate and liftgate window glass to the position shown.




9 Release the liftgate to liftgate window glass gaiter.

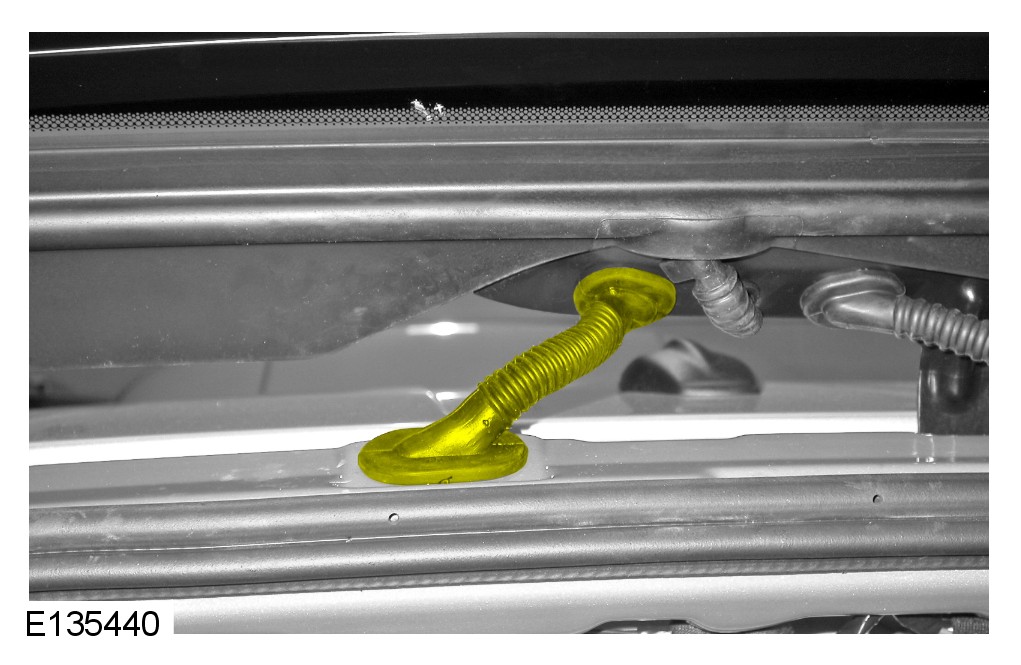

10 Release the body to liftgate gaiter.

11 Remove the LH scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair





12 Release the wiring harness cover.
- Release the 3 clips.

Installation





1
CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
Install the camera overlay wiring harness




2
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Remove the connector from the camera overlay wiring harness.
- Remove the locking tab.
- Carefully release the clip.
- Apply suitable tape to protect the end of the camera overlay wiring harness.




3 Using suitable tape, secure a suitable rod to the camera overlay wiring harness.




4
NOTE:
This step requires the aid of another technician.
Carefully feed the camera overlay wiring harness through the gaiters and along the main body wiring harness until the new camera overlay wiring harness protrudes an equal distance from the liftgate window glass as the existing camera wiring harness.




5 Secure the body to liftgate gaiter.




6 Secure the liftgate to liftgate window glass gaiter.
7
CAUTION: Make sure that excessive force is not used when installing the tie straps to the wiring harness. Failure to follow this instruction may result in damage to the harness.
Using suitable tie straps, secure the camera overlay wiring harness to the main body wiring harness.
8 Install the rear spoiler. For additional information, refer to Rear Spoiler




9 Secure the rear quarter trim panel.
- Secure the 4 clips.





10 Secure the headliner.
- Secure the 2 clips.

11 Install the LH rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel Rear Quarter Trim Panel





12
CAUTION: Make sure that the liftgate window glass latch is released before closing the liftgate window glass. Failure to follow this instruction may result in damage to the vehicle.
Install the liftgate aperture seal.

13 Remove the LH front seat. For additional information, refer to Front Seat Front Seat





14 Disconnect the electrical connector.





15
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
Install the connector to the camera overlay wiring harness.
- Remove the protective tape.
- Install the electrical connector.
- Secure the locking tab.





16 Connect the electrical connector.

17 Install the LH front seat. For additional information, refer to Front Seat Front Seat





18 Install the wiring harness cover.
- Secure the 3 clips.

19 Install the LH scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair
