Right Hand Parking Aid Camera Wiring Harness

Right Hand Parking Aid Camera Wiring Harness

Removal

CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
1 Remove the LH front seat. For additional information, refer to Front Seat Front Seat
2 Repeat procedure for the other side.
3 Remove the floor console. For additional information, refer to Floor Console Floor Console
4 Remove the LH scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair
5 Repeat procedure for the other side.




6 Release the wiring harness cover.
- Release the 3 clips.
7 Repeat procedure for the other side.
8 Remove the RH cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel
9 Remove the accelerator pedal assembly. For additional information, refer to Accelerator Pedal

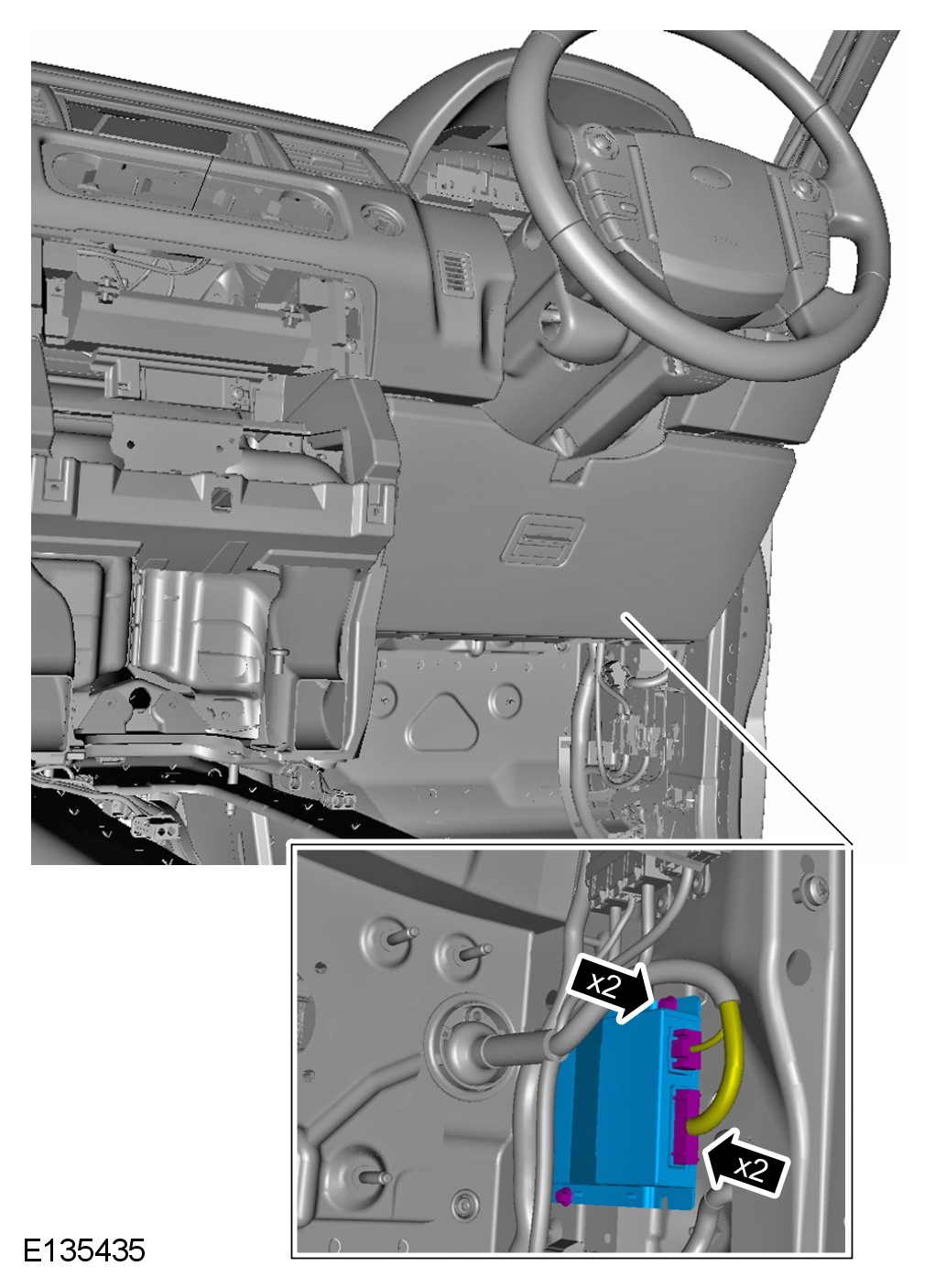

10 Remove the dynamic response module.
- Remove the 2 bolts.
- Disconnect the 2 electrical connectors.

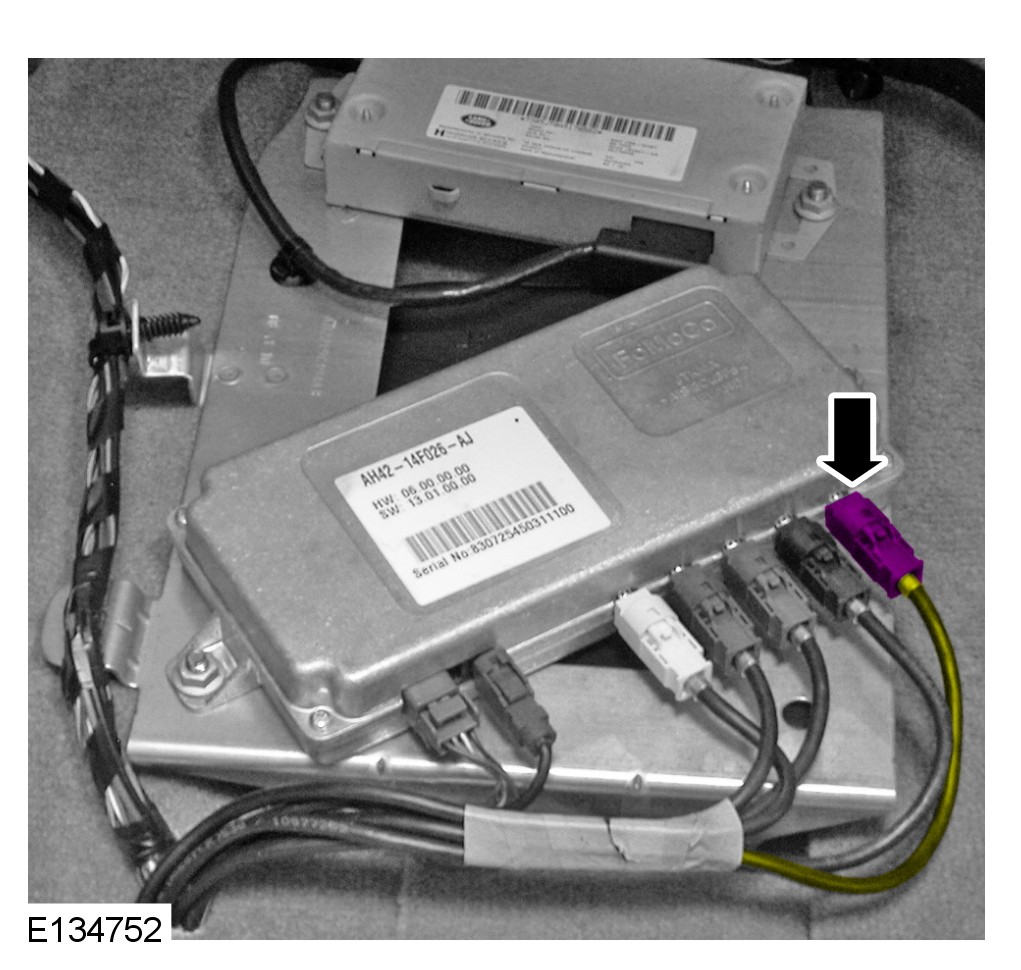

11 Disconnect the 2 electrical connectors.
- Release the 3 clips.

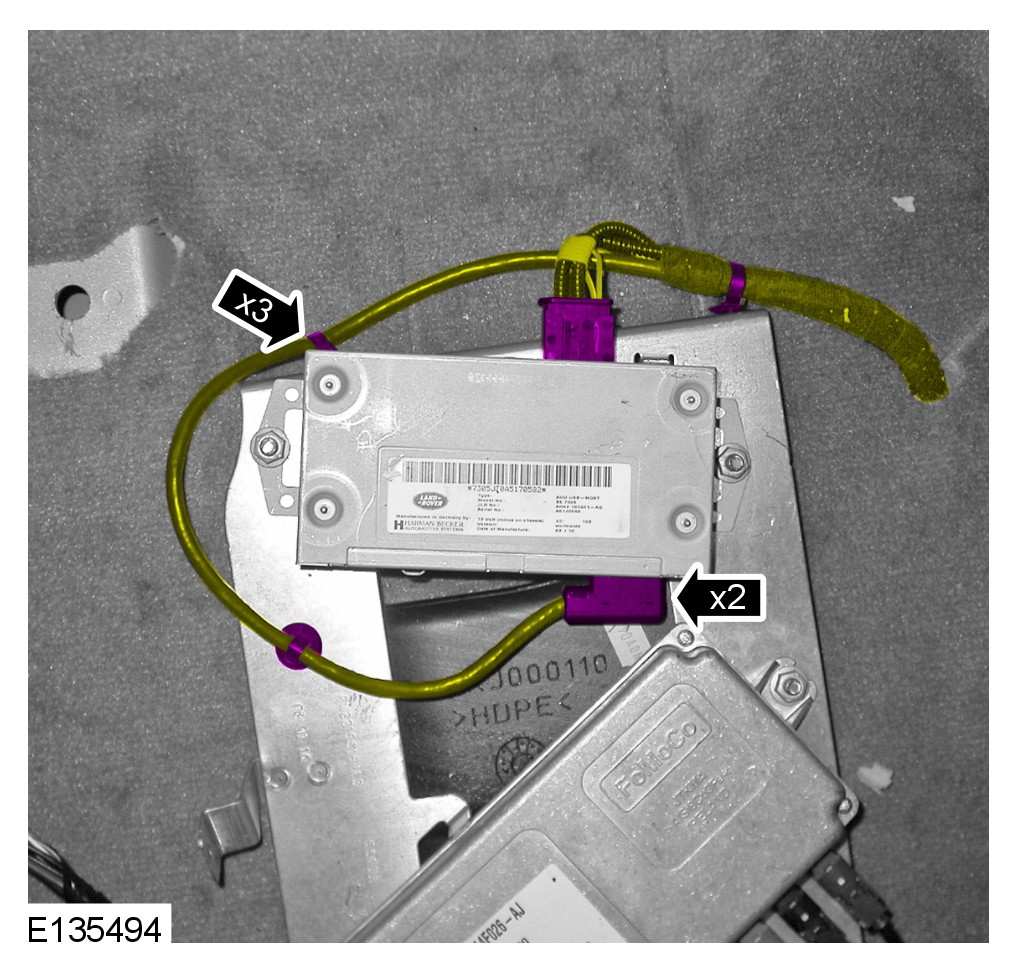

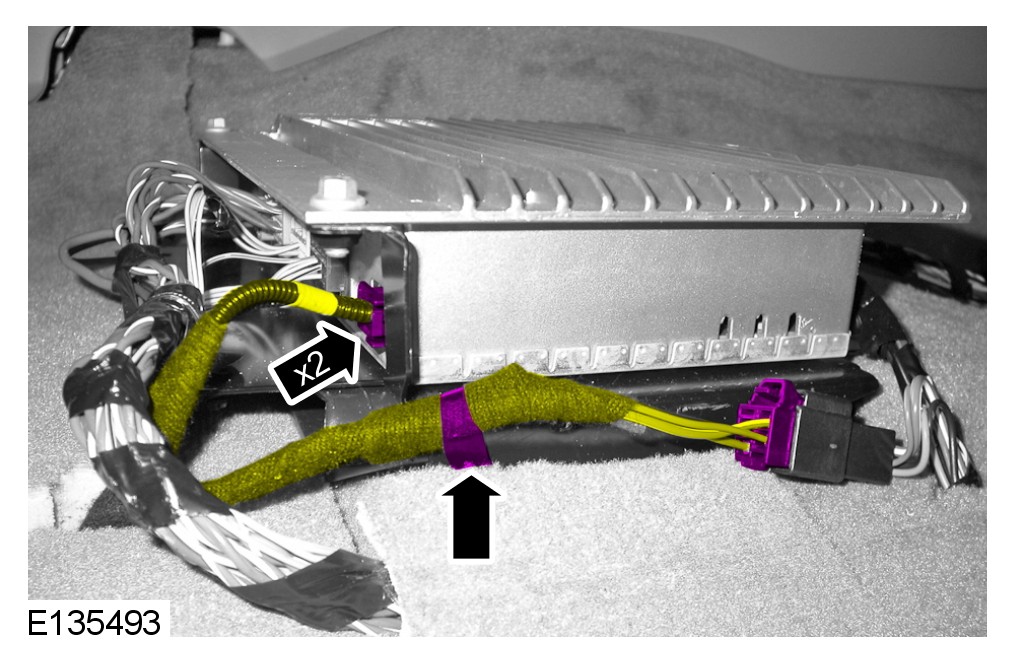

12 Disconnect the 2 electrical connectors.
- Release the clip.

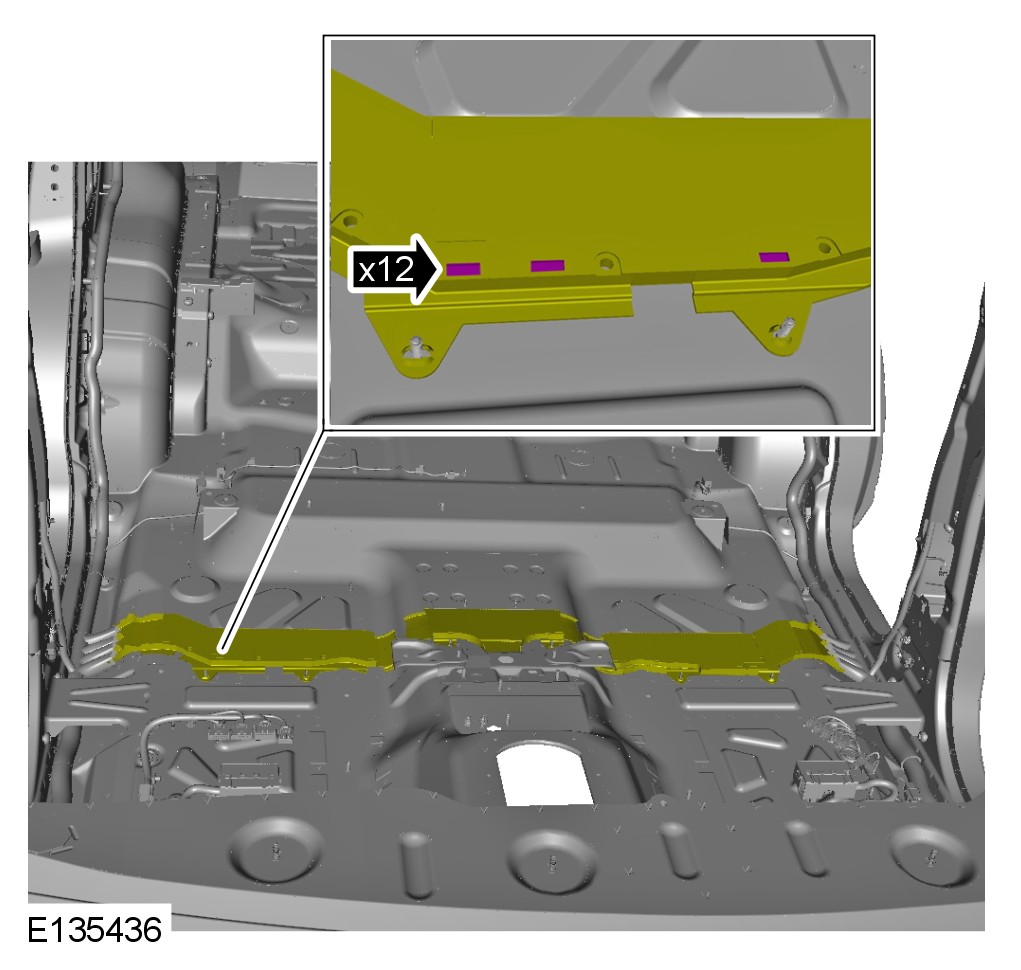

13 Release the wiring harness cover.
- Reposition the floor covering for access.
- Using a suitable tool, carefully cut though the wiring harness cover retaining tape.
- Release the 12 clips.





14
NOTE:
Door shown removed for clarity.
NOTE:
Left-hand shown, right-hand similar.
Release the gaiter.





15
NOTE:
Left-hand shown, right-hand similar.
Remove the wiring harness cover.
- Release the 4 clips.





16
NOTE:
Left-hand shown, right-hand similar.
Disconnect the electrical connector.
- Release the electrical connector bracket.
- Release the 6 clips.





17 Disconnect the electrical connector.

Installation





1
CAUTION: Make sure that the camera overlay wiring harness is not bent excessively during this procedure. Failure to follow this instruction may result in damage to the harness.
Install the camera overlay wiring harness
2
CAUTION: Make sure that excessive force is not used when installing the tie straps to the wiring harness. Failure to follow this instruction may result in damage to the vehicle.
Carefully feed the camera overlay wiring harness along the main body wiring harness from the camera module to the RH A-pillar.
- Using suitable tie straps, secure the camera overlay wiring harness to the main body wiring harness.




3
NOTE:
Left-hand shown, right-hand similar.
Connect the electrical connector.




4
NOTE:
Left-hand shown, right-hand similar.
Install the wiring harness cover.
- Secure the 4 clips.




5
NOTE:
Left-hand shown, right-hand similar.
Install the gaiter.




6
NOTE:
Left-hand shown, right-hand similar.
Secure the bracket.
- Secure the 6 clips.




7 Install the dynamic response module.
- Connect the 2 electrical connectors.
- Tighten the 2 bolts.




8 Secure the wiring harness cover.
- Secure the 12 clips.
- Re-apply suitable tape to the wiring harness cover in the positions previously secured.
- Install the floor covering.




9 Connect the 2 electrical connectors.
- Secure the 3 clips.





10 Connect the 2 electrical connectors.
- Secure the clip.





11 Connect the electrical connector.

12 Install the accelerator pedal assembly. For additional information, refer to Accelerator Pedal

13 Install the RH cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel





14 Install the LH wiring harness cover.
- Secure the 3 clips.

15 Repeat procedure for the other side.

16 Install the LH scuff plate trim panel. For additional information, refer to Scuff Plate Trim Panel Service and Repair

17 Repeat procedure for the other side.

18 Install the floor console. For additional information, refer to Floor Console Floor Console

19 Install the LH front seat. For additional information, refer to Front Seat Front Seat

20 Repeat procedure for the other side.
