Exterior Mirror

Exterior Mirror

Removal

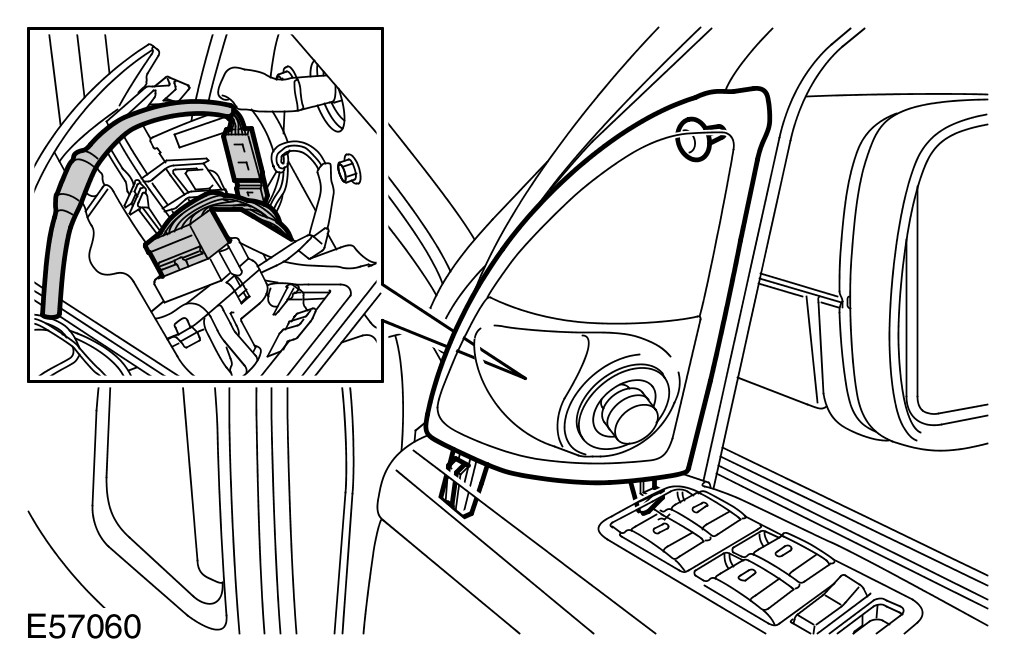

1 Remove the cheater panel.
- Carefully release the 3 clips.
- Disconnect the 2 electrical connectors.

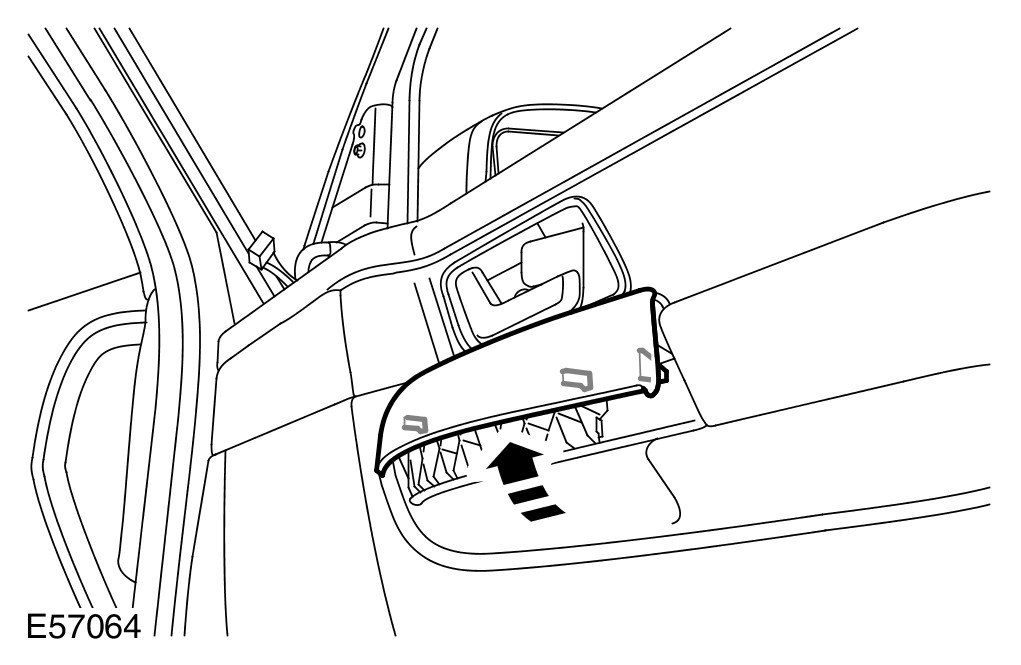

2 Starting at the lower edge, carefully remove the grab handle cover.
- Release the 2 clips.




3 Release the forward upper corner of the front door trim panel.
- Release the screw cover.
- Remove the 2 screws.
- Release the 5 clips.




4 Remove the exterior rear view mirror.
- Disconnect the electrical connectors.
- Remove the 3 bolts.

Installation
1 Install the exterior rear view mirror.
- Tighten the bolts to 6 Nm (4 lb.ft).
- Connect the electrical connectors.
2 Secure the front door trim panel.
- Secure the clips.
- Install the screws.
- Install the screw cover.
- Install the grab handle cover.
3 Install the grab handle cover.
4 Install the cheater panel.
- Connect the electrical connectors.
- Secure the clips.
