Range Rover Sport (LS) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2527T - C2641R
>>

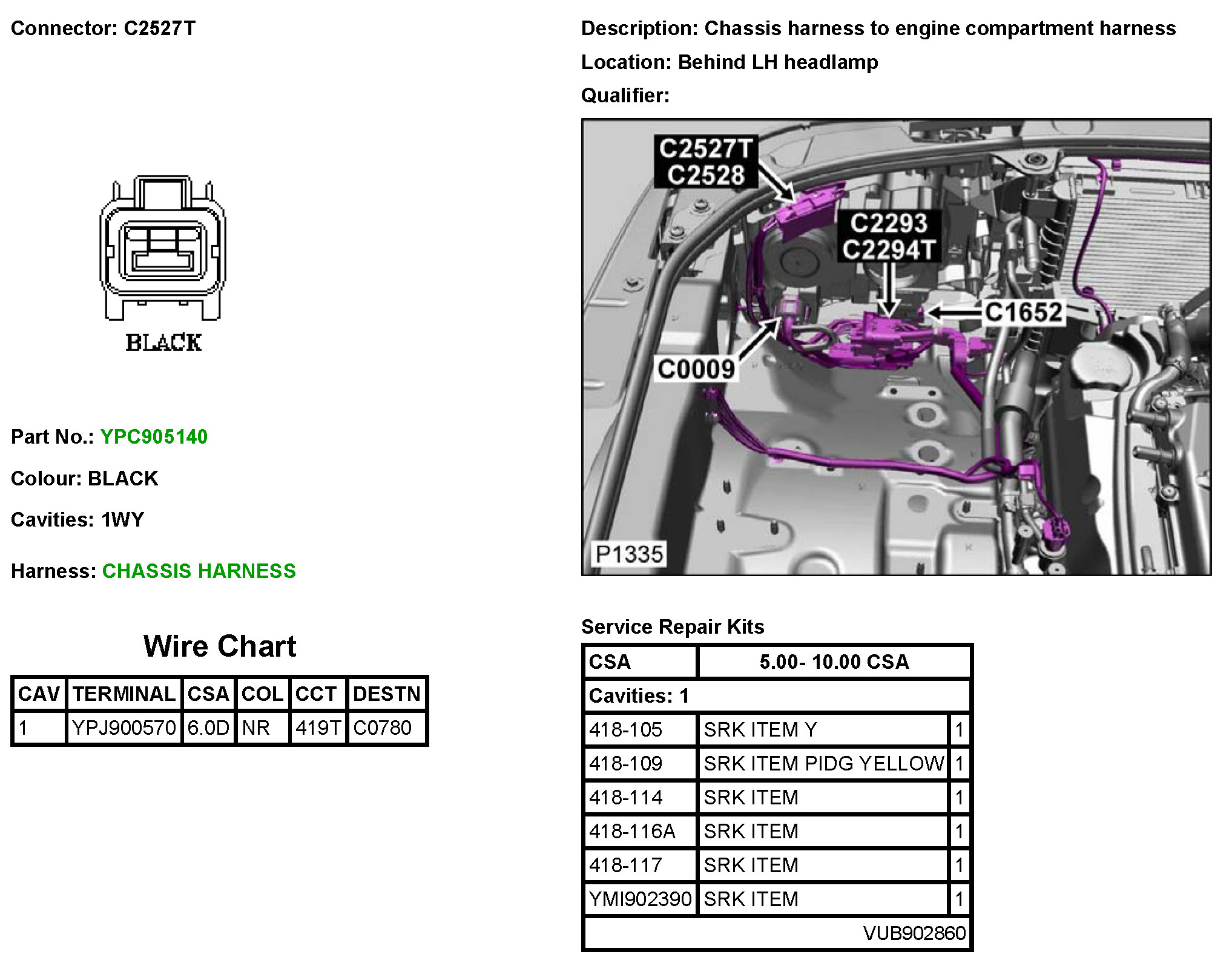

C2527T
C2527T
C2527T
