Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2012
>>
Range Rover Sport (LS) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cabin Temperature Sensor / Switch
>>

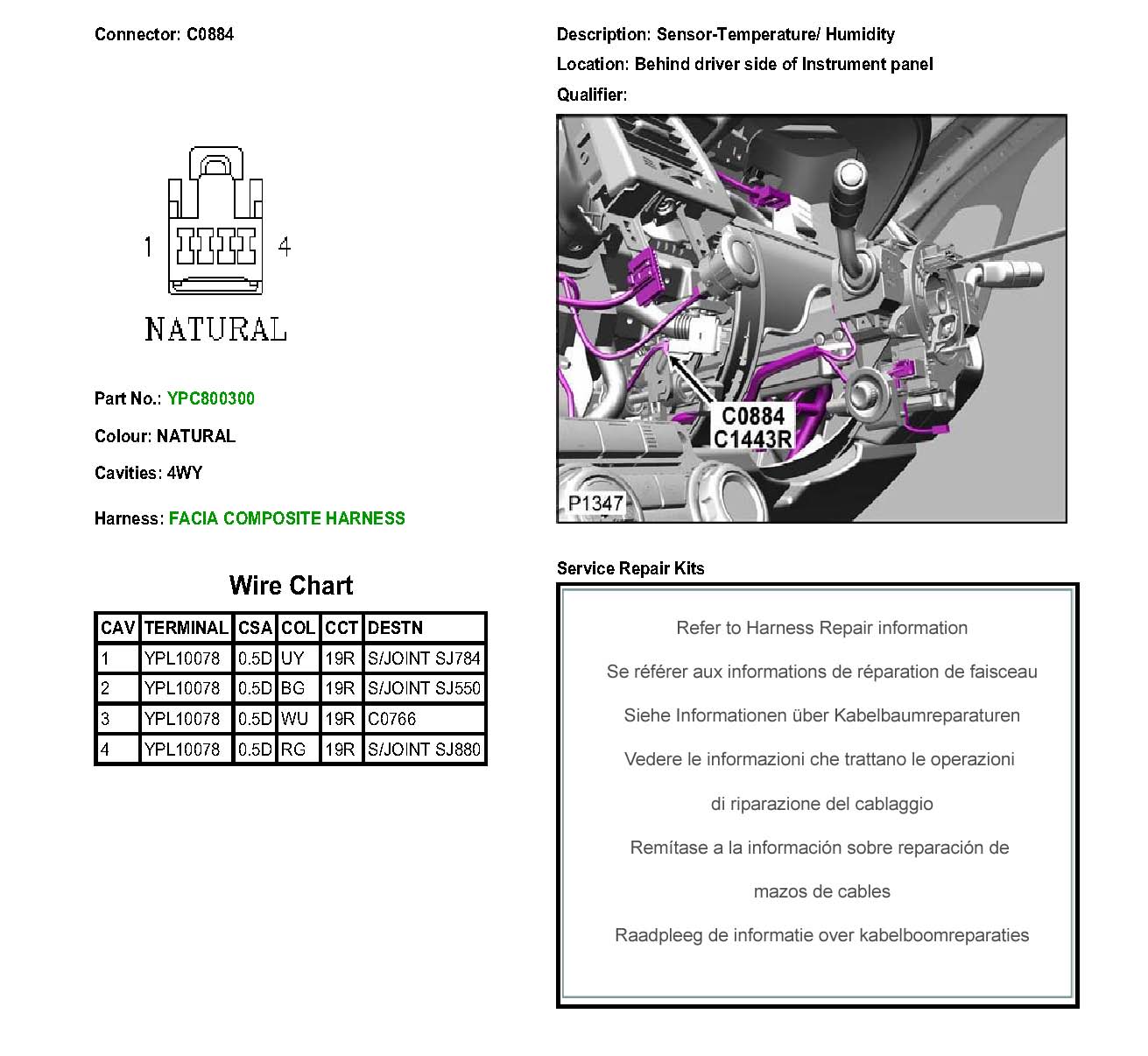

C0884 Sensor-Temperature/Humidity
C0884 Sensor-Temperature/Humidity
C0884
