Land Rover
>>
2012
>>
Range Rover Sport (LS) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
>>

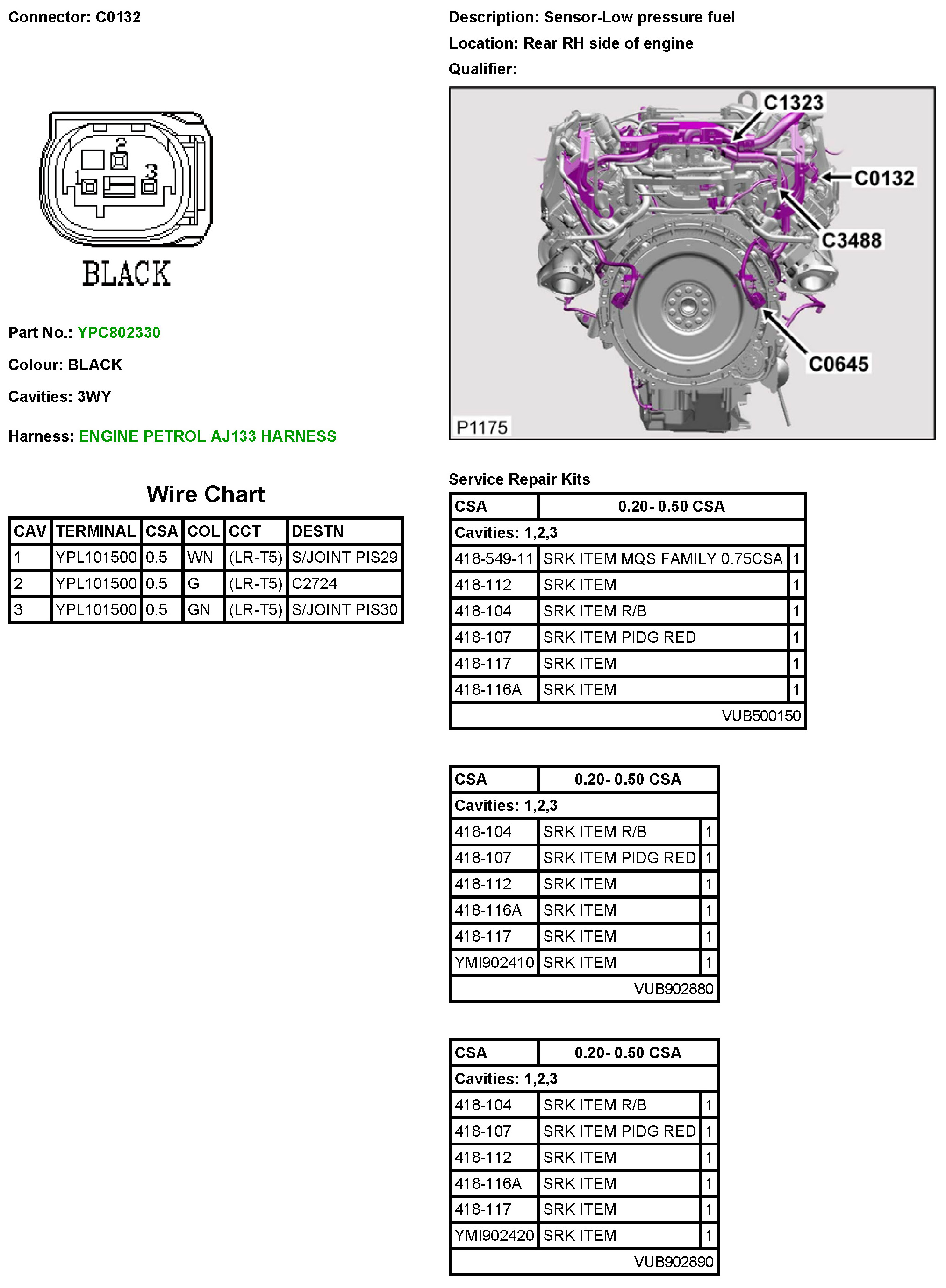

C0132 Sensor - Low Pressure Fuel
C0132 Sensor - Low Pressure Fuel
C0132
