Diagrams
>>
Connector Views
>>
Parking Assist Control Module
>>

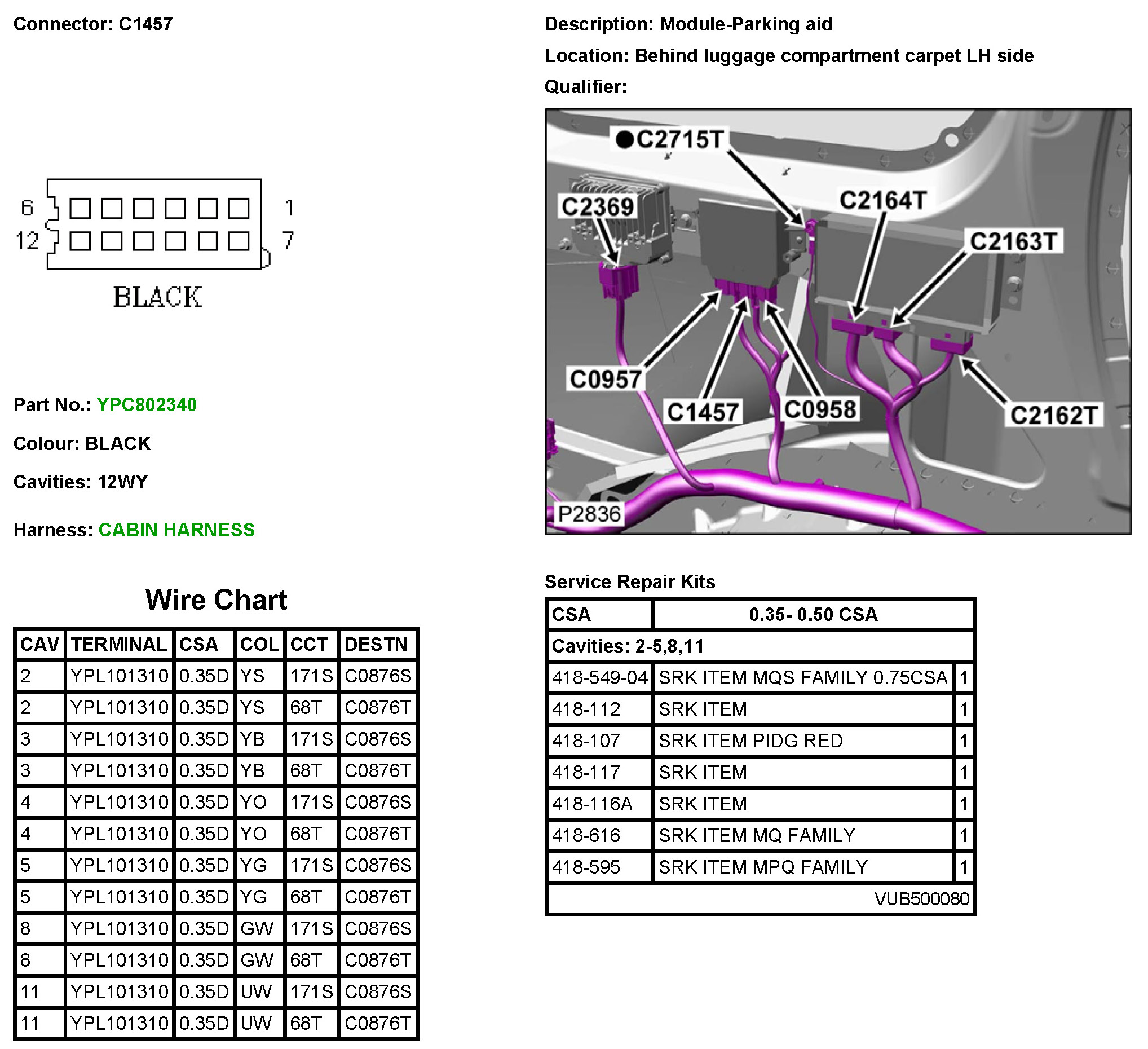

C1457 Module-Parking Aid
C1457 Module-Parking Aid
C1457
