Range Rover Sport (LS) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

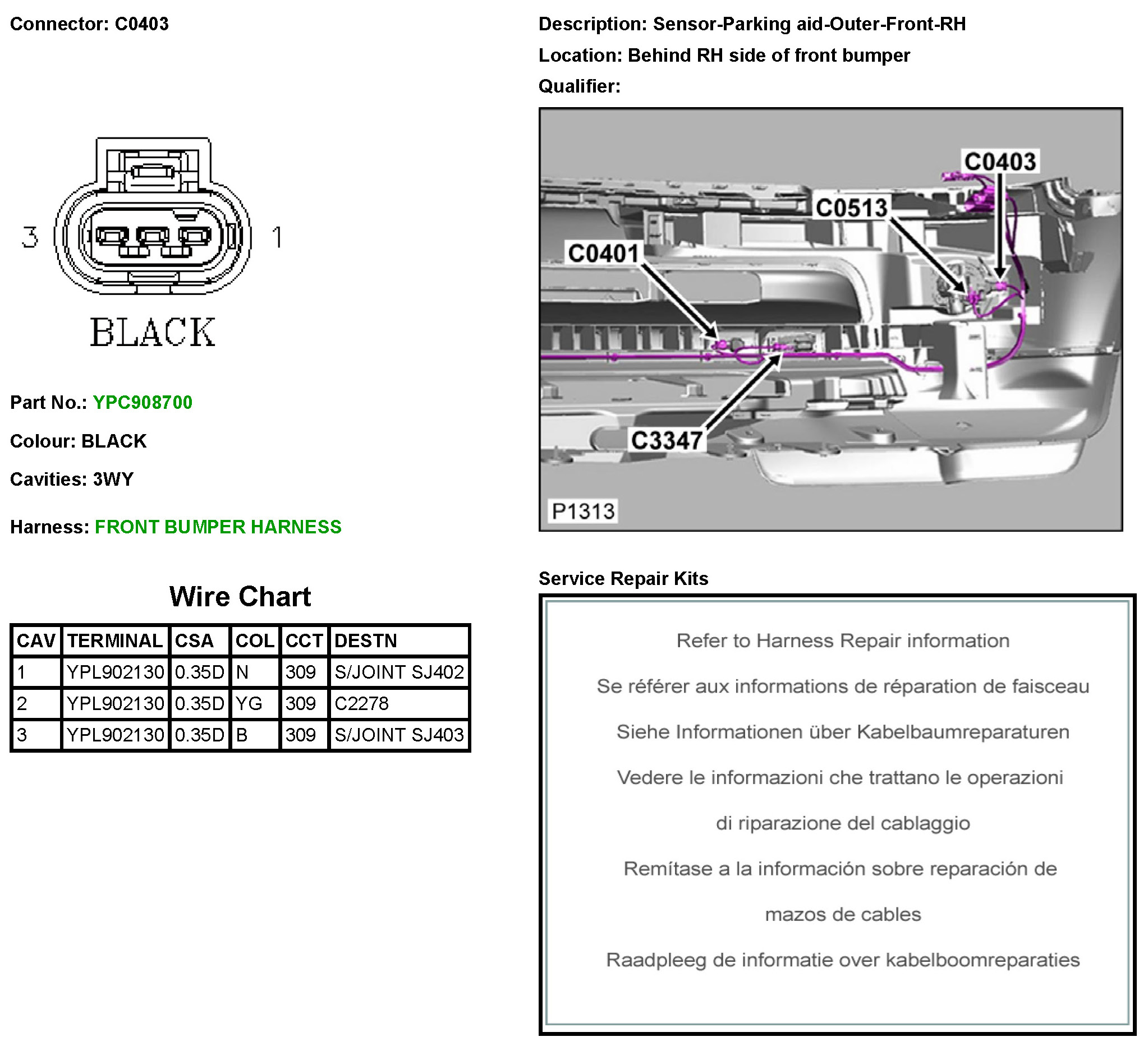

C0403 Sensor-Parking Aid-Outer-Front-RH
C0403 Sensor-Parking Aid-Outer-Front-RH
C0403
