Range Rover Sport (LS) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column Lock
>>

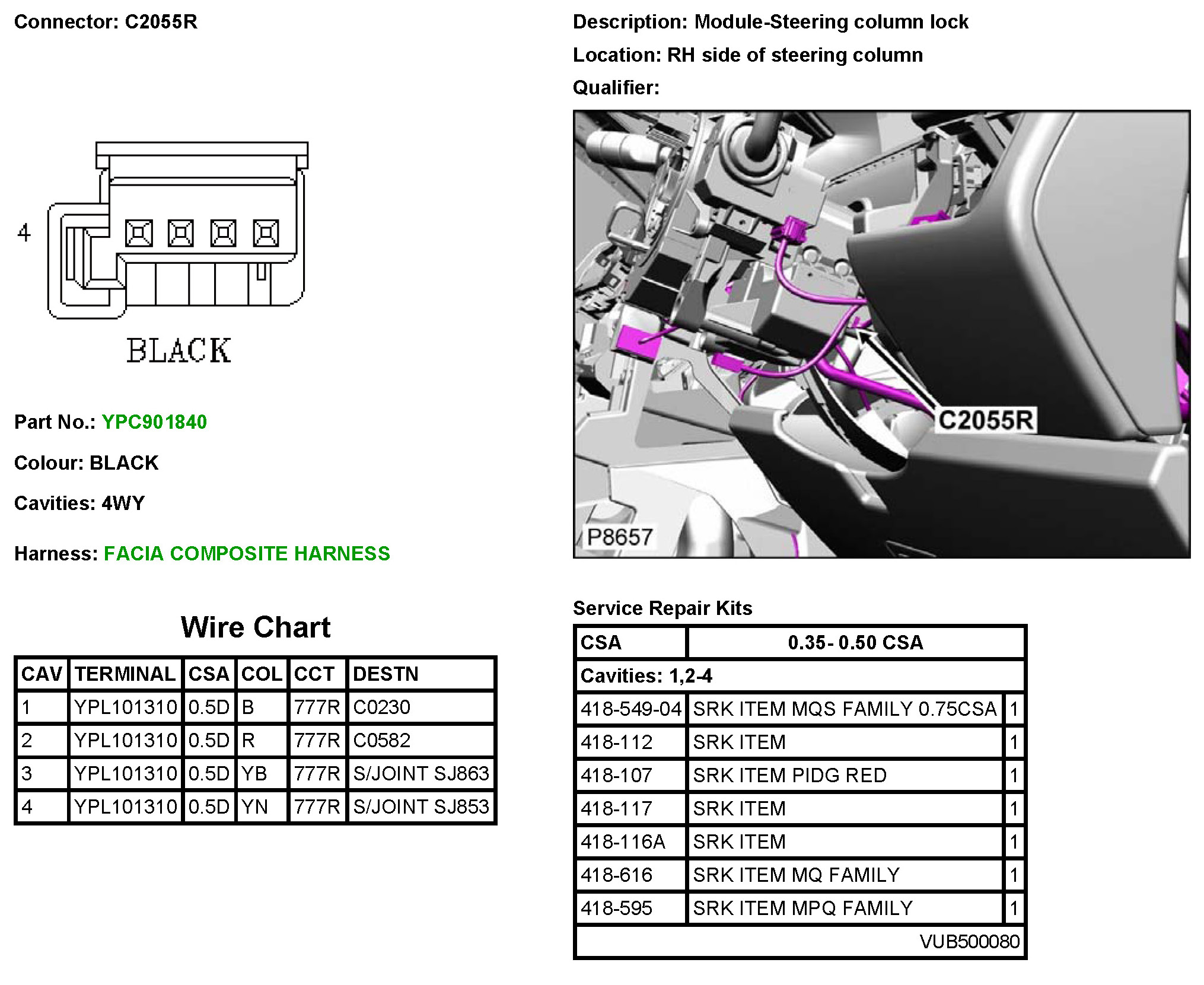

C2055R Module-Steering Column Lock
C2055R Module-Steering Column Lock
C2055R
