Range Rover Sport (LS) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

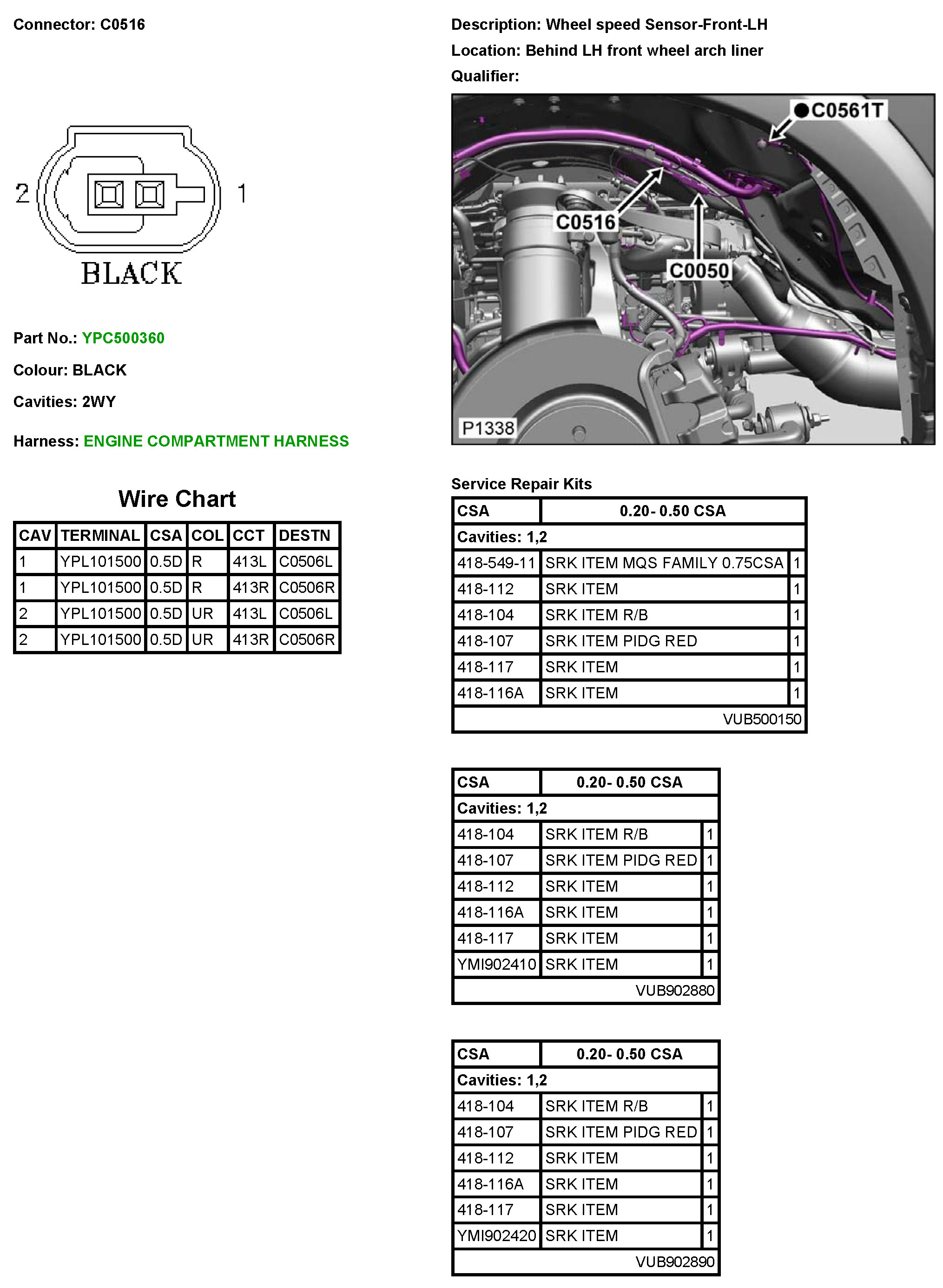

C0516 Wheel Speed Sensor Front LH
C0516 Wheel Speed Sensor Front LH
C0516
