Horn: Description and Operation

Horn









GENERAL

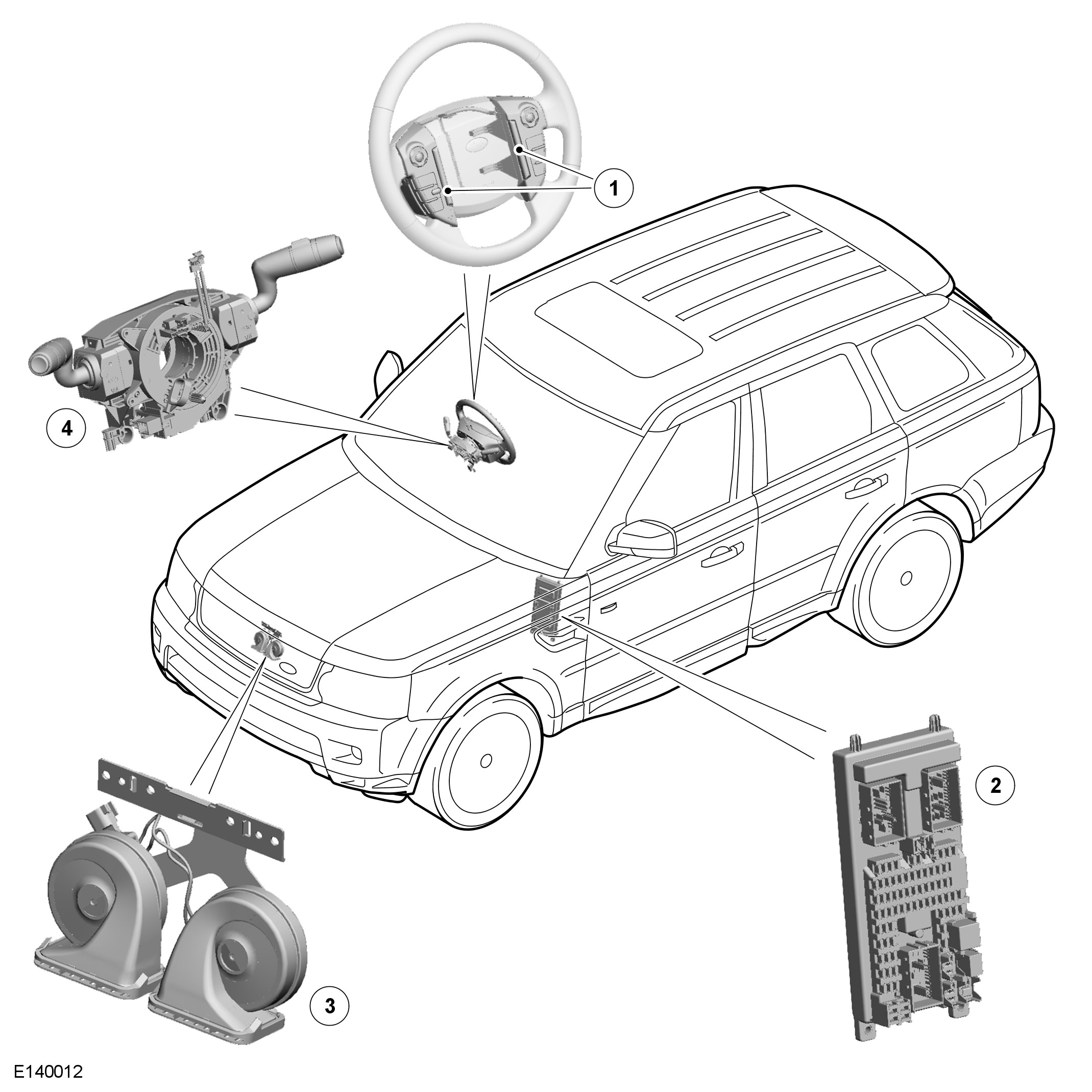

Two horns are fitted to the vehicle; a high tone and a low tone. The horns are mounted on bracket, which is attached centrally to the front end carrier assembly.
The horns are operated by pressing one of the two horn switches, located on each side of the driver airbag, on the steering wheel.
The horns are also used by the vehicle alarm system. When the alarm system requires the horns to operate, the Central Junction Box (CJB) provides a ground, closing the relay contact which in turn supplies battery voltage to operate the horns. For additional information, refer to Anti-Theft - Active Anti-Theft - Active
The horn circuit is permanently connected to battery voltage and therefore the horns can be operated at any time, irrespective of ignition switch position.
The horns are controlled by the CJB.
