Tail Lamp: Service and Repair

Rear Lamp Assembly

Removal
1 Open the liftgate.

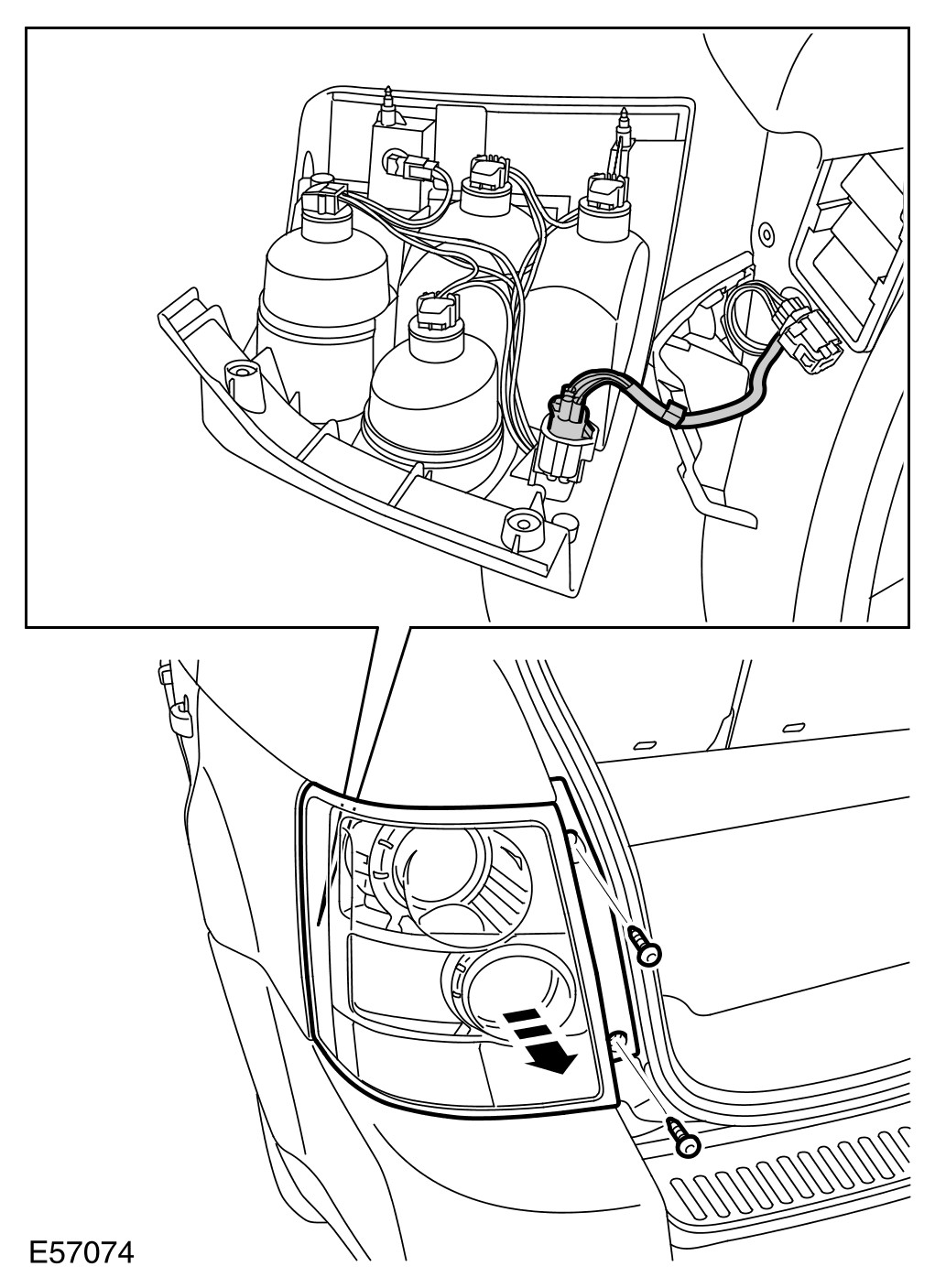

2 Release the rear lamp assembly.
- Remove the 2 screws.
- Release the 2 clips.




3 Remove the rear lamp assembly.
- Disconnect the electrical connector.
4
NOTE:
Do not disassemble further if the component is removed for access only.
NOTE:
Note the fitted position.
Remove the wiring harness.
- Release the 5 bulb holders.
- Release the electrical connector.




5 Remove the 5 bulbs.

Installation
1 Install the bulbs.
2 Install the wiring harness.
- Install the bulb holders.
- Install the electrical connector.
3 Install the rear lamp assembly.
- Connect and secure the electrical connector.
- Secure the clips.
- Tighten the screws.
4 Close the liftgate.
