Rear Drive Axle/Differential

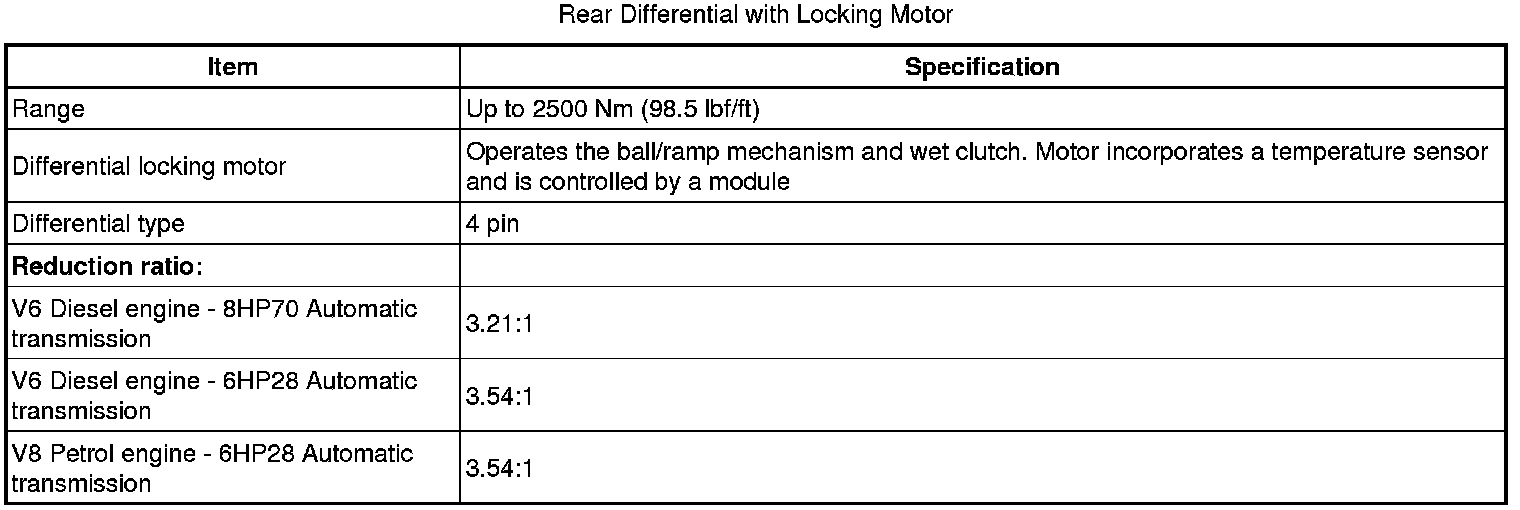

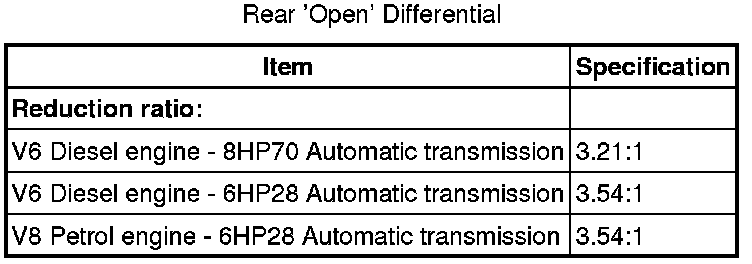

Specifications

NOTE:
Do not use any lubricant other than that specified

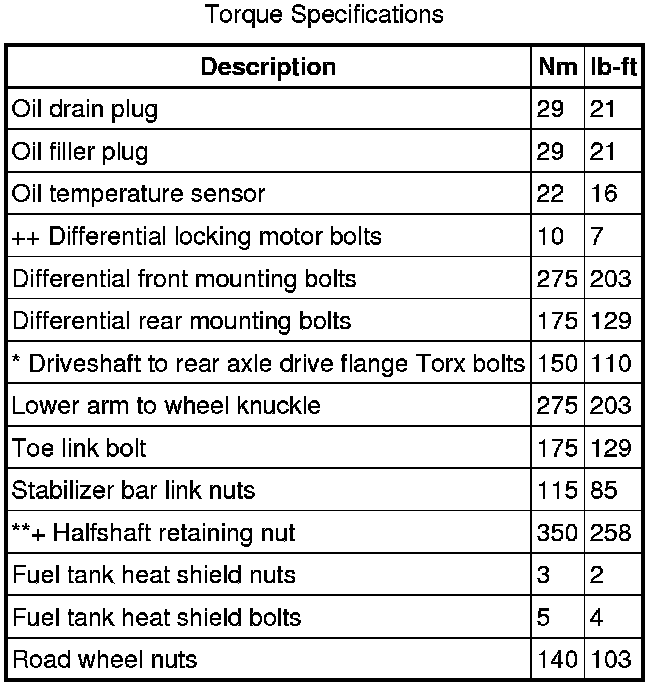

* New patchlock torx bolts must be installed
** New nut must be installed
+ Stake nut on completion of tightening operation
++ Apply sealant to flange of locking motor
