System Specifications
Specifications

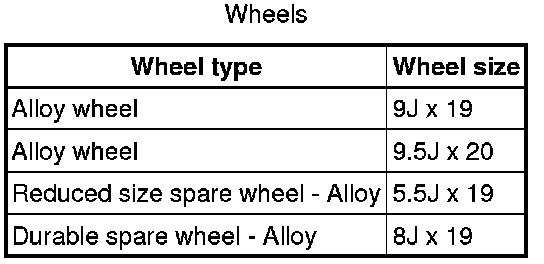

CAUTION: Reduced Size Spare wheel to be fitted to V6 Diesel and non Supercharged vehicles only.
CAUTION: Durable Spare may be fitted to all derivatives and is fitted as standard to all V8 Diesel and Supercharged Vehicles
CAUTION: Full size spare is available on vehicles fitted with 19" wheels only.
CAUTION: With either 'Reduced Size' or 'Durable' spare wheel installed, do not exceed 50 mph (80 kph) and replace with standard size wheel at earliest opportunity.
CAUTION: Do not use power tools when operating the spare wheel winch, raise and lower winch manually using hand tools only.

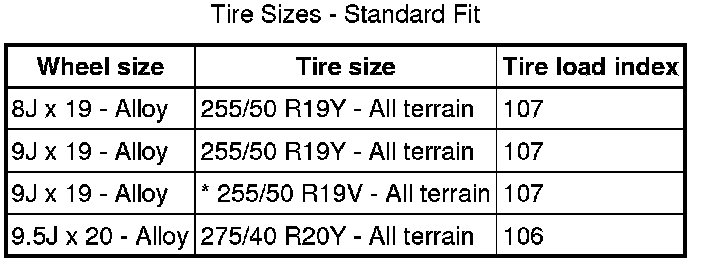

CAUTION: * Fitted to NAS/Gulf/Brazil non Supercharged Vehicles Only
CAUTION: Inner tubes must not be installed with any of these tires.
CAUTION: * The Reduced Section Spare must not be fitted to V8 Diesel or Supercharged vehicles

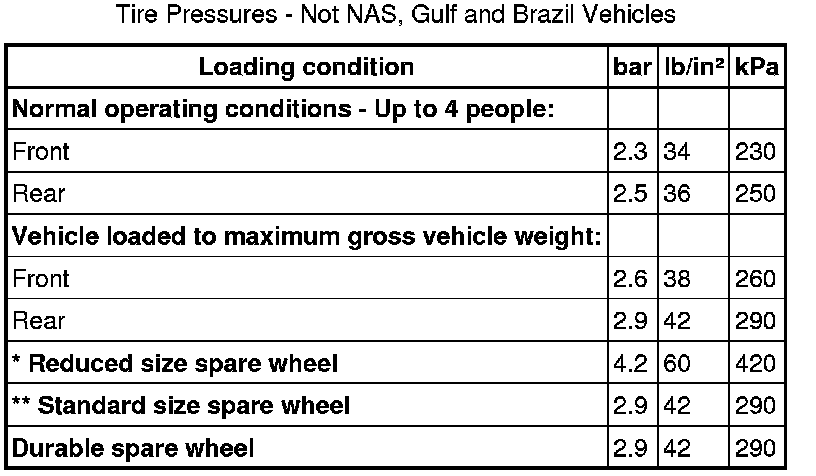

CAUTION: ** The standard size spare wheel tire should be inflated to the maximum gross vehicle weight pressure and the pressure for the front or rear wheel locations must be adjusted accordingly if the wheel is to be used under conditions other than with the vehicle loaded to maximum gross vehicle weight.
CAUTION: * The Reduced Section Spare must not be fitted to V8 Diesel or Supercharged vehicles
CAUTION: ** The standard size spare wheel tire should always be inflated to the highest loading condition pressure which must be adjusted accordingly if the wheel is to be installed to the front wheel locations.

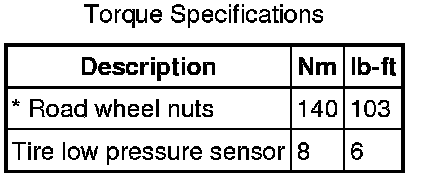

* Wheel nuts must be tightened by diagonal selection
