Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
1998
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

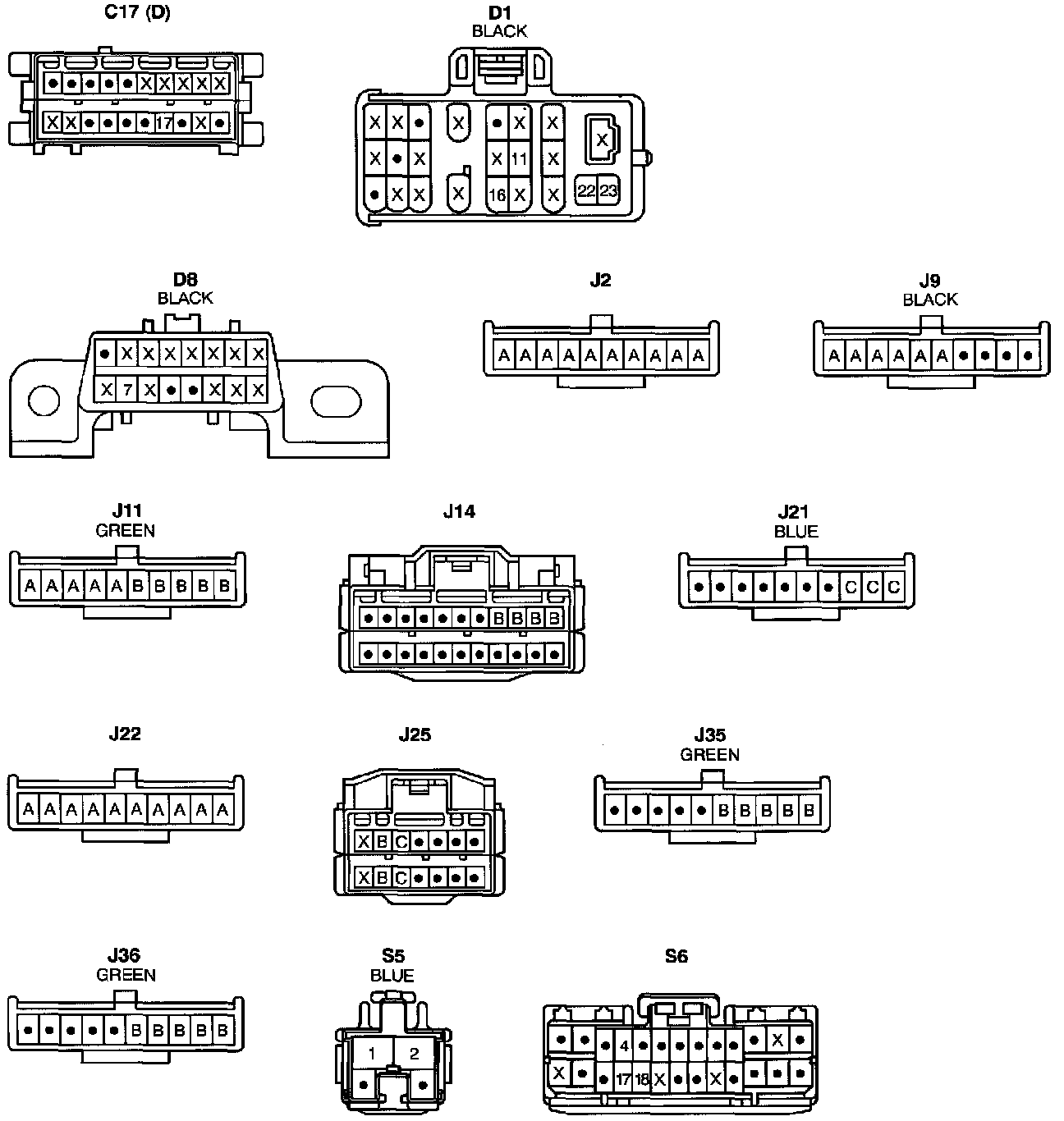

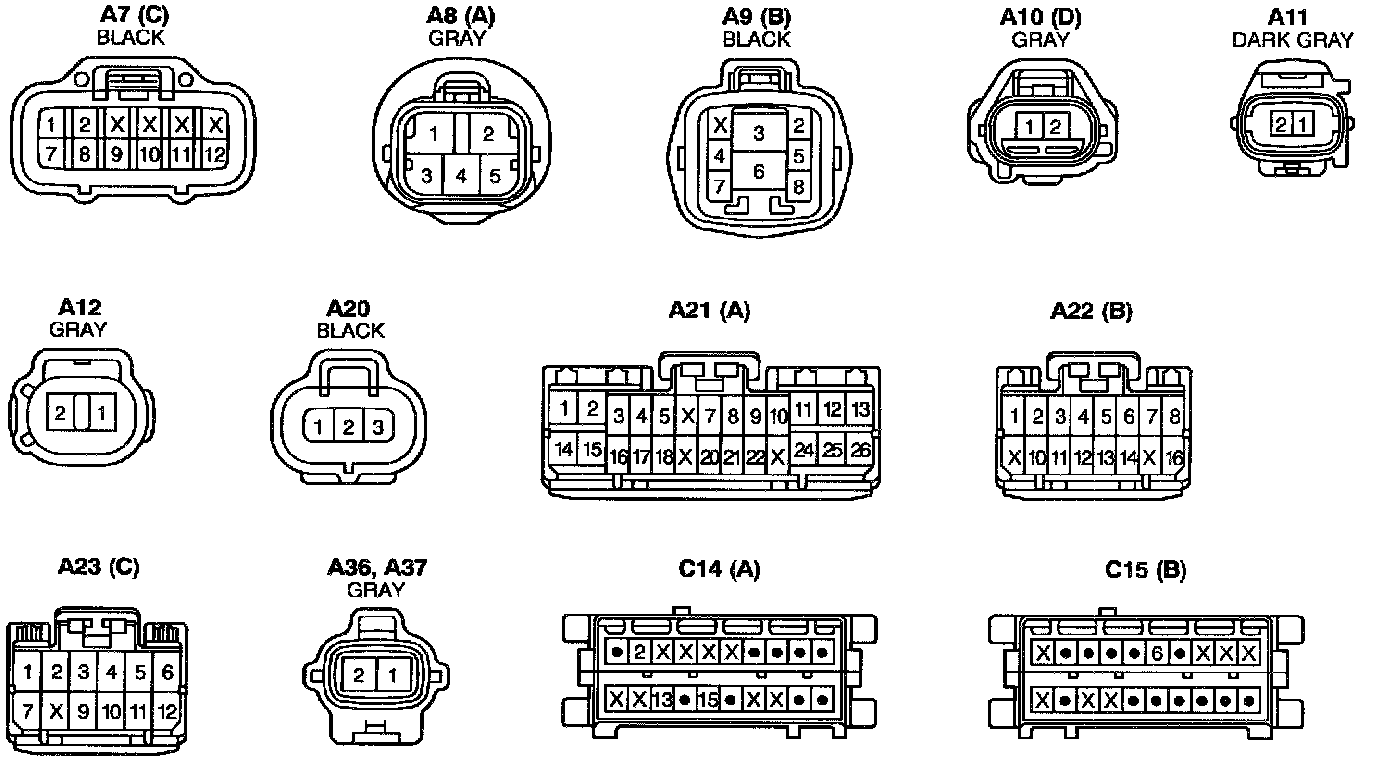

ABS Connectors:
ABS Connectors:
