Lexus Truck
>>
1998
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
System Diagram
System Diagram

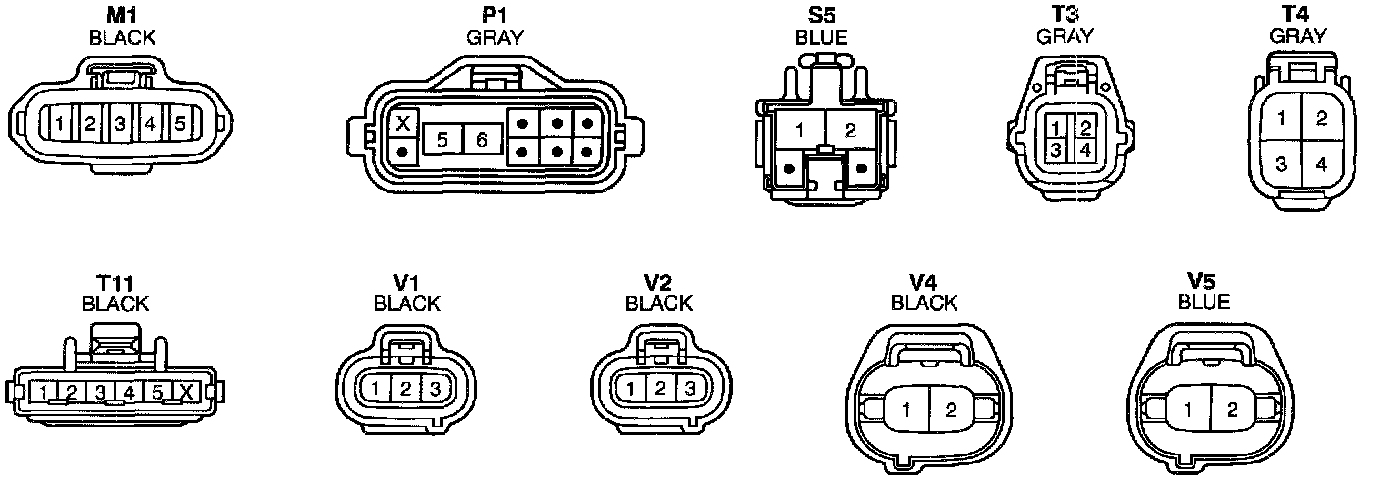

Engine Control And Engine Immobiliser System Connectors:

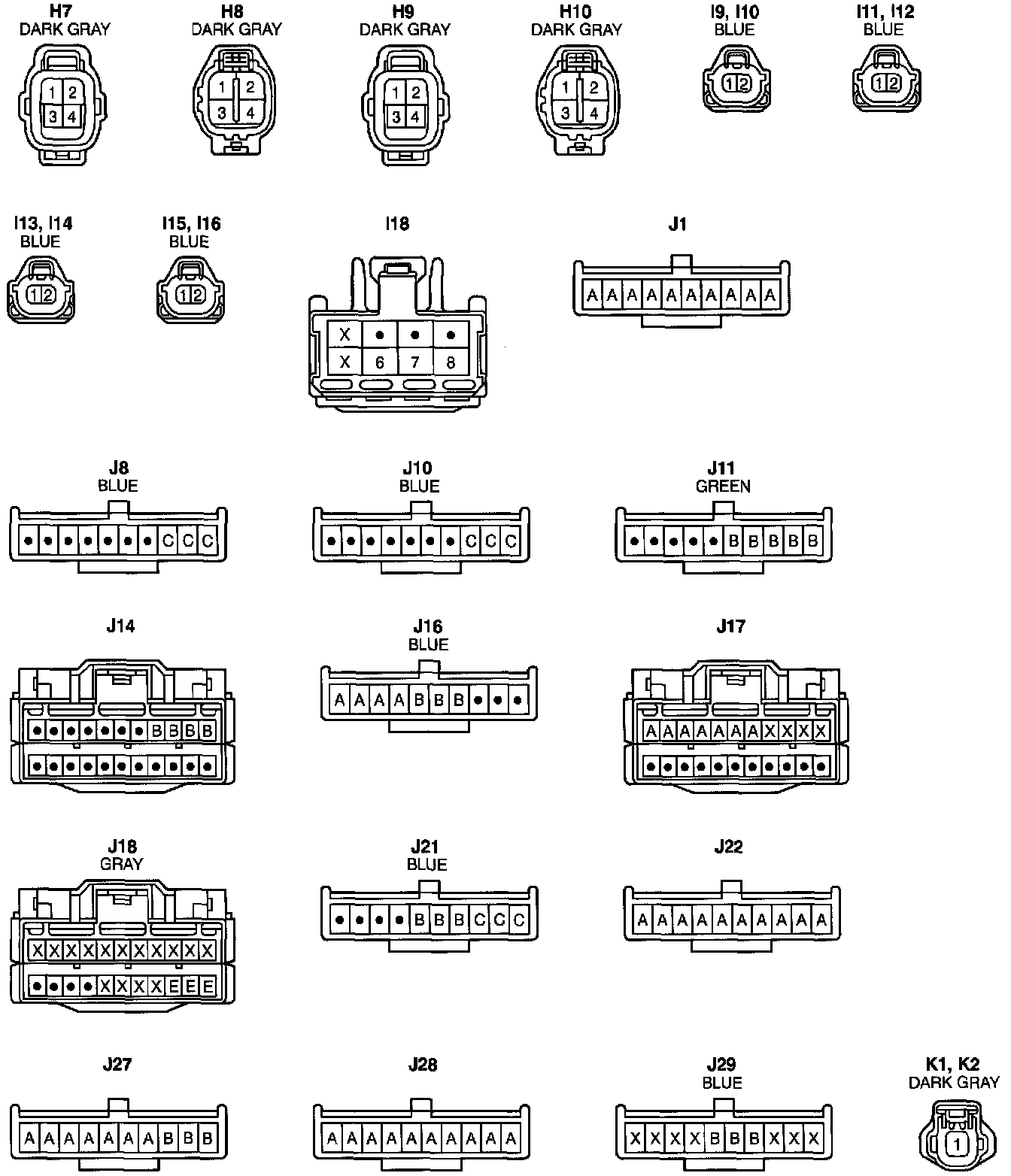

Engine Control And Engine Immobiliser System Connectors:

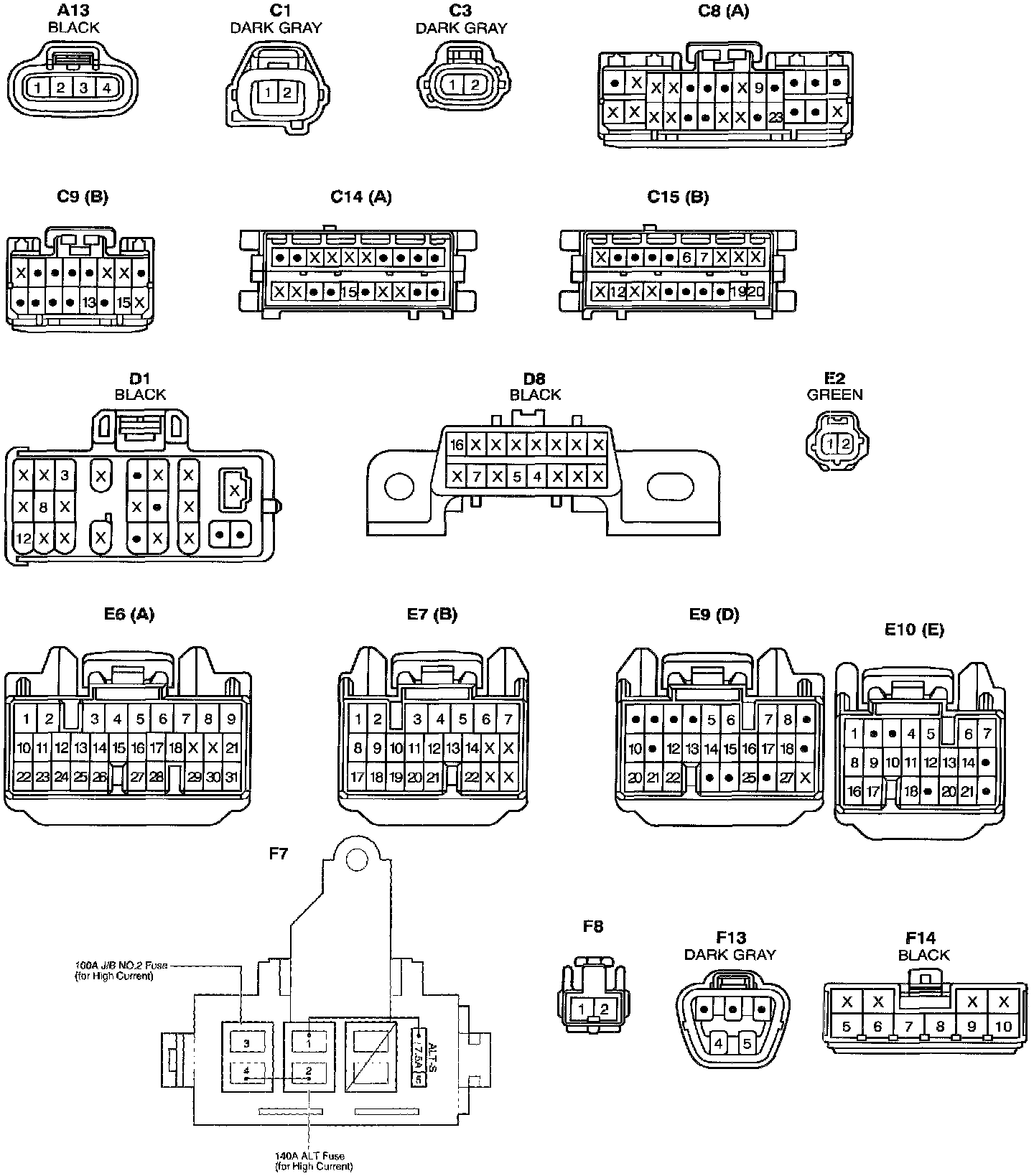

Engine Control And Engine Immobiliser System Connectors:
