Cowl Side J/B LH

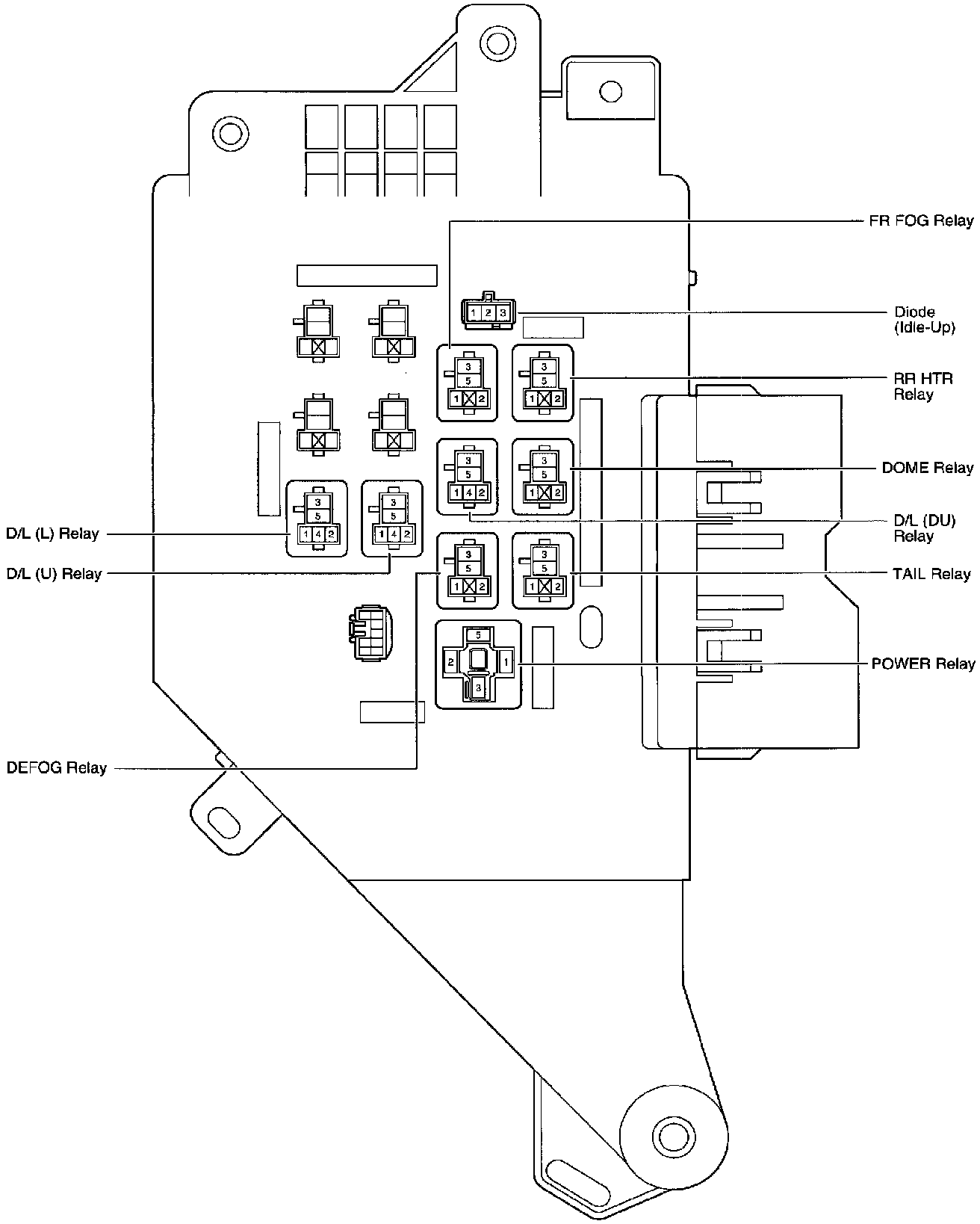

Cowl Side J/B LH - Left Kick Panel (Fig 24):

Cowl Side J/B LH - Left Kick Panel (Fig 25):

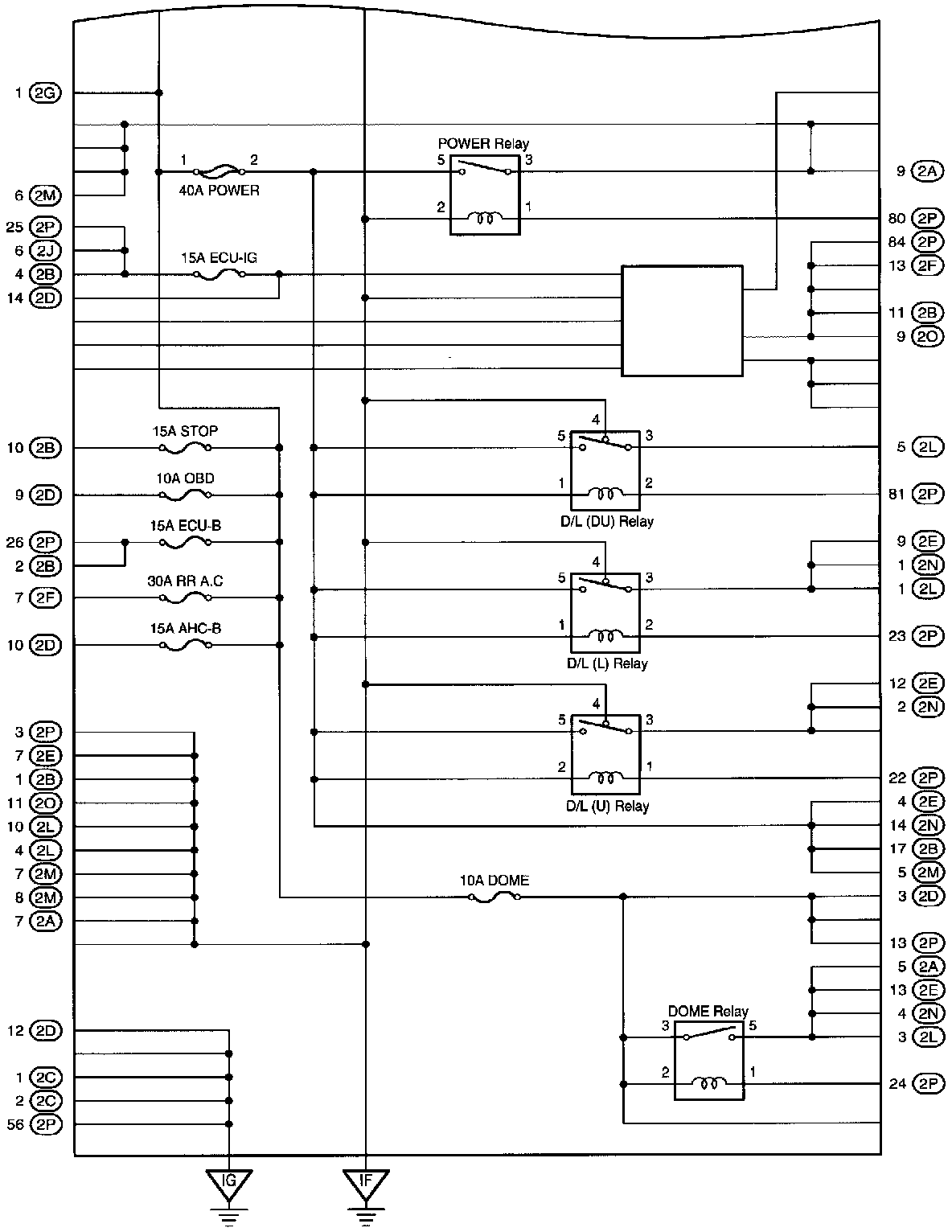

Cowl Side J/B LH Inner Circuit (Fig 27):

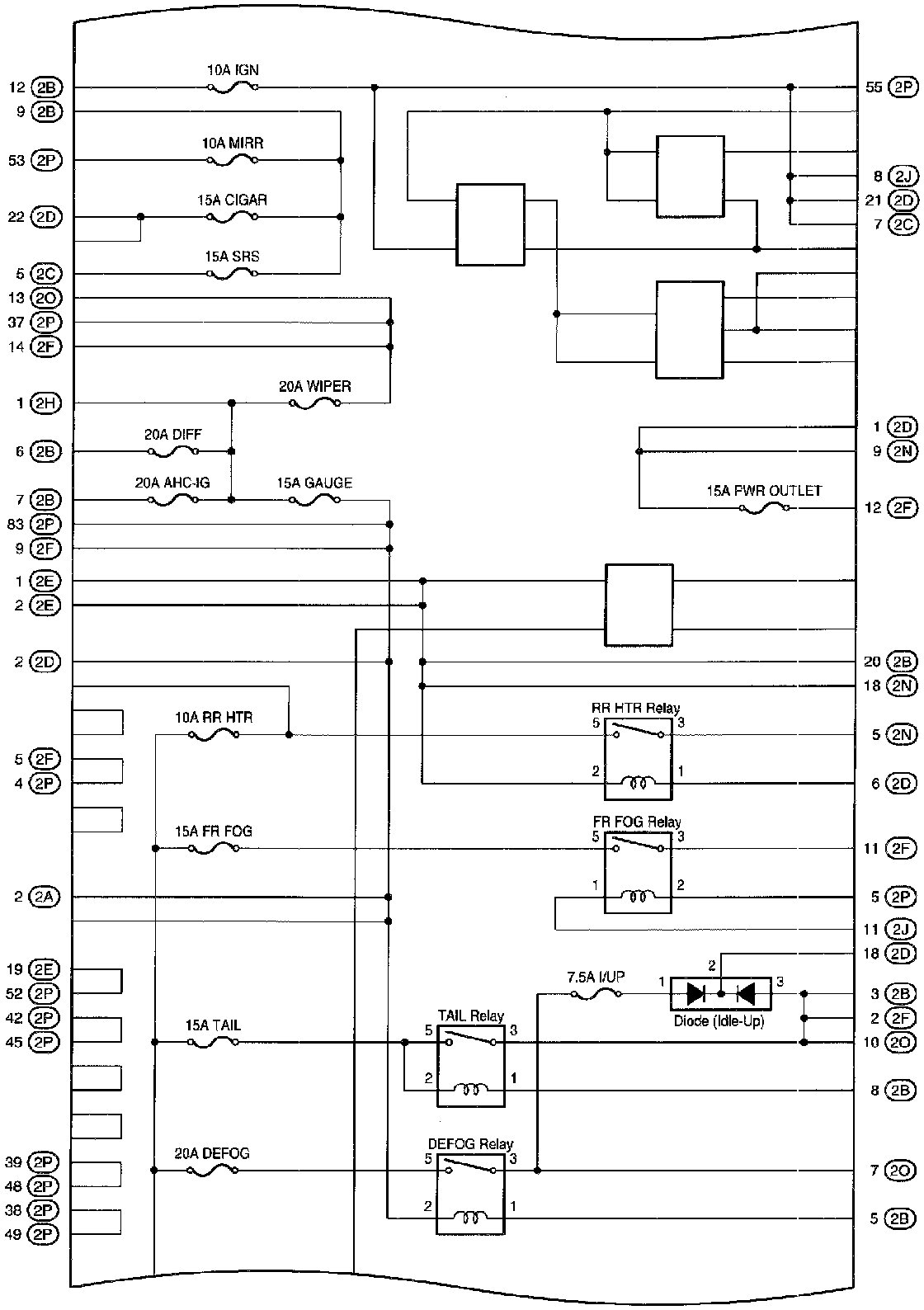

Cowl Side J/B LH Inner Circuit (Fig 28):

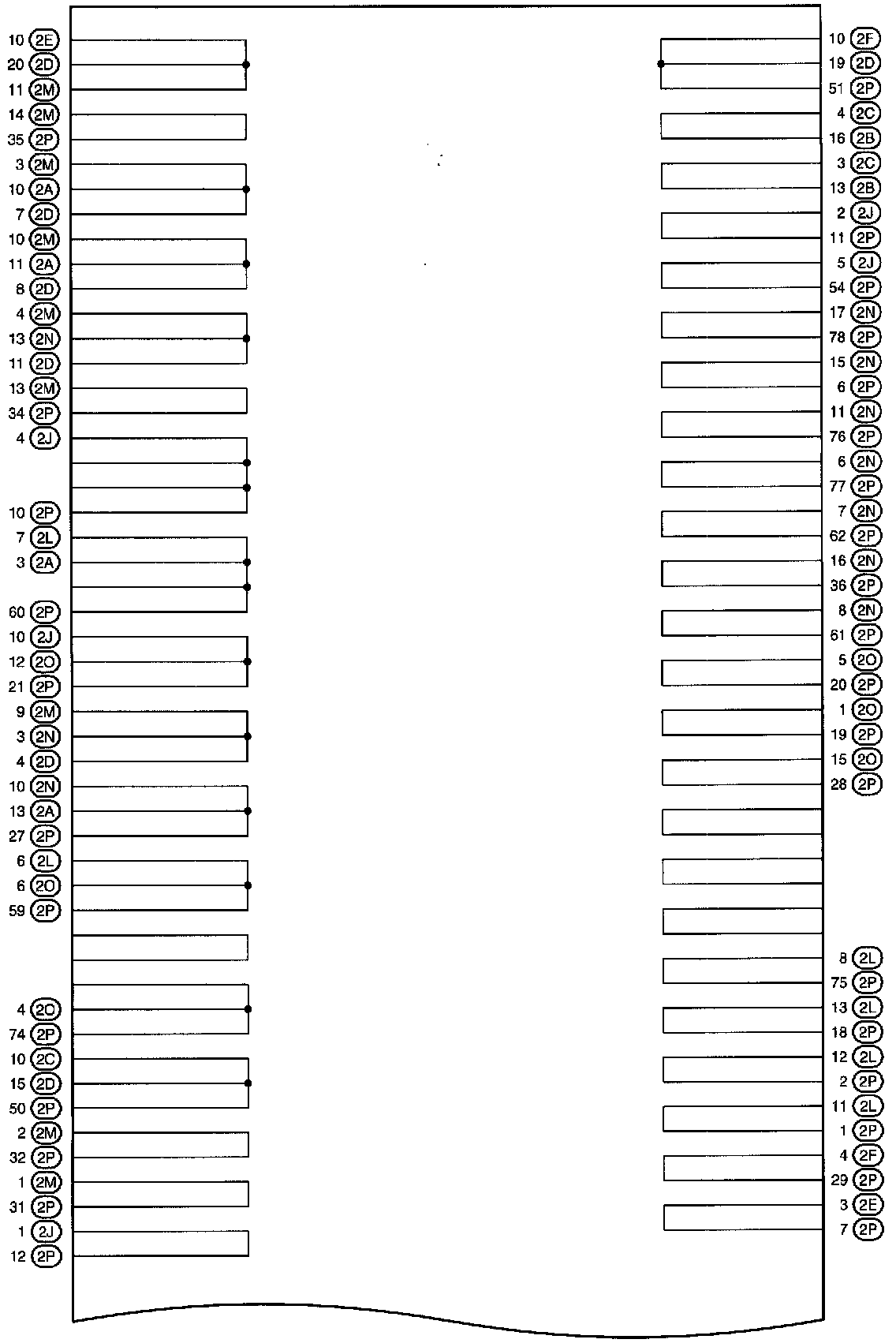

Cowl Side J/B LH Inner Circuit (Fig 29):
