Instrument Cluster / Carrier: Testing and Inspection

INSPECT COMBINATION METER CIRCUIT
Connector disconnected:

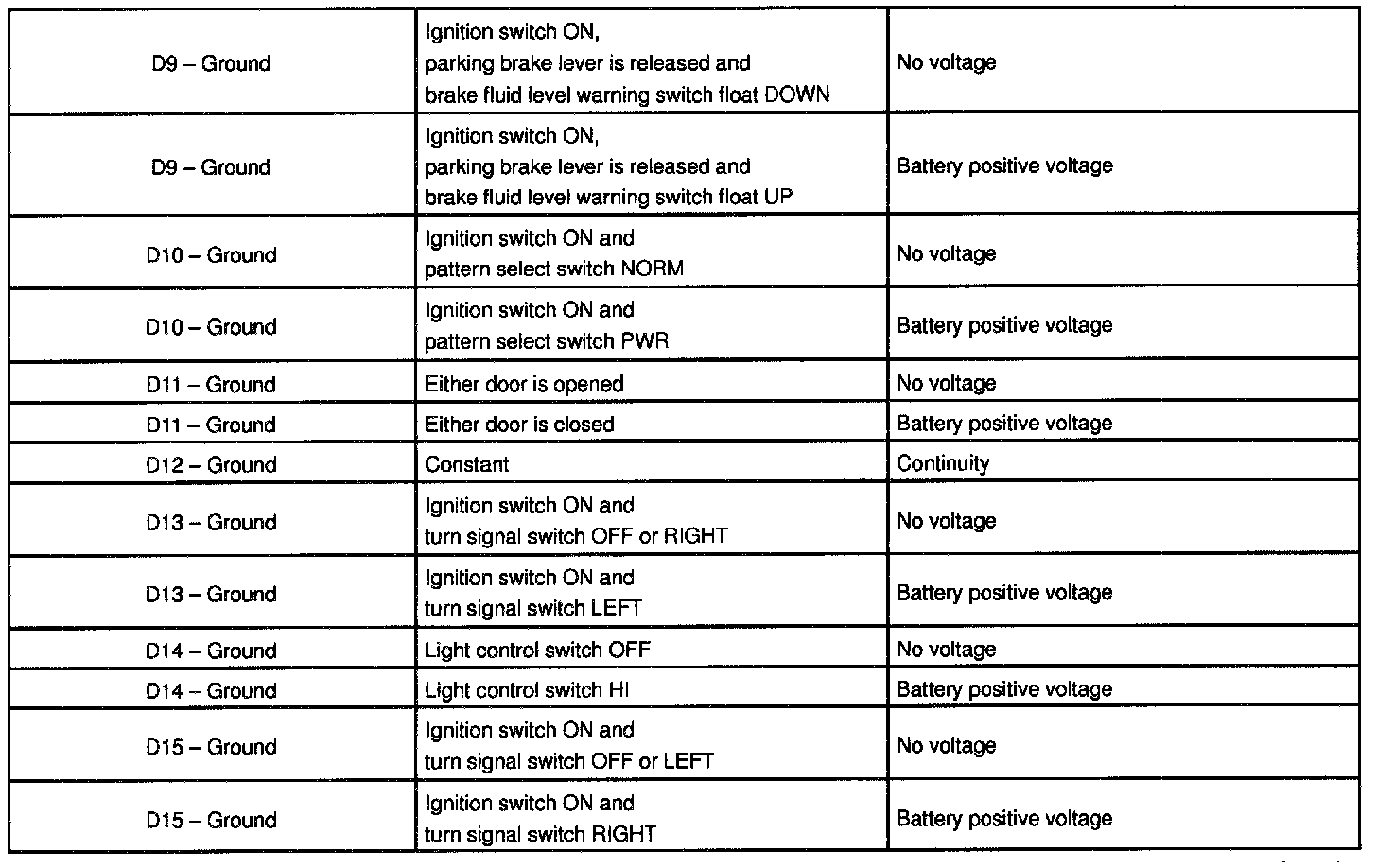

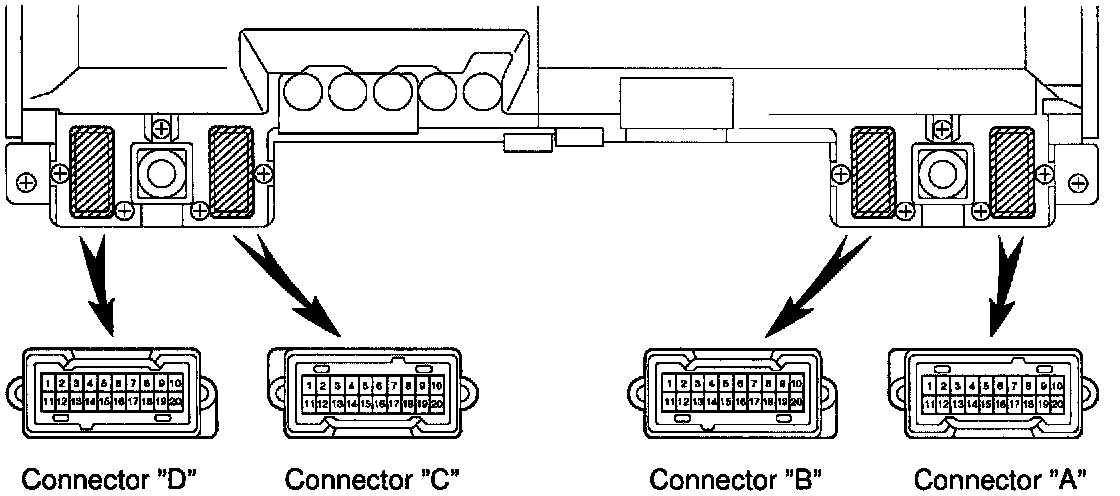

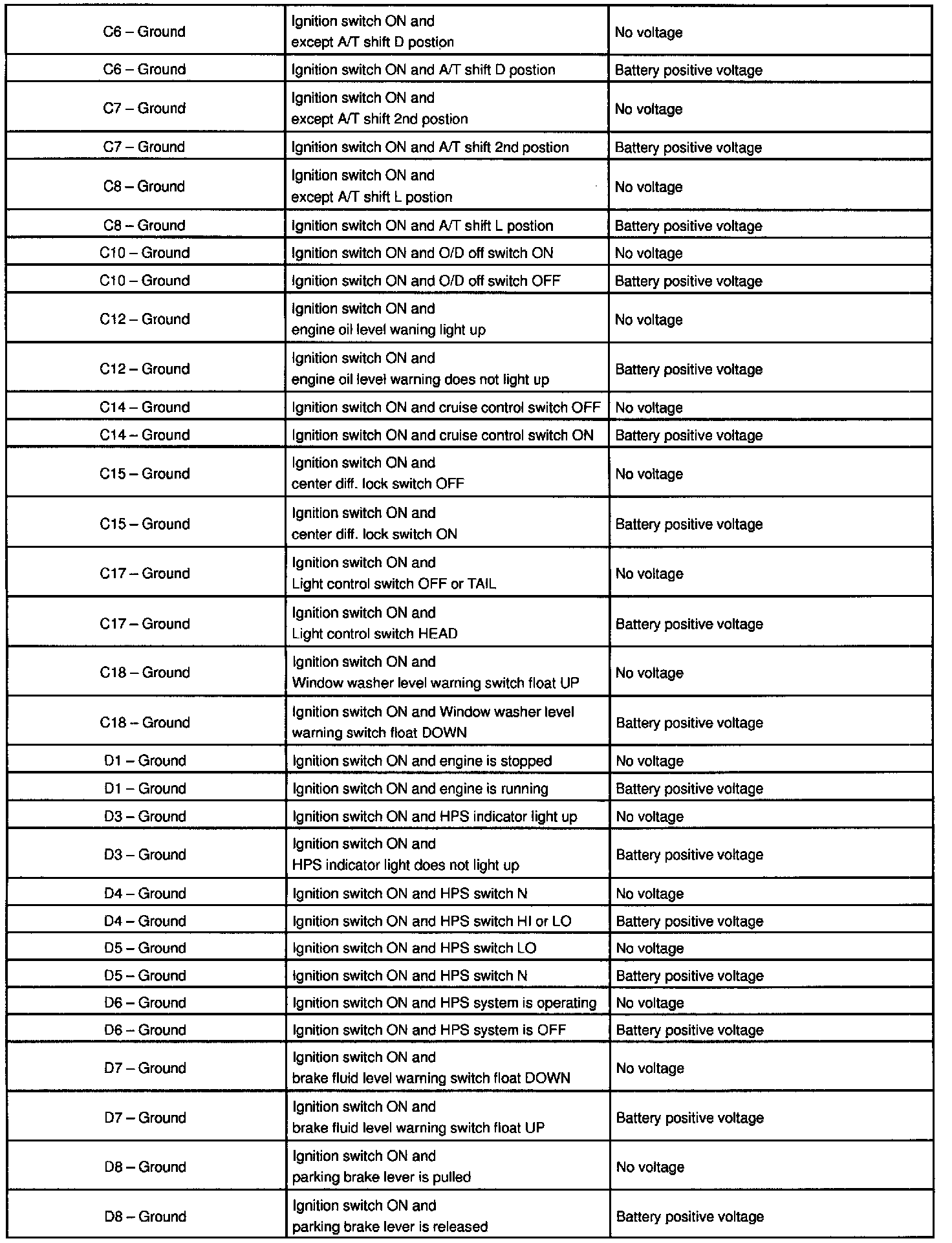

Connect the connector "A" "B", "C" and "D" to the combination meter and inspect the wire harness side connectors from the back side as shown in the table.
If circuit is not as specified, wiring diagram and inspect the circuits connected to other parts.
