DTC B0130 Short In P/T Squib (RH) Circuit




CIRCUIT DESCRIPTION
The P/T squib (RH) circuit consists of the airbag sensor assembly and seat belt pretensioner (RH).
It causes the seat belt pretensioner (RH) to activate when the seat belt pretensioner (RH) activation conditions are satisfied.
For details of the function of each component, Description and Operation

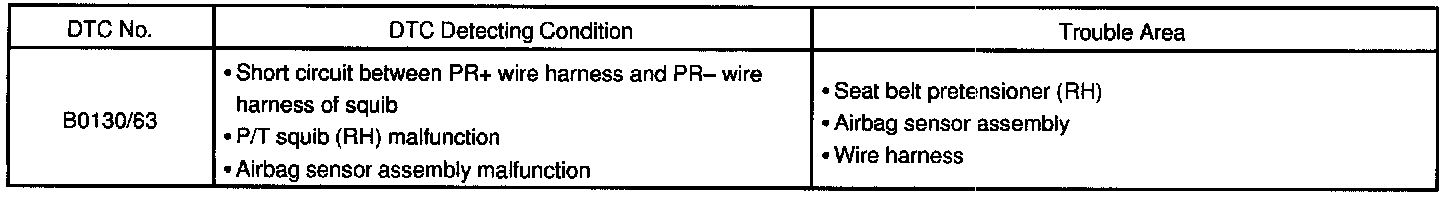

DTC B0130/63 is recorded when a short is detected in the P/T squib (RH) circuit.




WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

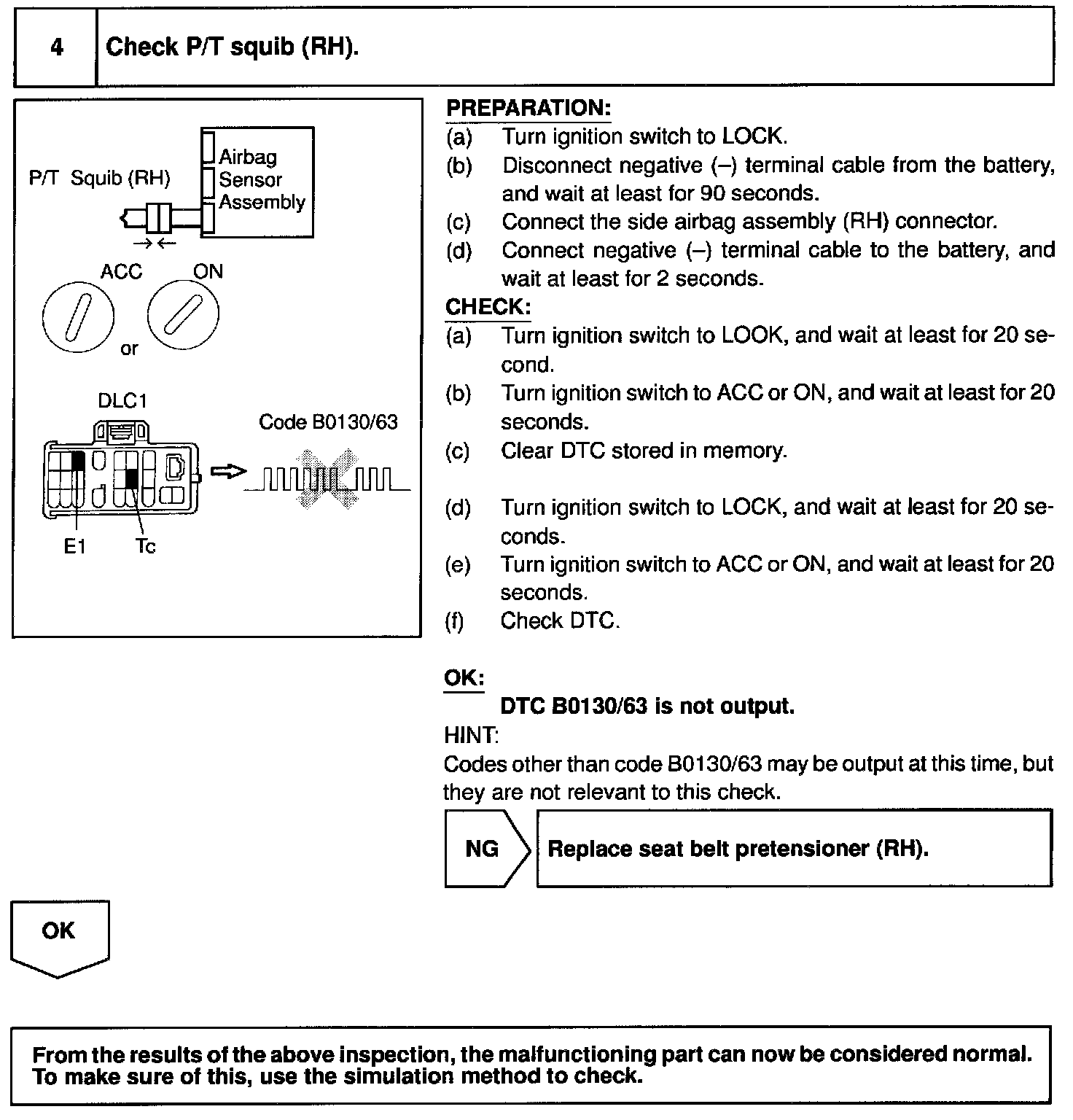

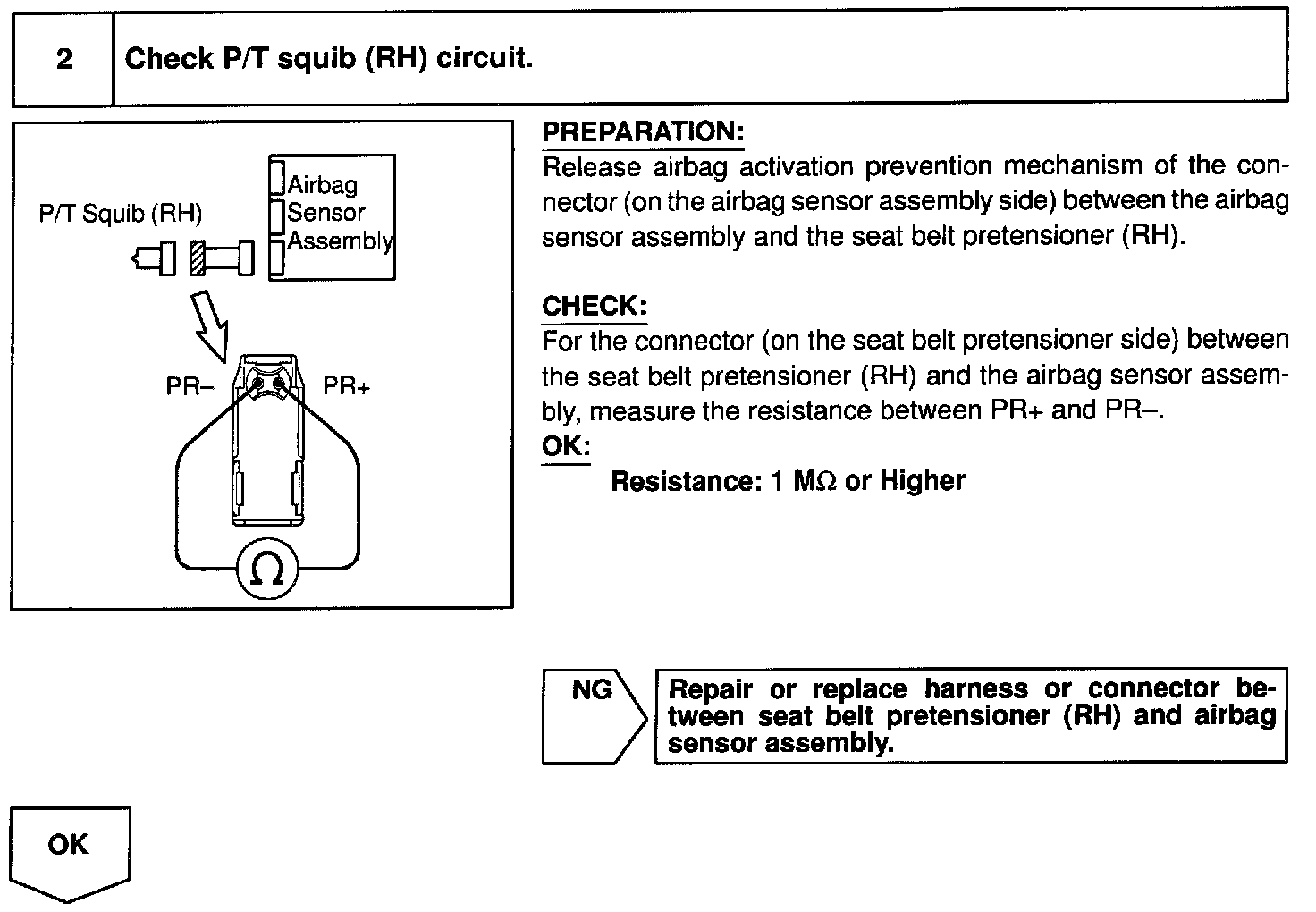

INSPECTION PROCEDURE
