Manufacturer Controlled Trouble Codes

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table.

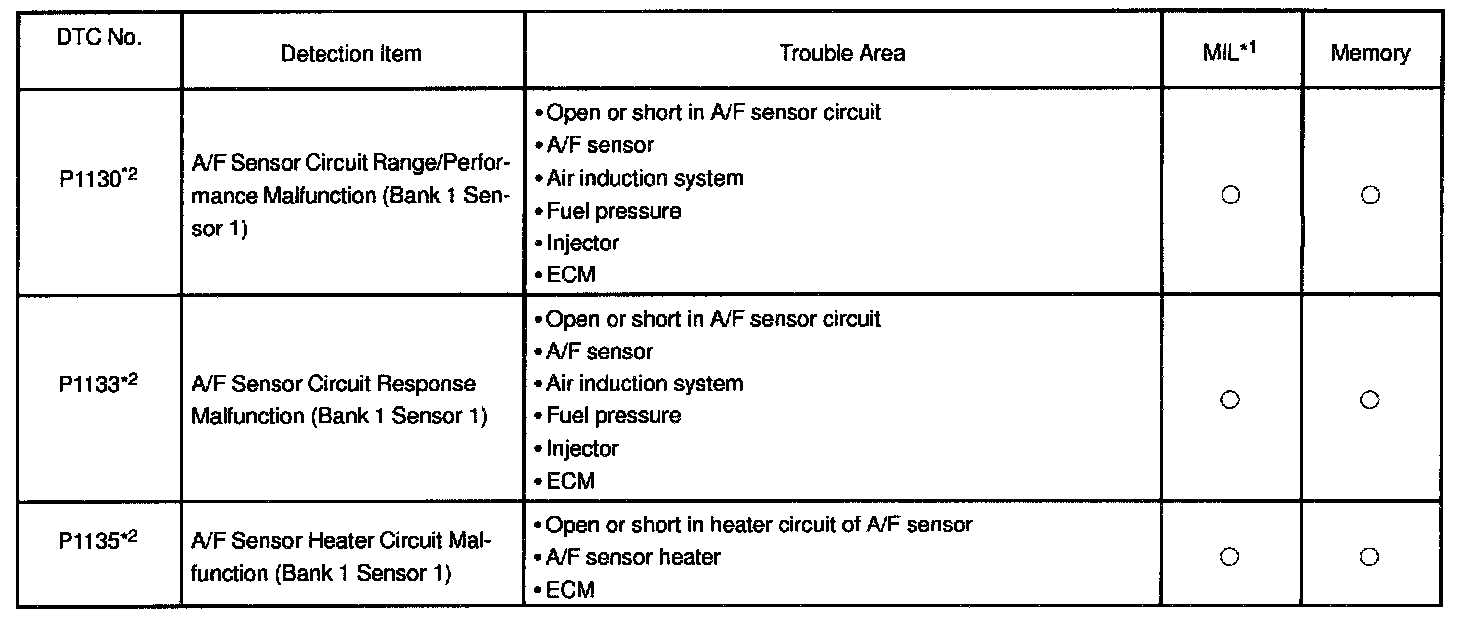

P1130 - P1135:

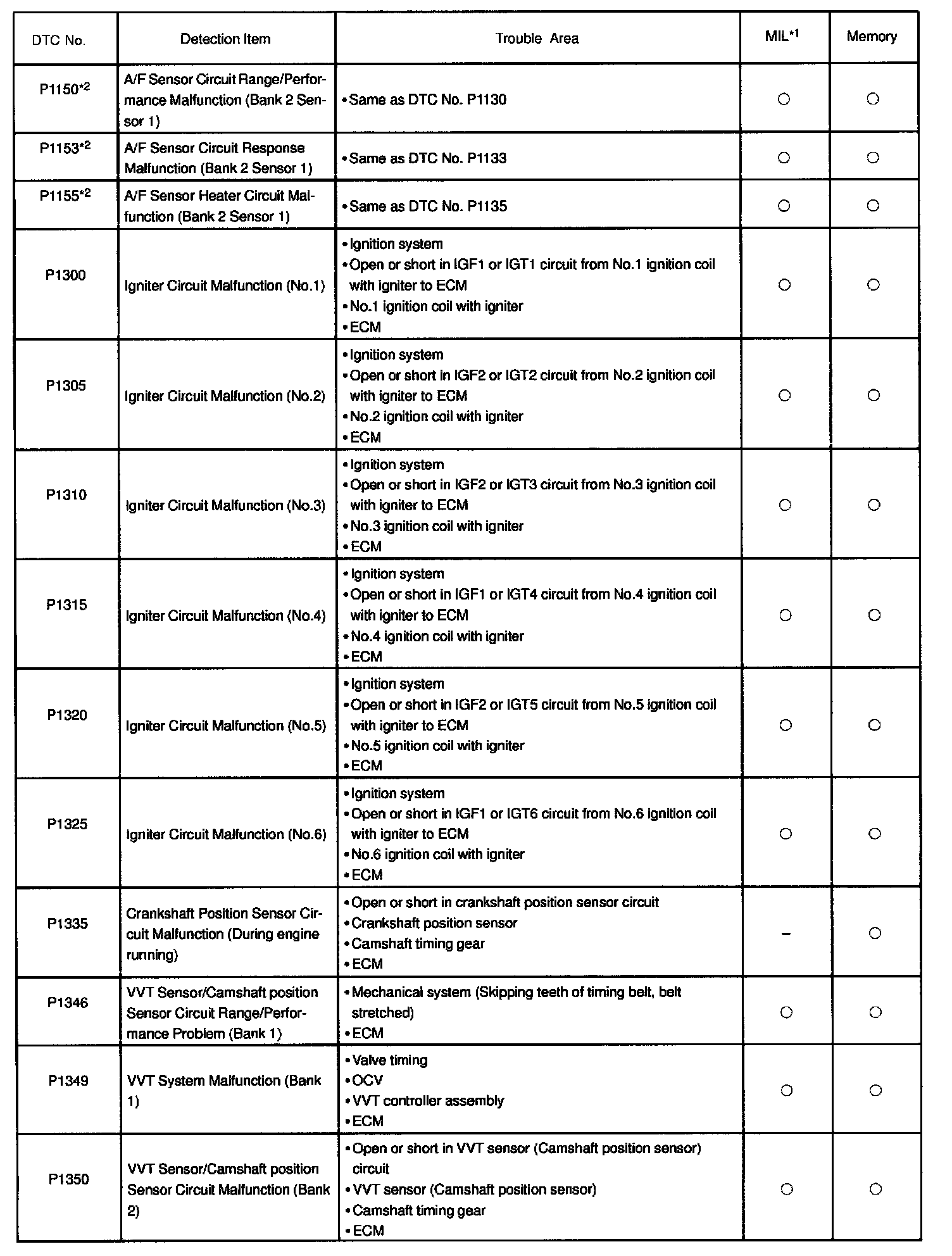

P1150 - P1350:

P1351 - P1780, B2795 - B2798:

*1: O...MIL lights up. -...MIL does not light up.
*2: PI lights up.
