Differential Assembly
>>
Rear Differential
Rear Differential

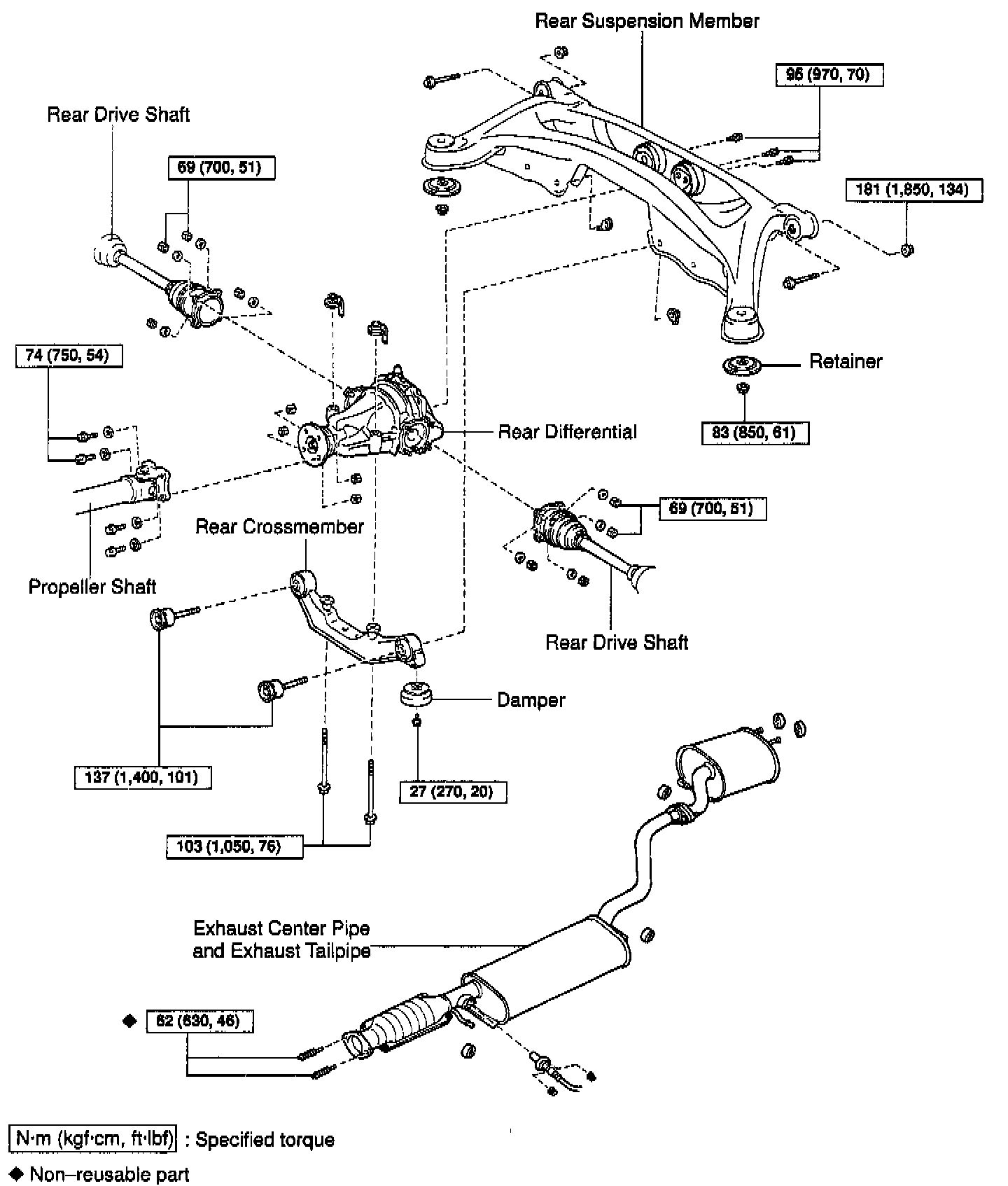

REAR DIFFERENTIAL W/ RELATED COMPONENTS
