Timing Belt

UNDERHOOD VIEW





Part 1 of 2





Part 2 of 2

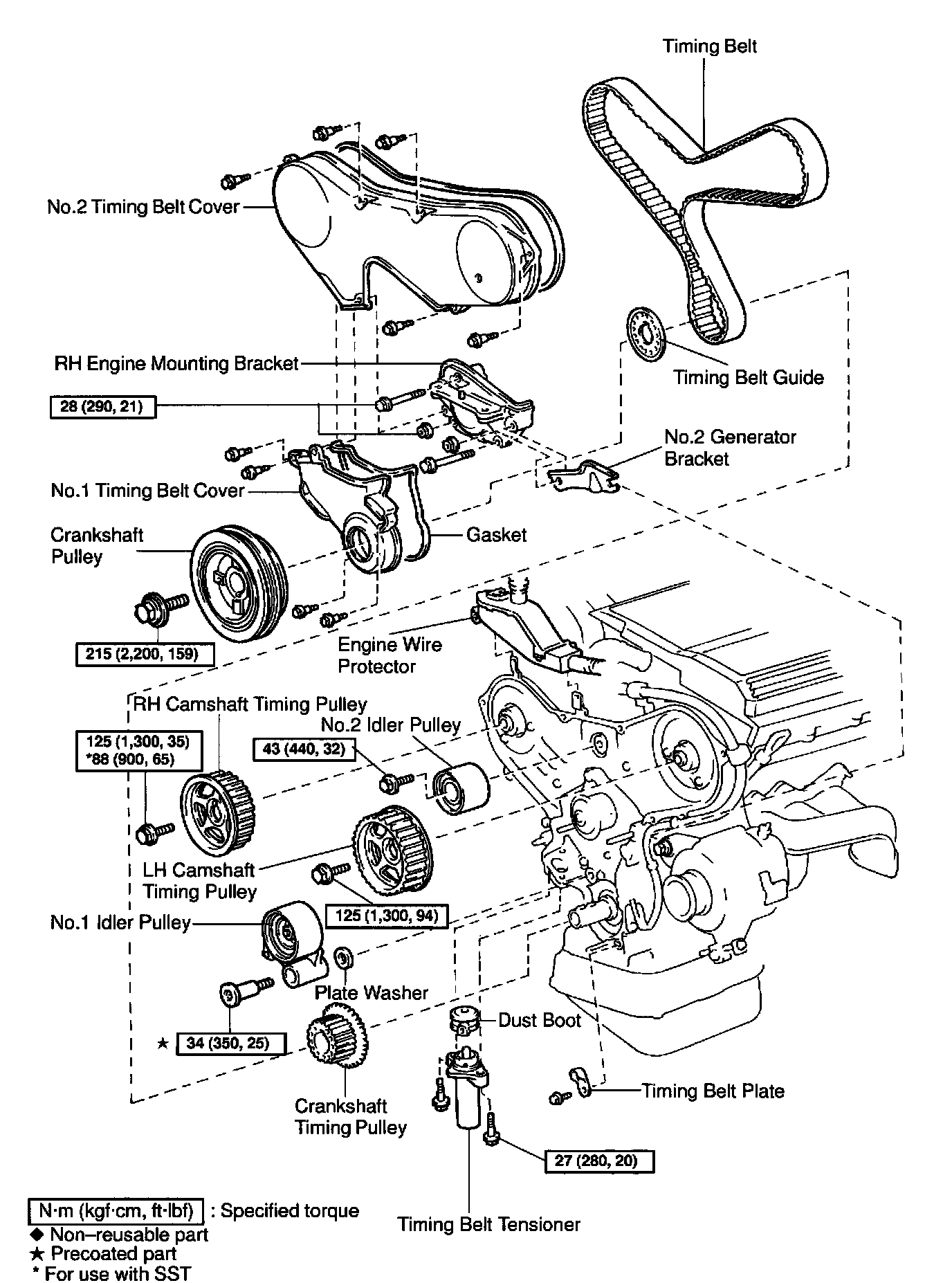

TIMING BELT REPLACEMENT W/ RELATED COMPONENTS
