C1241

DTC Detecting Condition:




CIRCUIT DESCRIPTION

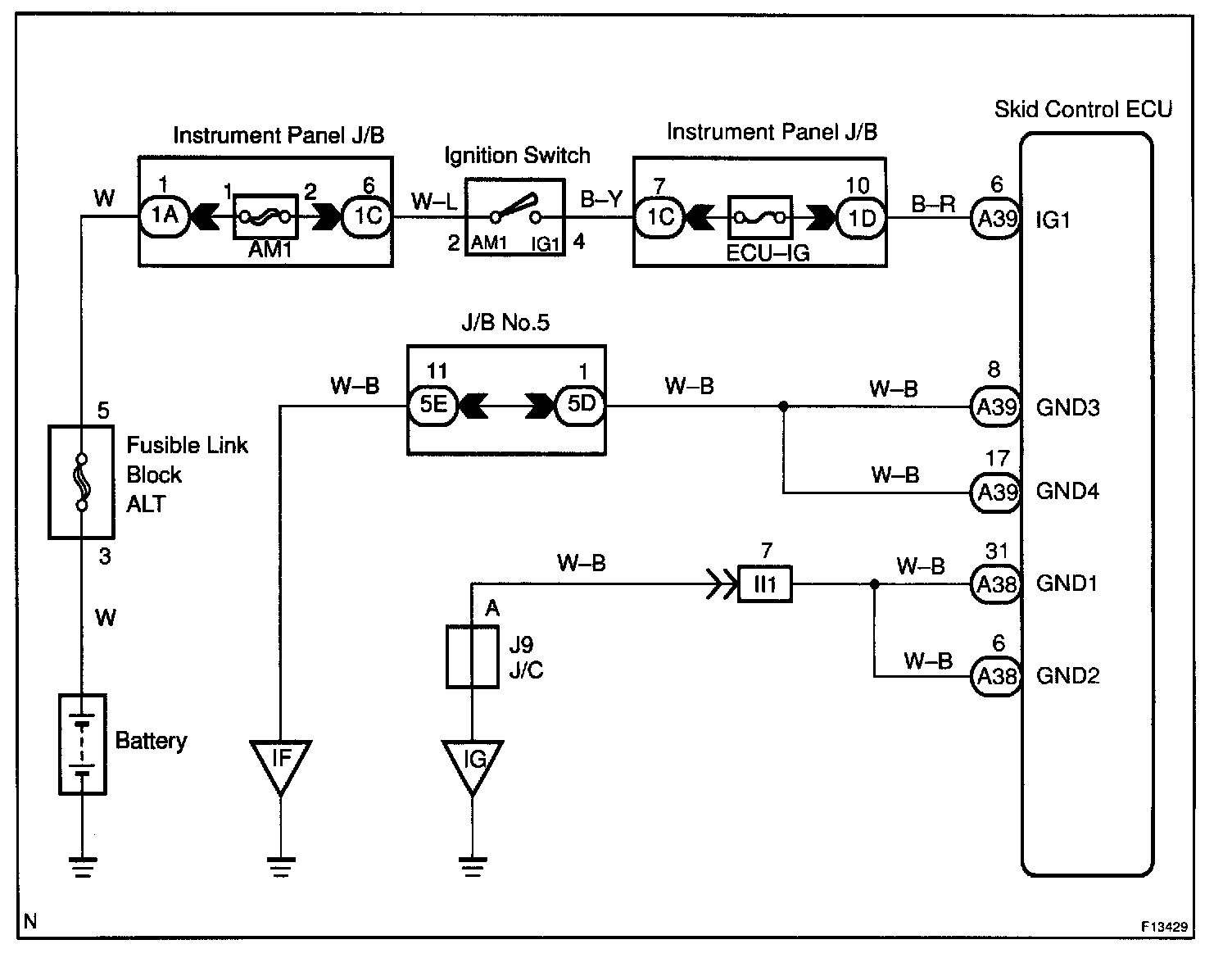

Wiring Diagram:







Steps 1 - 2:

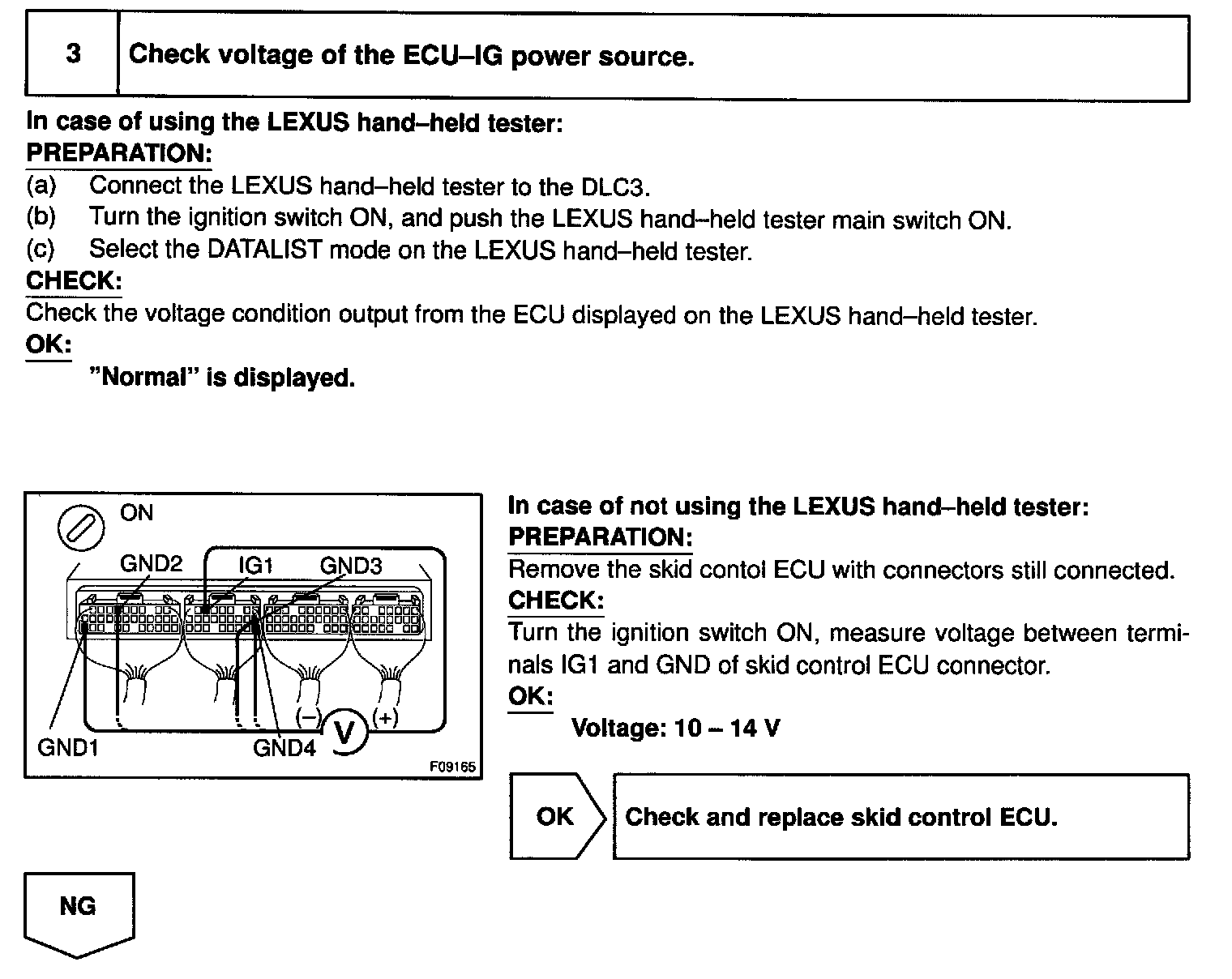

Step 3:




Step 4:




INSPECTION PROCEDURE
