Lexus Truck
>>
2002
>>
RX 300 FWD V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Engine Compartment
Engine Compartment

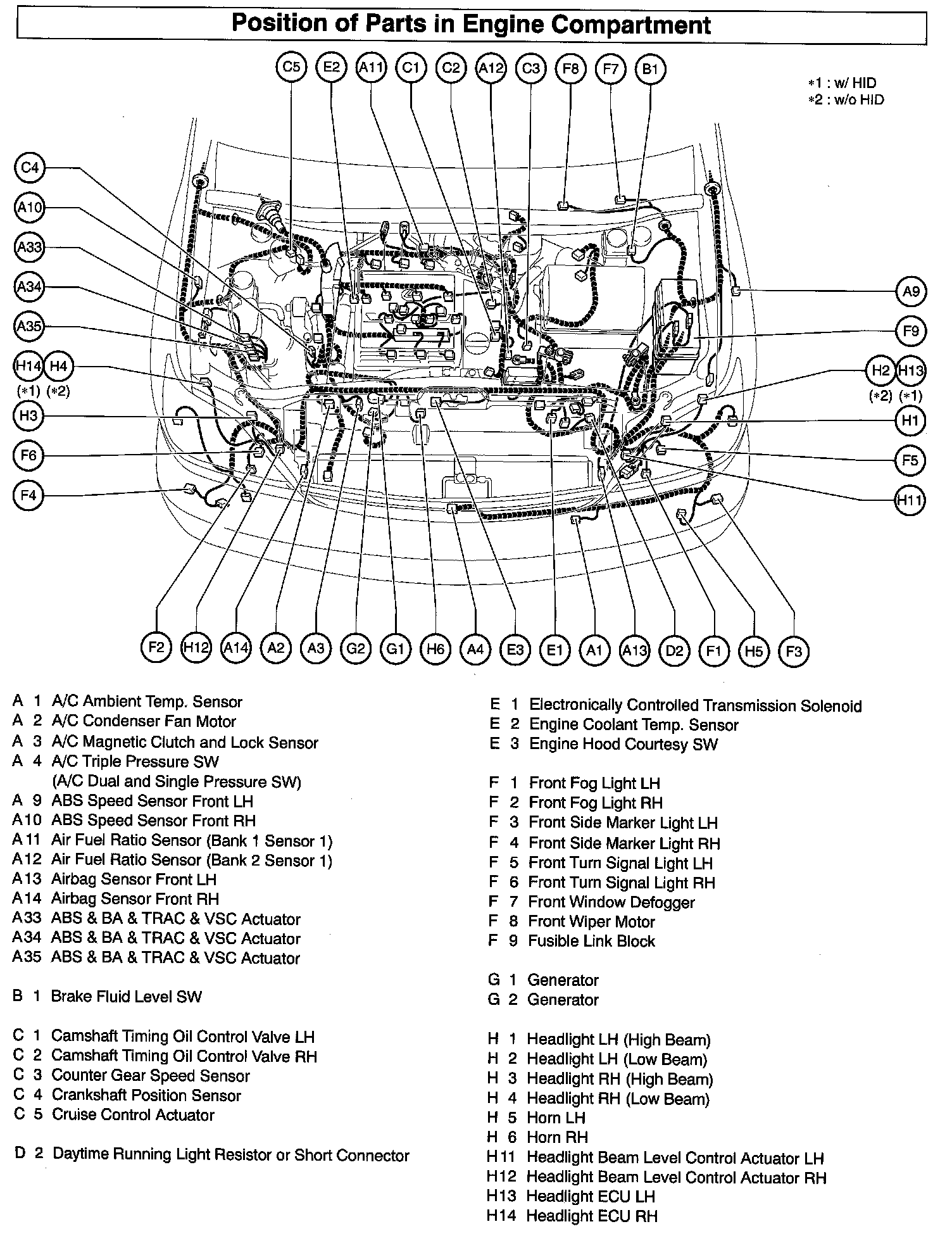

Position Of Parts In Engine Compartment Part 1:

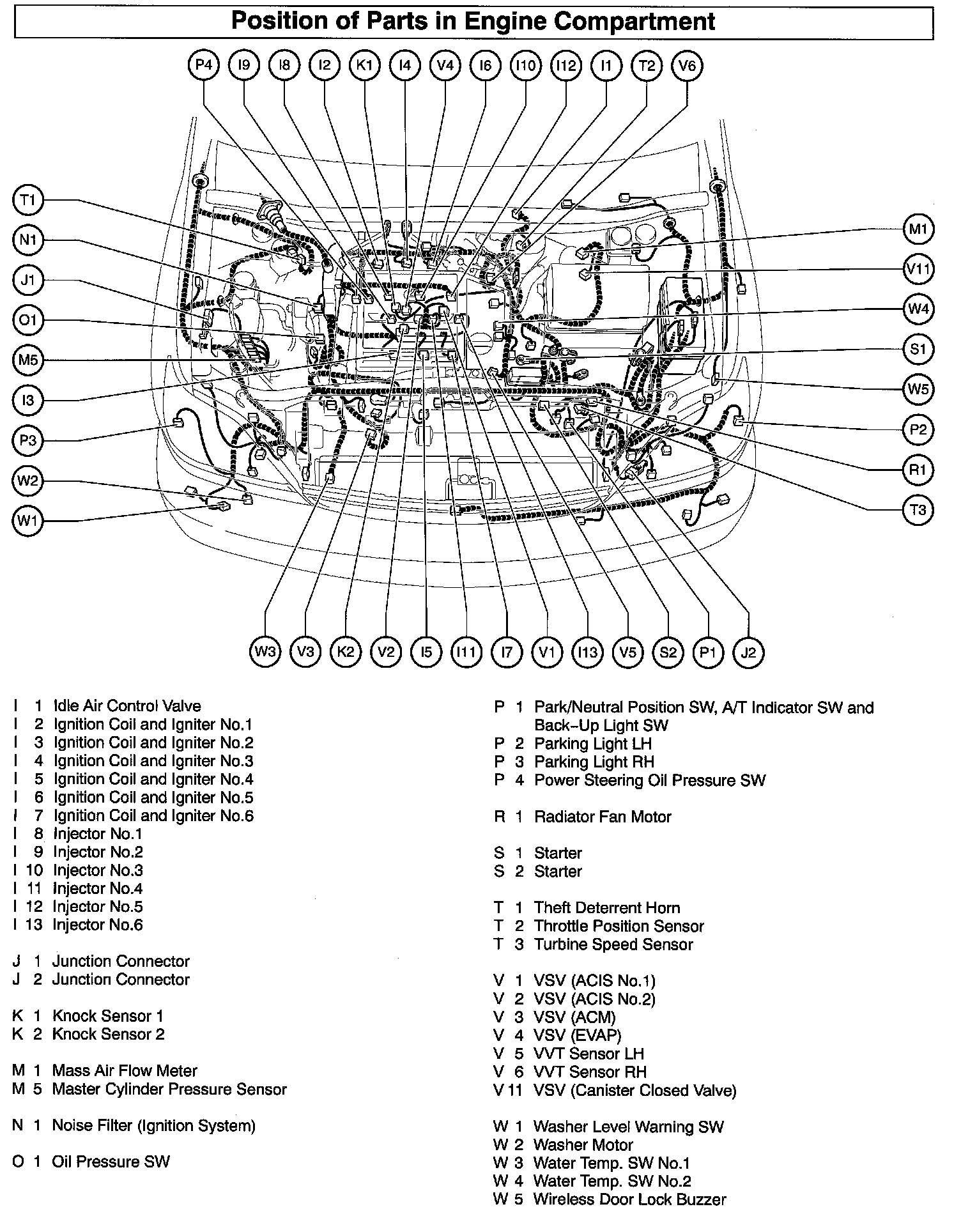

Position Of Parts In Engine Compartment Part 2:
