Instrument Cluster / Carrier

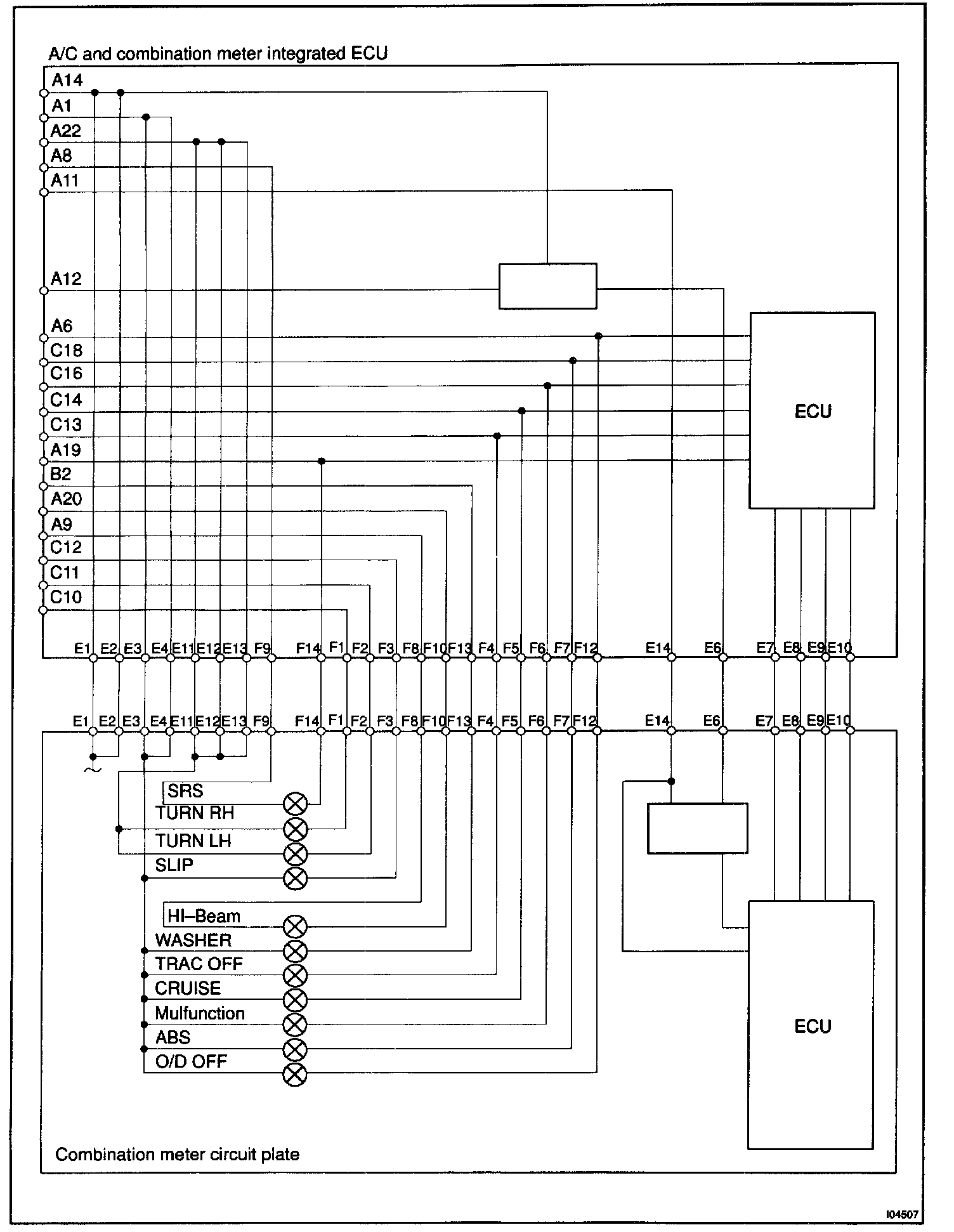

Circuit - Connector Diagrams (Part 1):

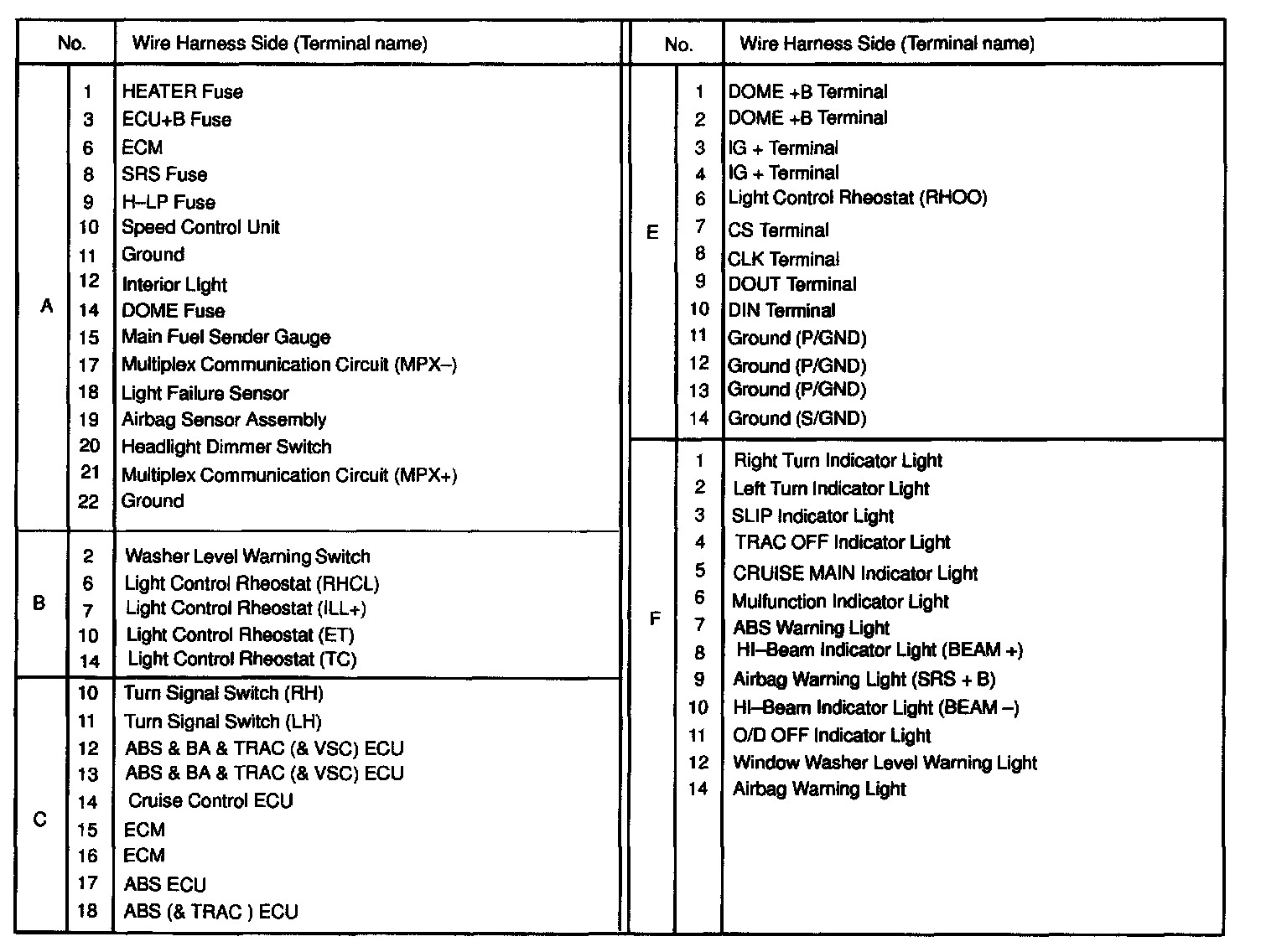

Circuit - Connector Diagram (Part 2):

Circuit - Connector Diagram (Part 3):

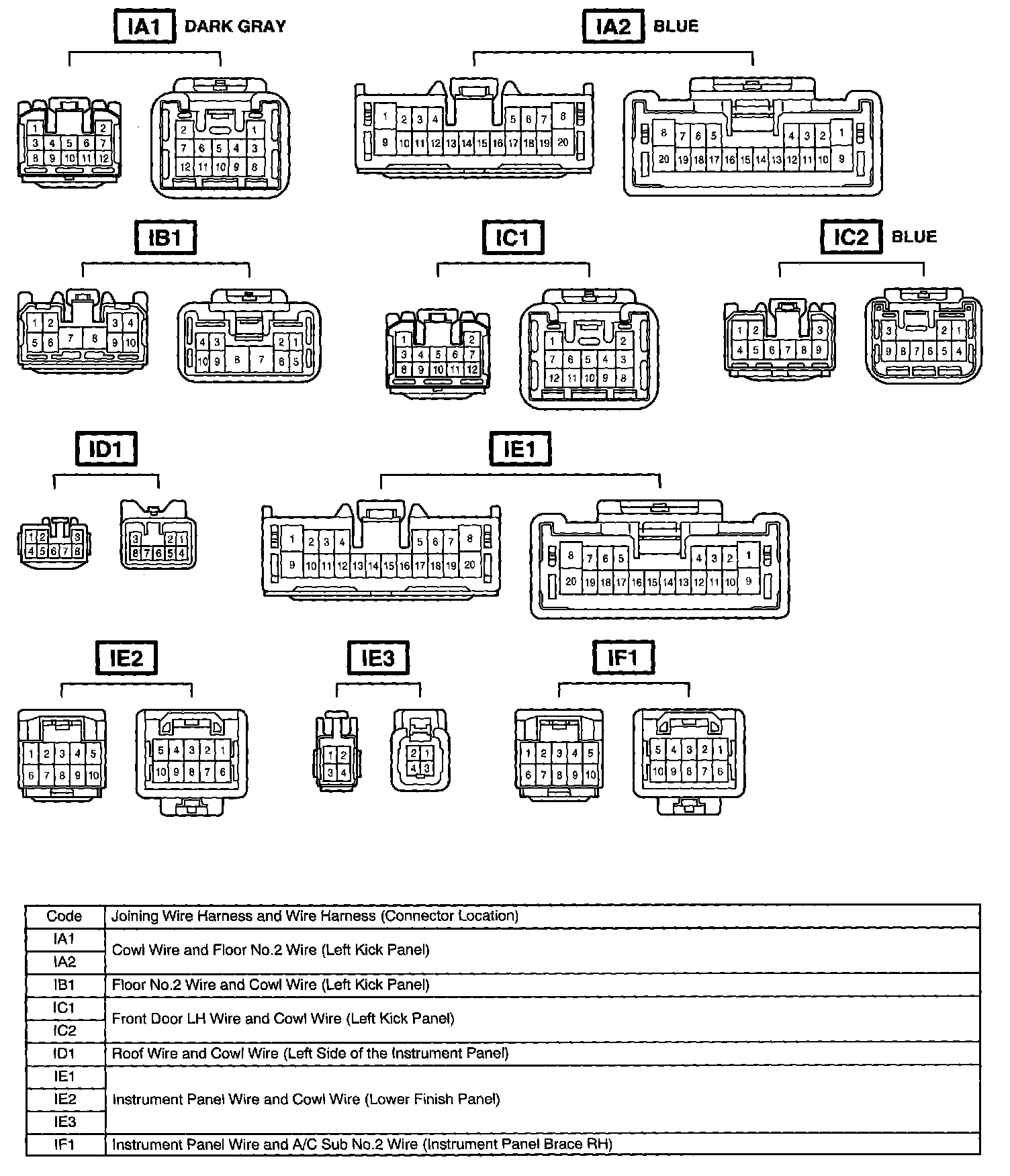

Under Wood Wire Harness To Wire Harness Connectors (IA1 - IF1):

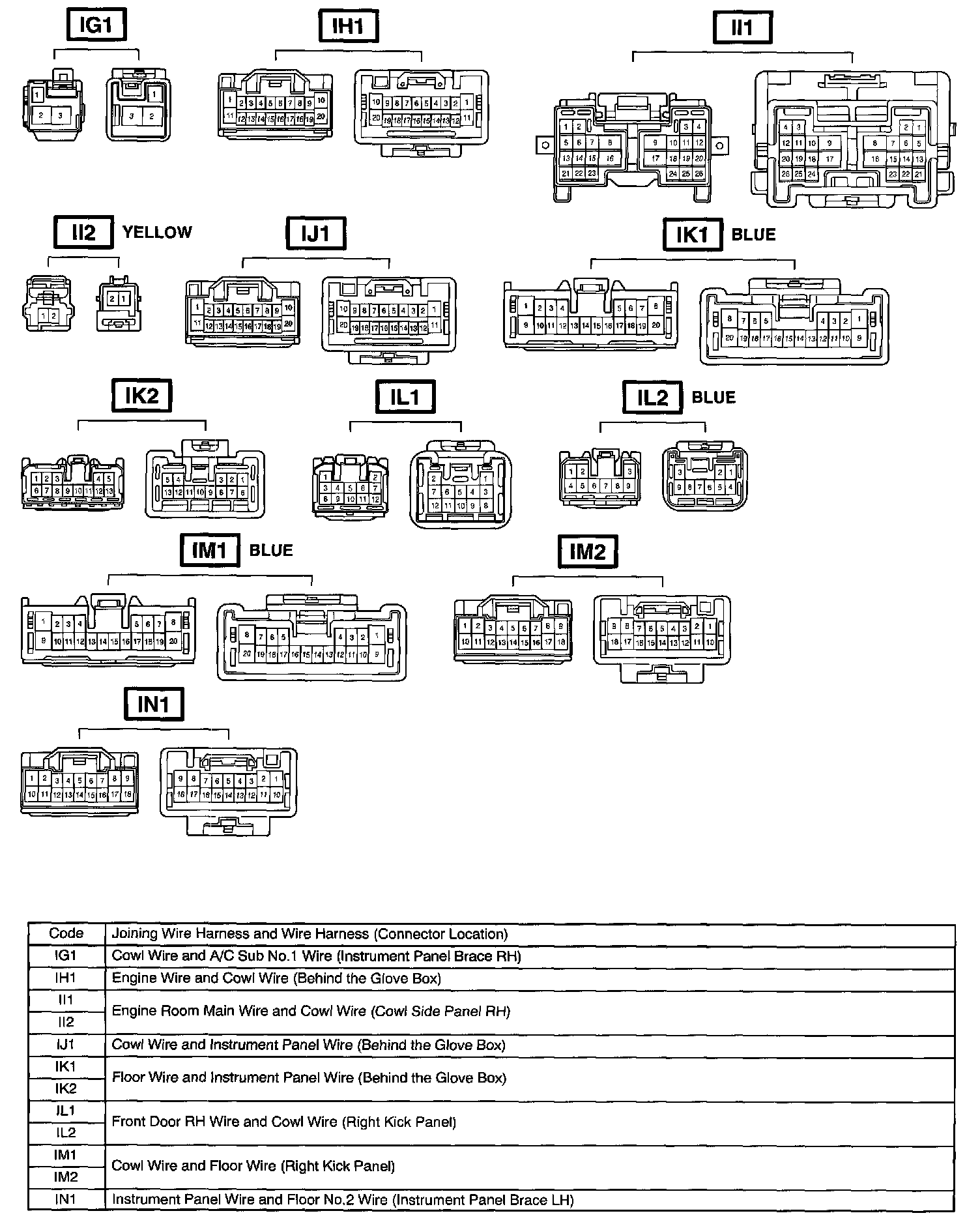

Under Wood Wire Harness To Wire Harness Connectors (IG1 - IN1):
