Instrument Cluster / Carrier
Instrument Cluster / Carrier

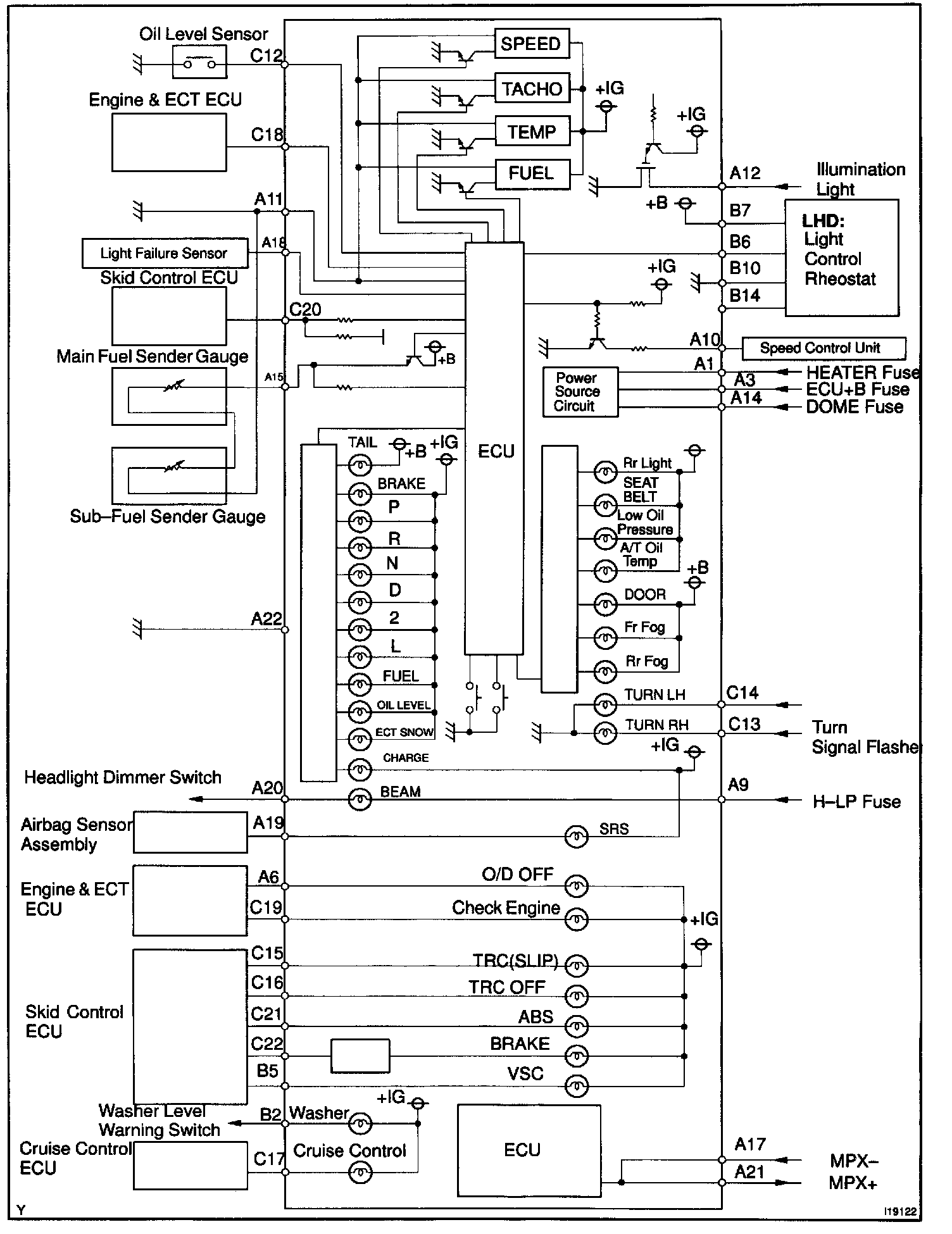

Circuit (Part 1):
Circuit (Part 2):
Circuit (Part 3):

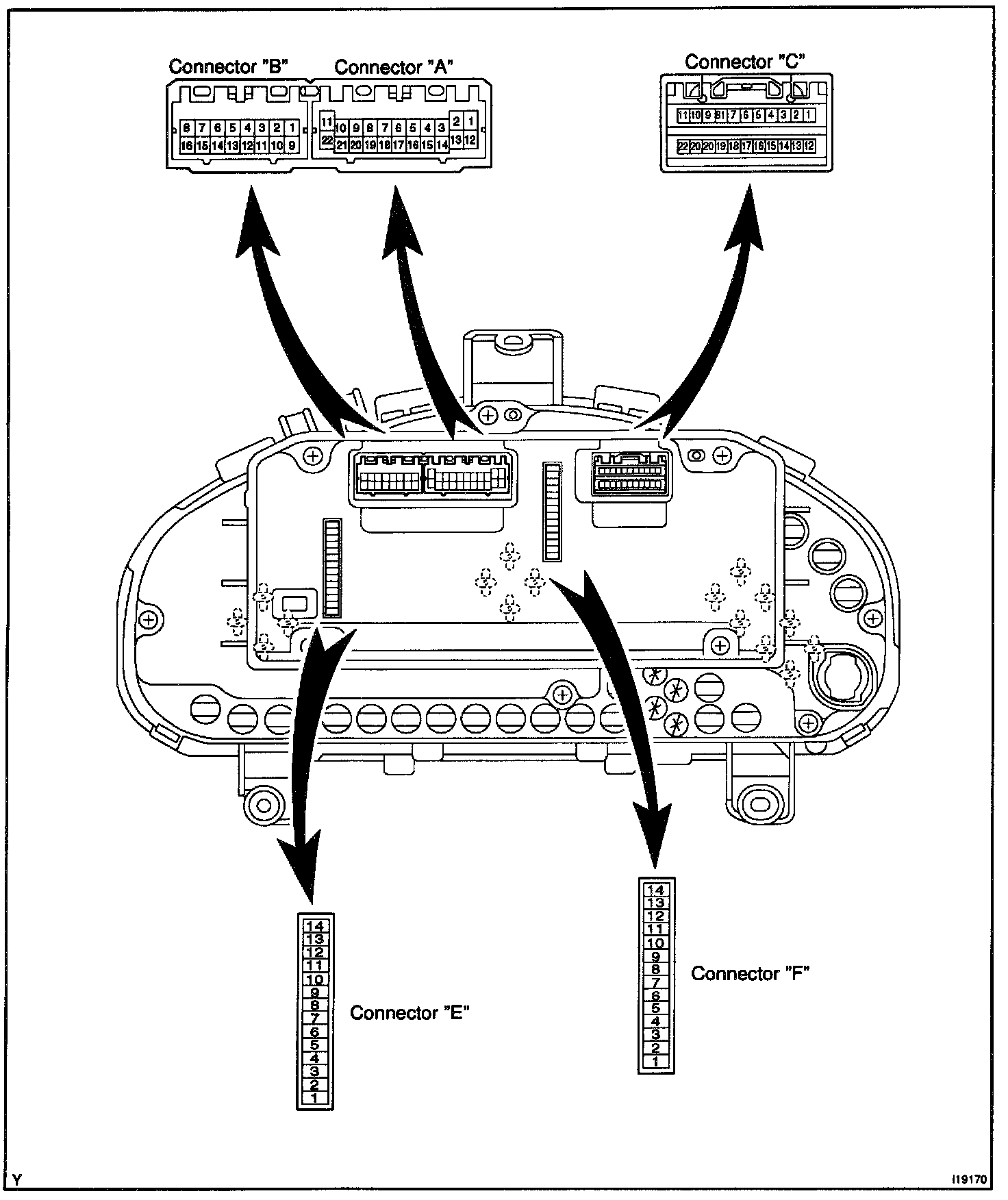

Combination Meter Part 1:
Combination Meter Part 2:
Combination Meter Part 3:
