Cabin Air Filter / Purifier: Service and Repair

AIR REFINER FILTER

REPLACEMENT

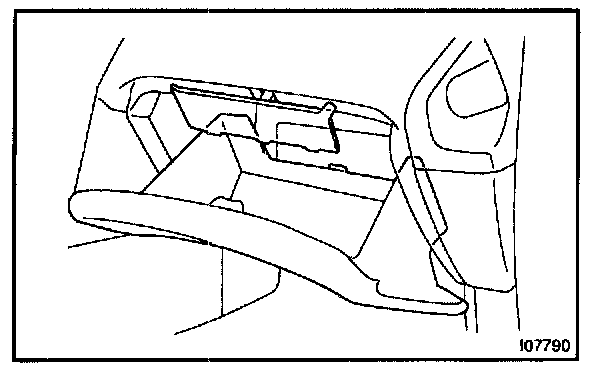

1. REMOVE LOWER COVER FROM LOWER NO.2 FINISH PANEL

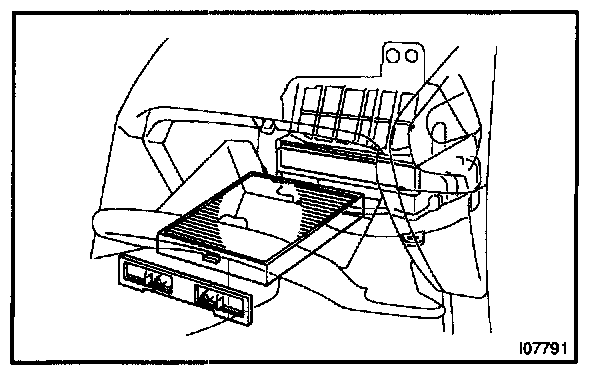

2. REMOVE AIR REFINER FILTER
a. Remove the filter cover.
b. Pull out the filter.




c. Remove the filter from the frame.

3. INSTALL NEW FILTER
a. Install the new filter to the frame.
b. Install the filter to blower unit.
c. Install the filter cover.

4. INSTALL LOWER COVER TO LOWER NO.2 FINISH PANEL
