ABS Light: Testing and Inspection

CIRCUIT DESCRIPTION

If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.

Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

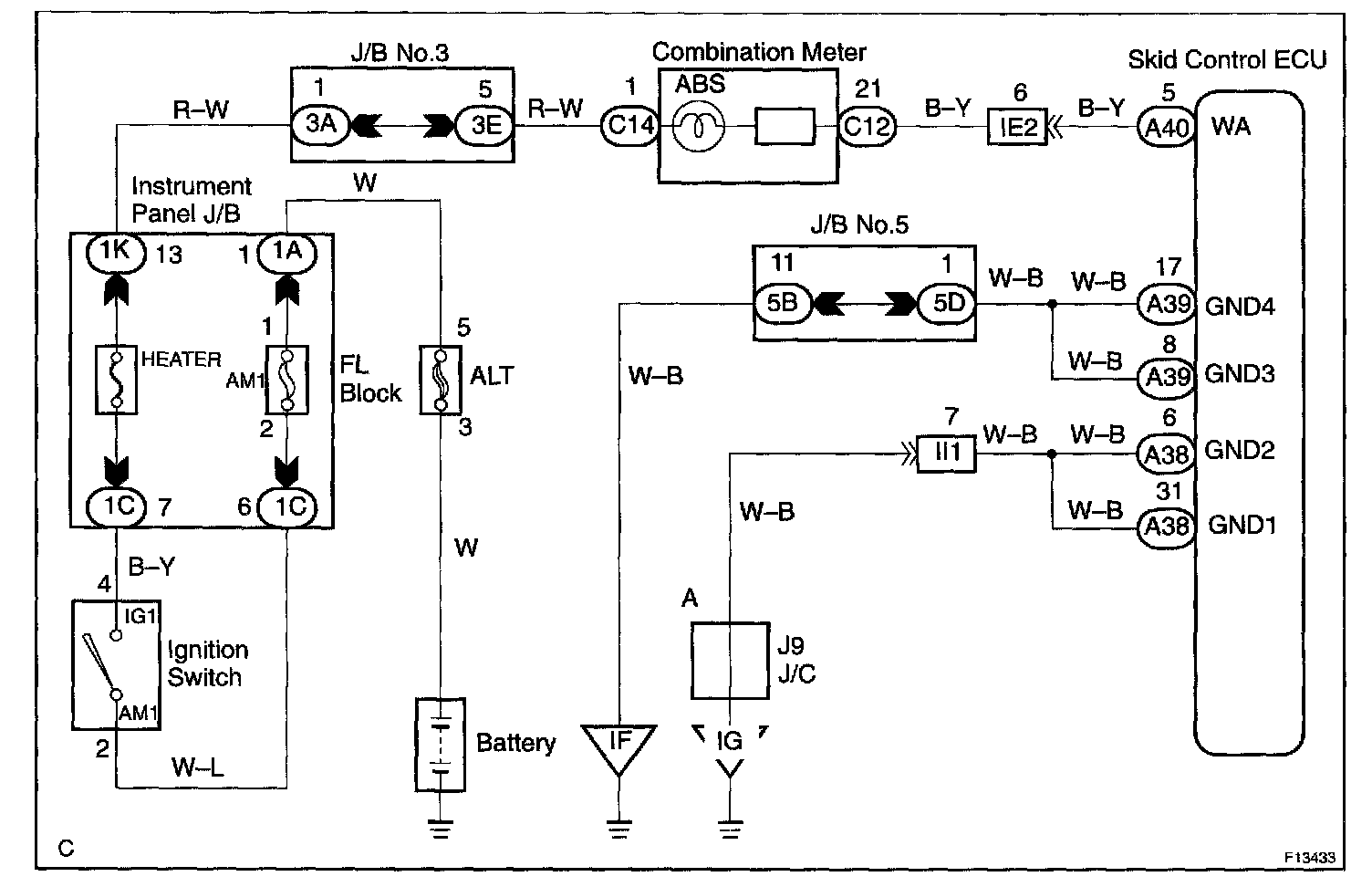

Wiring Diagram:

Step 1 - 3:

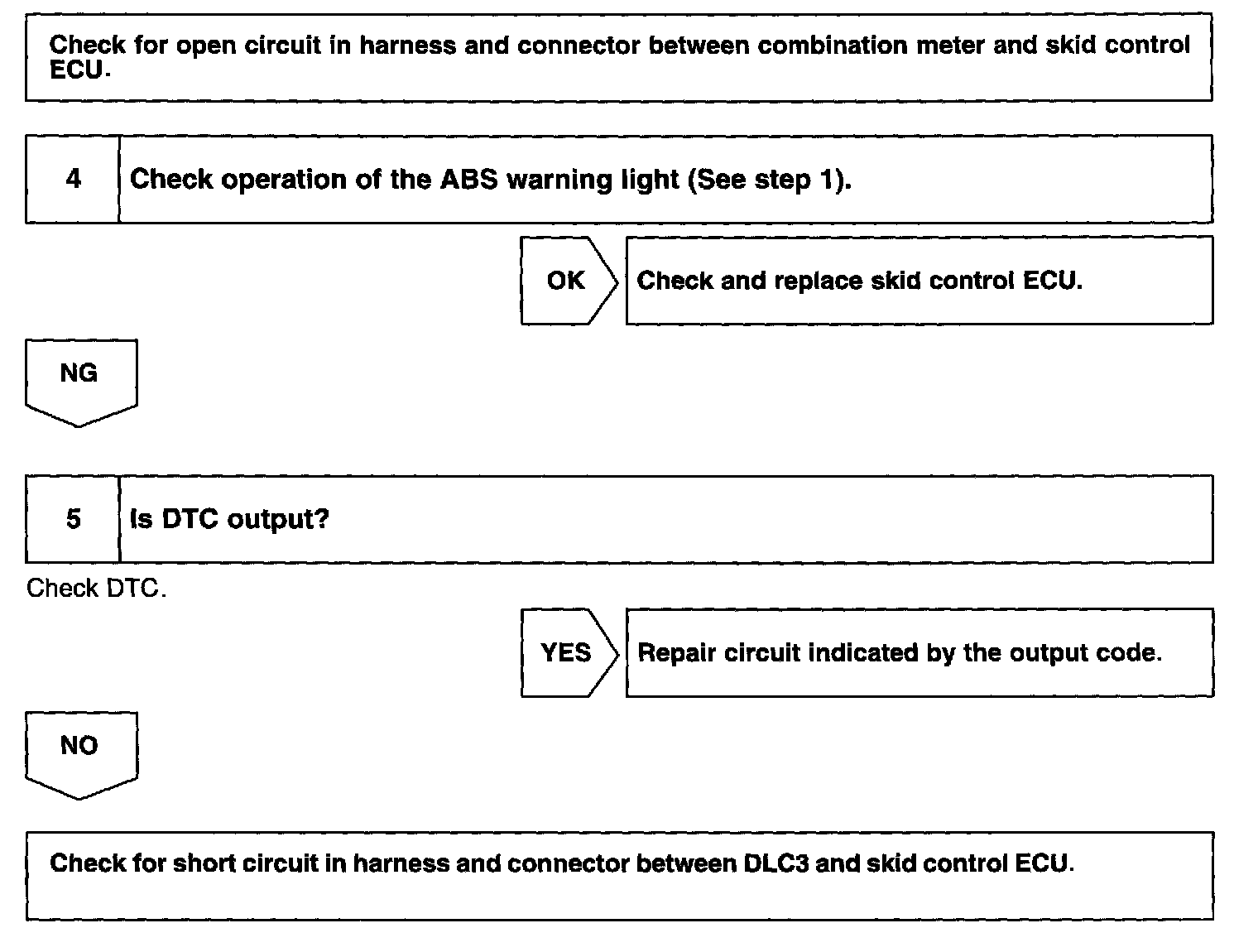

Step 3 (Continued) - 5:

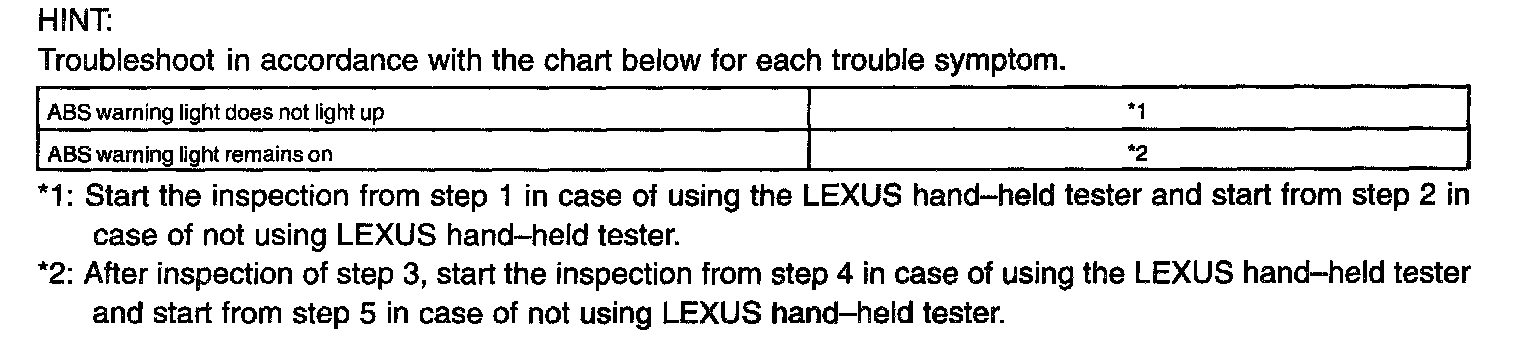

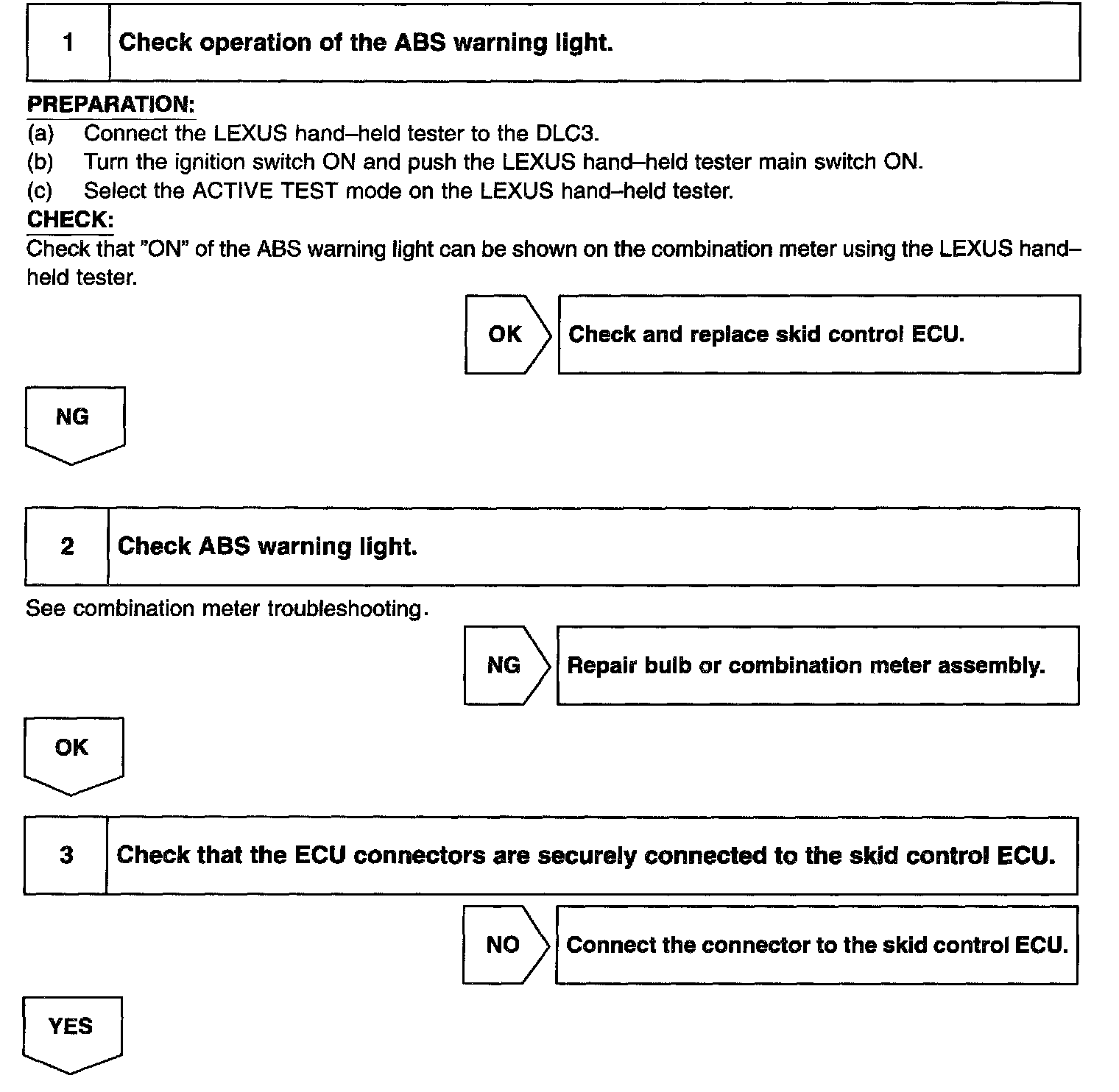

INSPECTION PROCEDURE
