Trailer Connector: Testing and Inspection
INSPECTION
INSPECT TOWING CONVERTER CIRCUIT

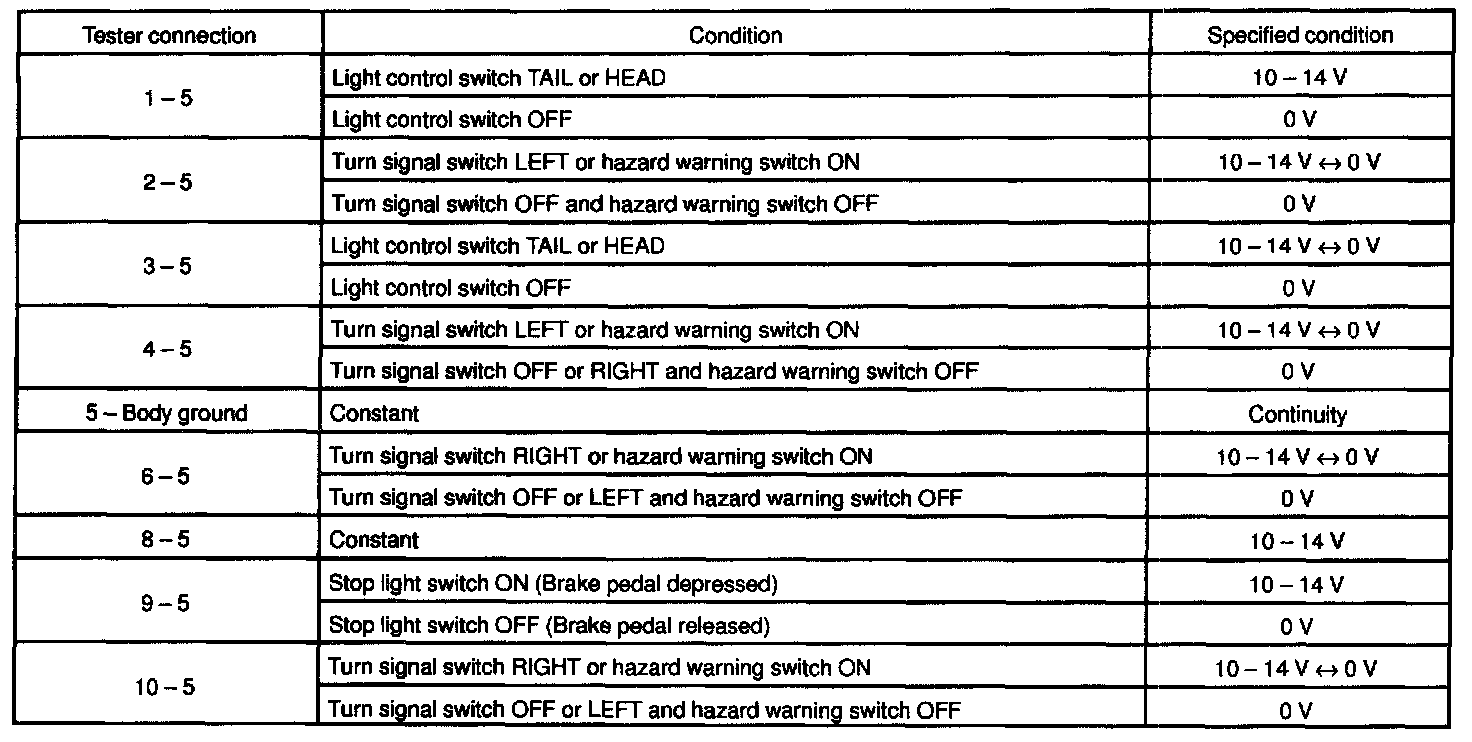

Remove the towing converter with connector still connected and inspect the wire harness side connector from the back side.
