ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020 or 09843-18040, connect the terminals Tc and E1 of DLC1 or Tc and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed that code. For details of each code, refer to respective "DTC No." in the DTC chart.

C0278/11 - C1237/37:

C1238/38 - Always ON:

DTC chart of ABS




Table of Trouble Part and DTC

C1231/31 - Always ON:

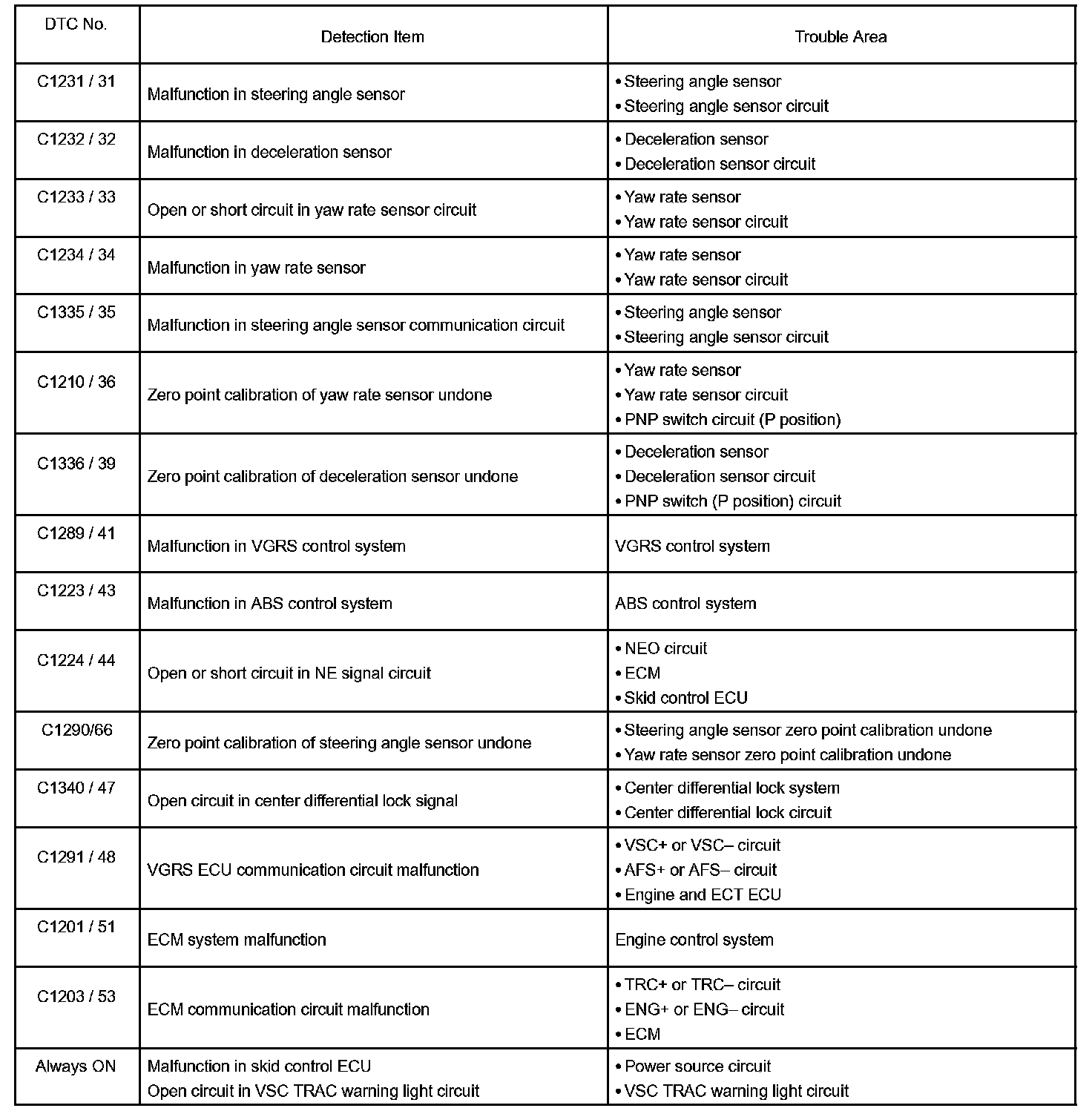

DTC chart of VSC

HINT: There is a case that hand held tester cannot be used when VSC TRAC warning light is always on.

C1271/71 - C1283/83:

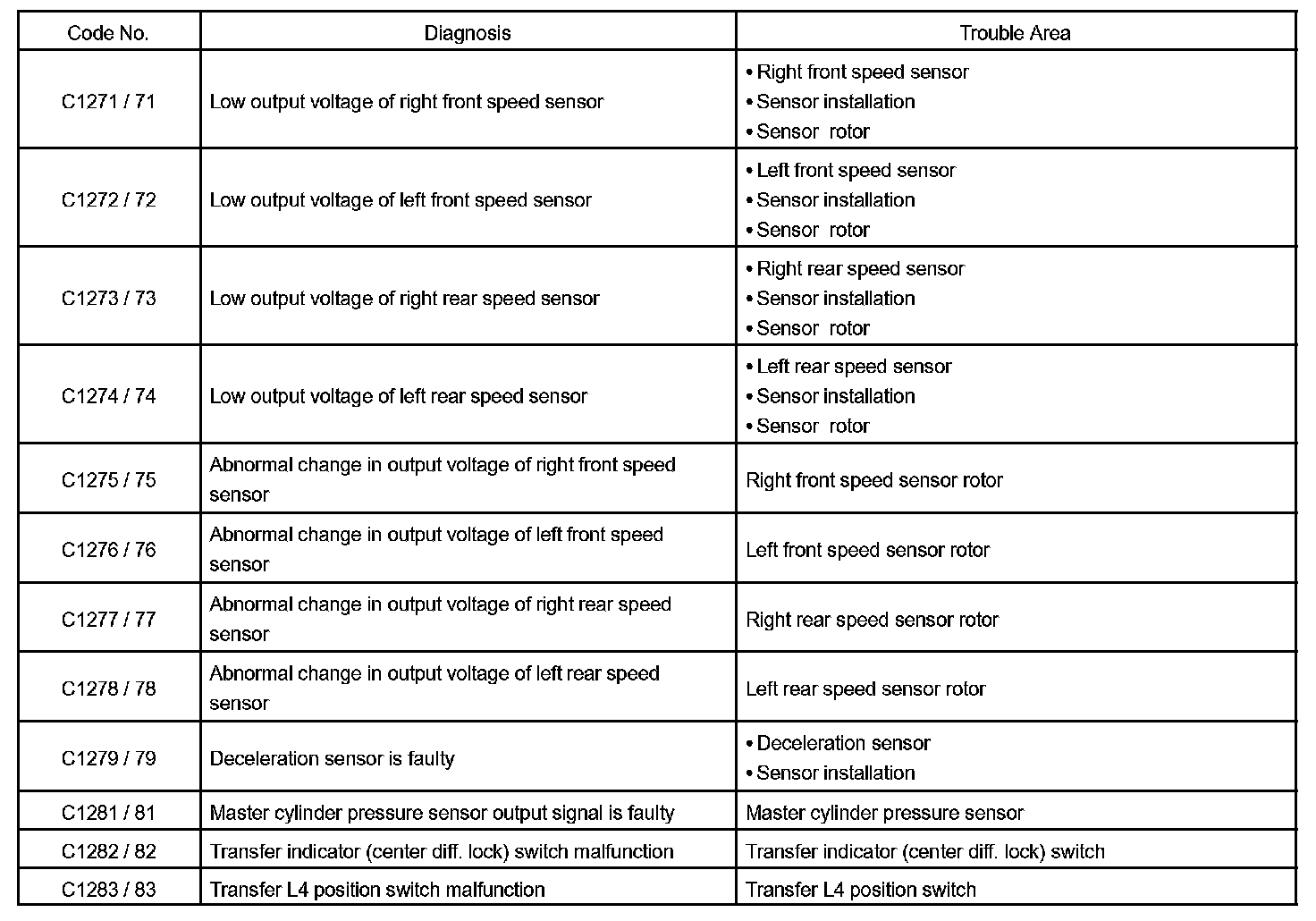

DTC of speed sensor signal check function

C0371/71:

DTC of the VSC sensor check function
