Navigation System

DIAGNOSTIC TROUBLE CODE CHART

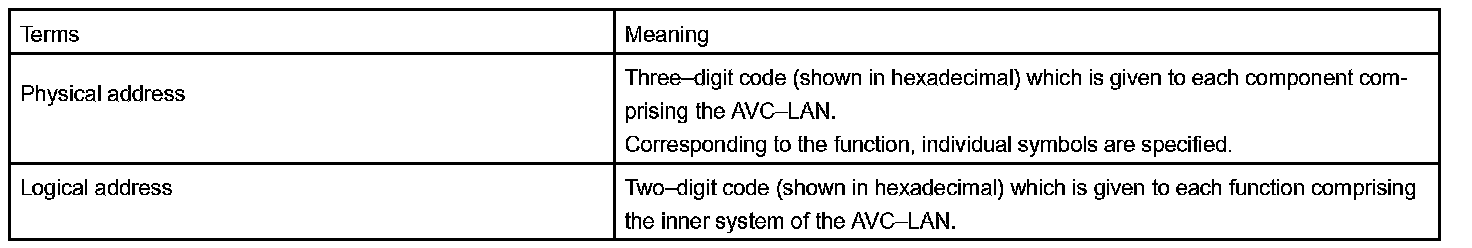

1. PHYSICAL ADDRESS: 110 MULTI DISPLAY (EMV)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. have passed after the power supply connector is pulled out after the engine start.
- *3: It may be stored when the engine key is turned again after the engine start.
- *4: It may be stored when the engine key is turned 1 min. again after the engine start.




a. Logical address: 01 (Communication control)

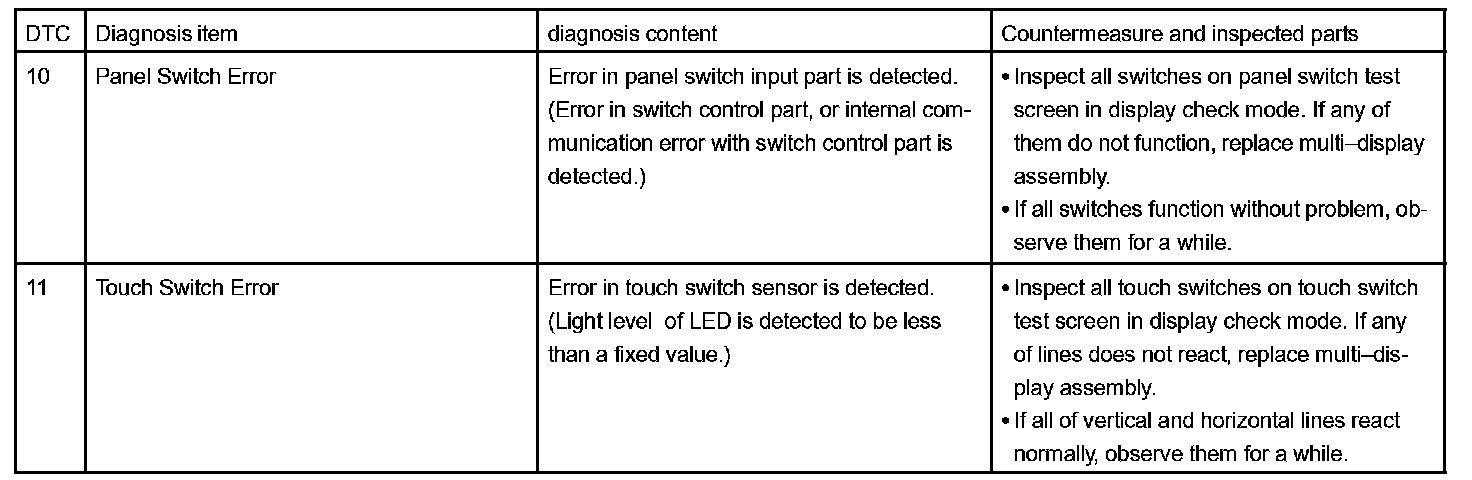

b. Logical address: 21 (Switch)

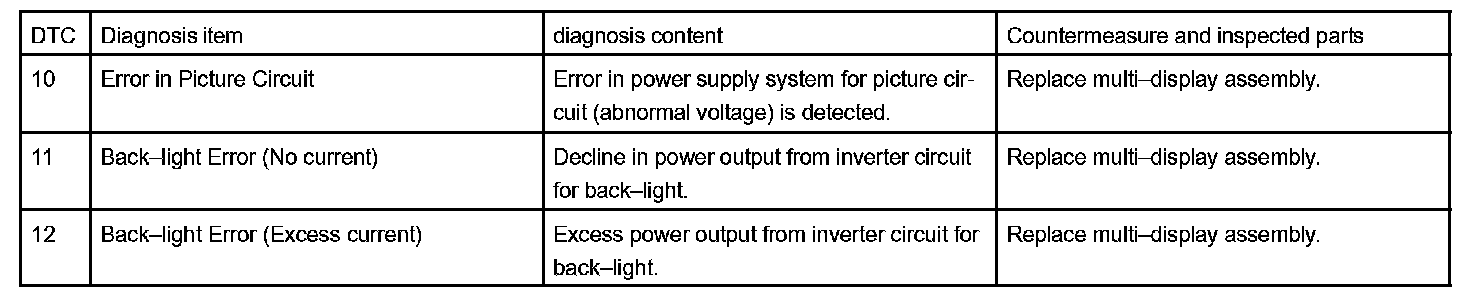

c. Logical address: 34 (Front passenger monitor)

2. PHYSICAL ADDRESS: 1C6 GATEWAY ECU (G/W-ECU)




Logical address: 01 (Communication control)

HINT:
- *1: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

3. PHYSICAL ADDRESS: 190 RADIO RECEIVER (AUDIO H/U)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. have passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. again after the engine start.
- *4: It may be stored when the engine key is turned again after the engine start.
- *5: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

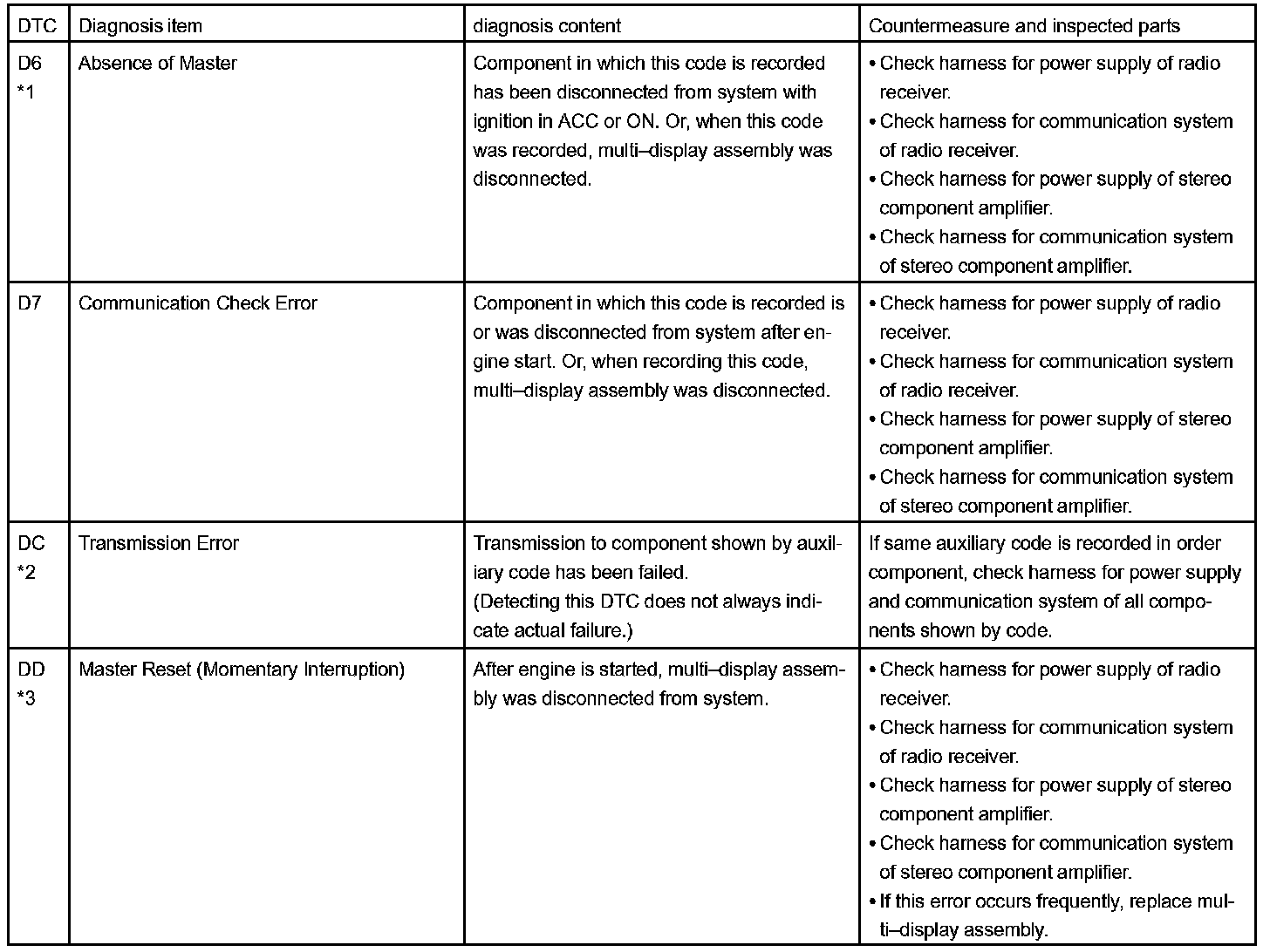

a. Logical address: 01 (Communication control)

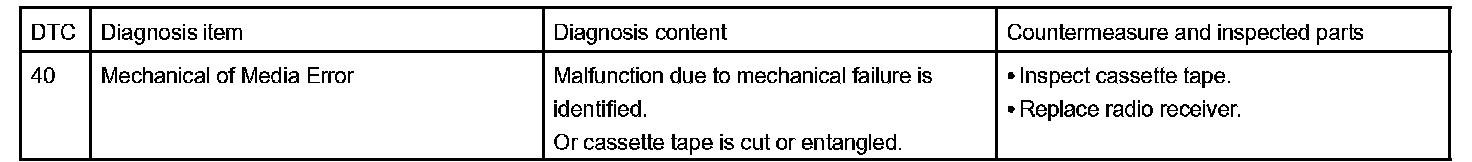

b. Logical address: 61 (Cassette)

4. PHYSICAL ADDRESS: 178 NAVIGATION ECU (NAVI-ECU)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- *3: It may be stored when the engine key is turned 1 min. again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.

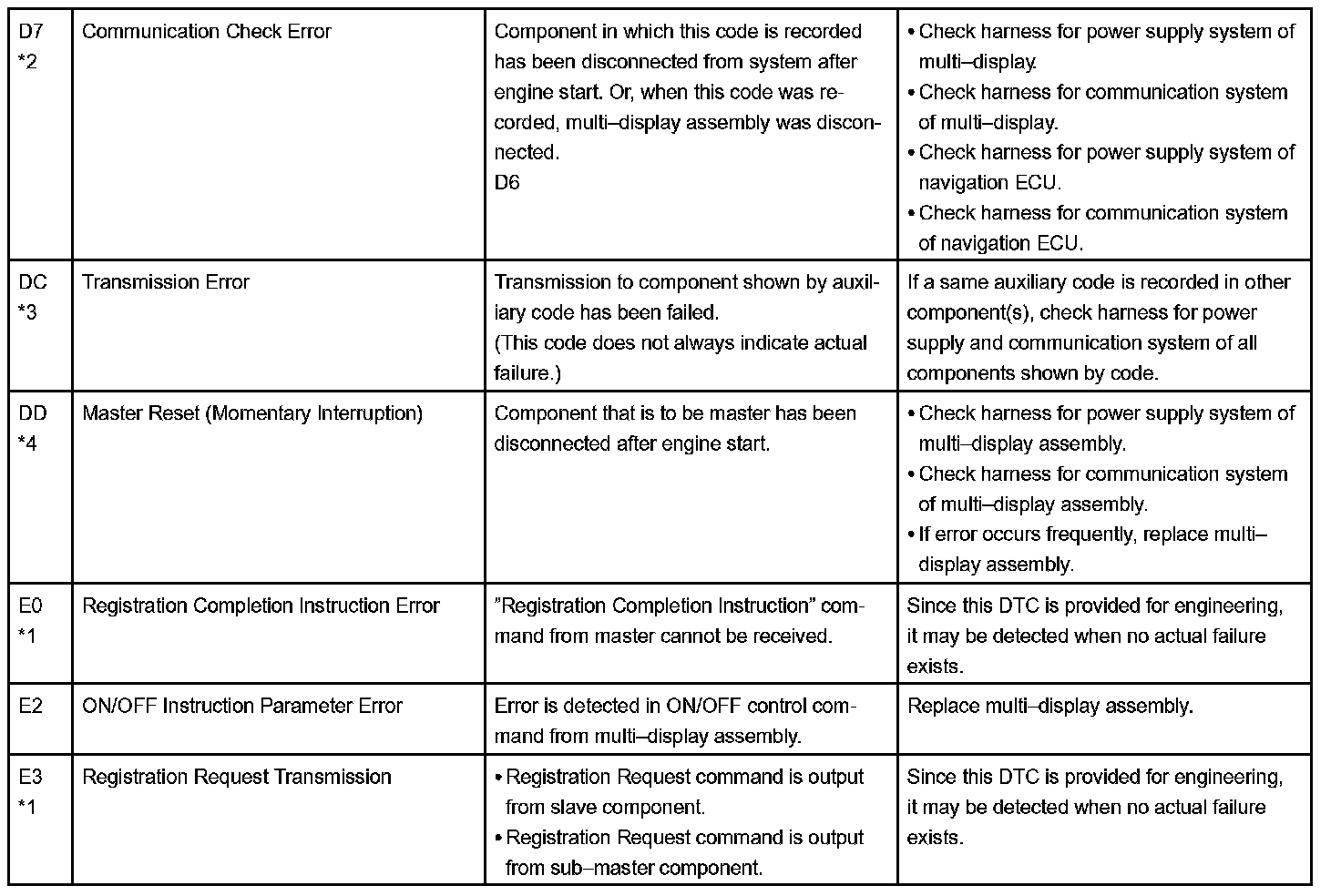

a. Logical address: 01 (Communication control)




b. Logical address: 58 (Navigation ECU)

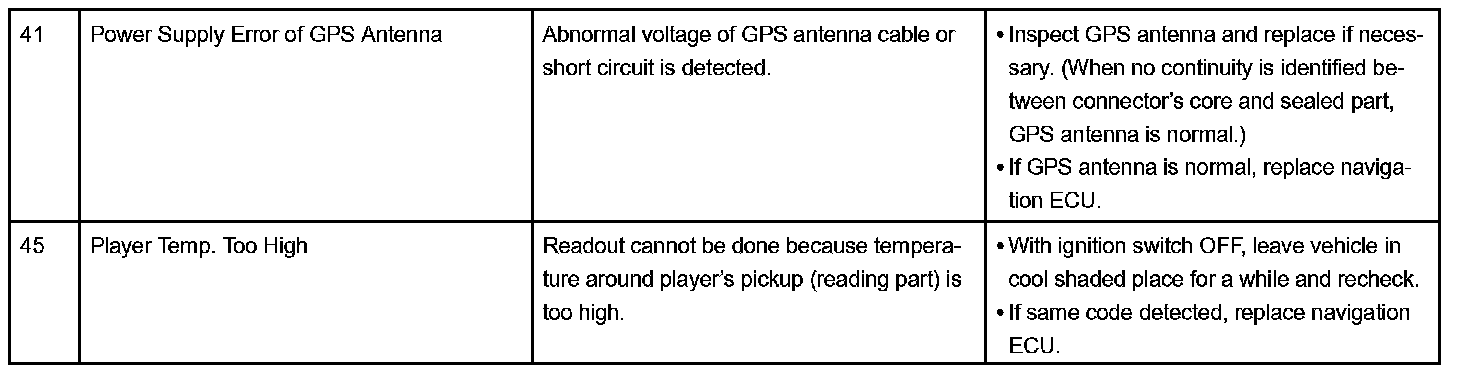

c. Logical address: 80 (GPS receiver)

5. PHYSICAL ADDRESS: 440 STEREO COMPONENT AMPLIFIER (DSP AMP)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. have passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

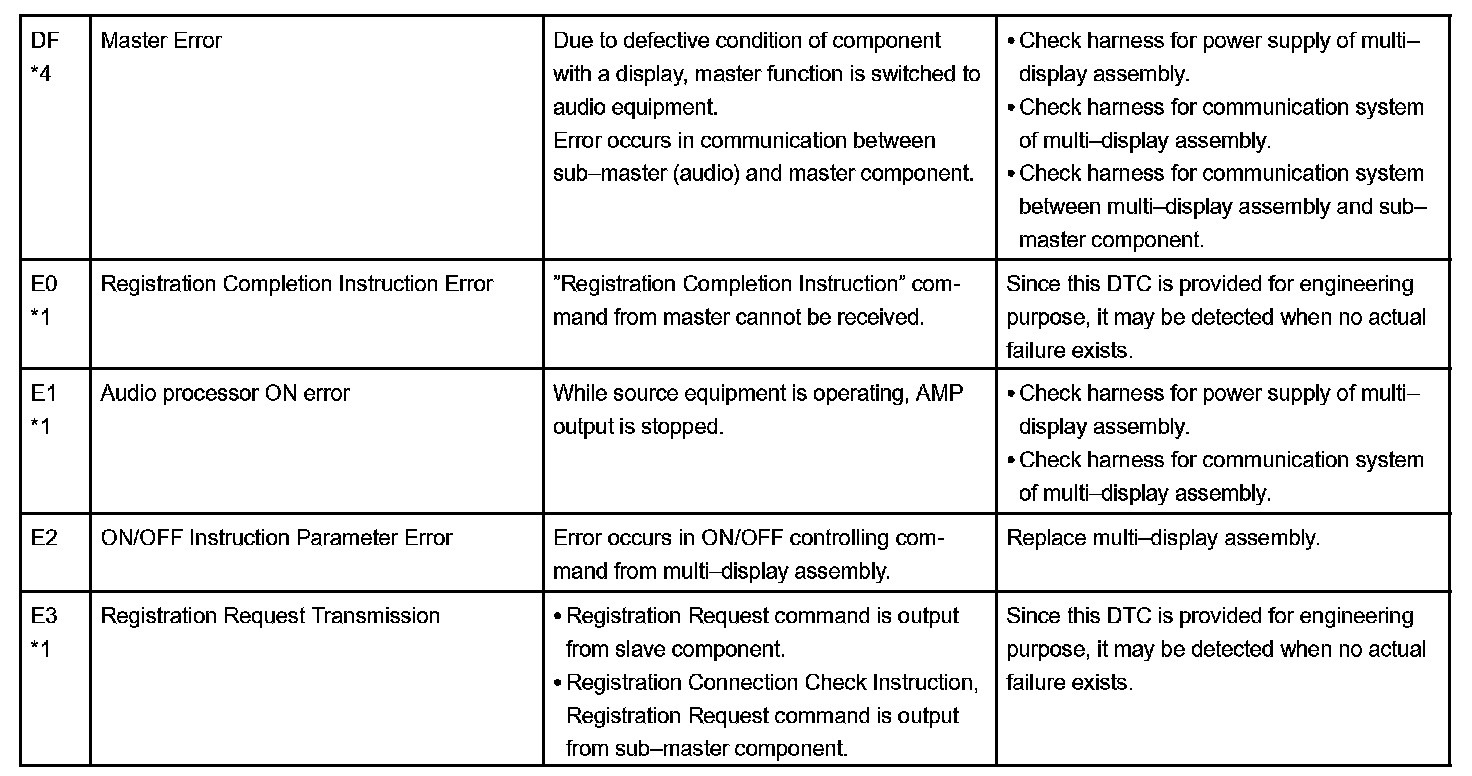

Logical address: 01 (Communication control)

6. PHYSICAL ADDRESS: 250 DVD AUTO CHANGER (DVD-CH)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

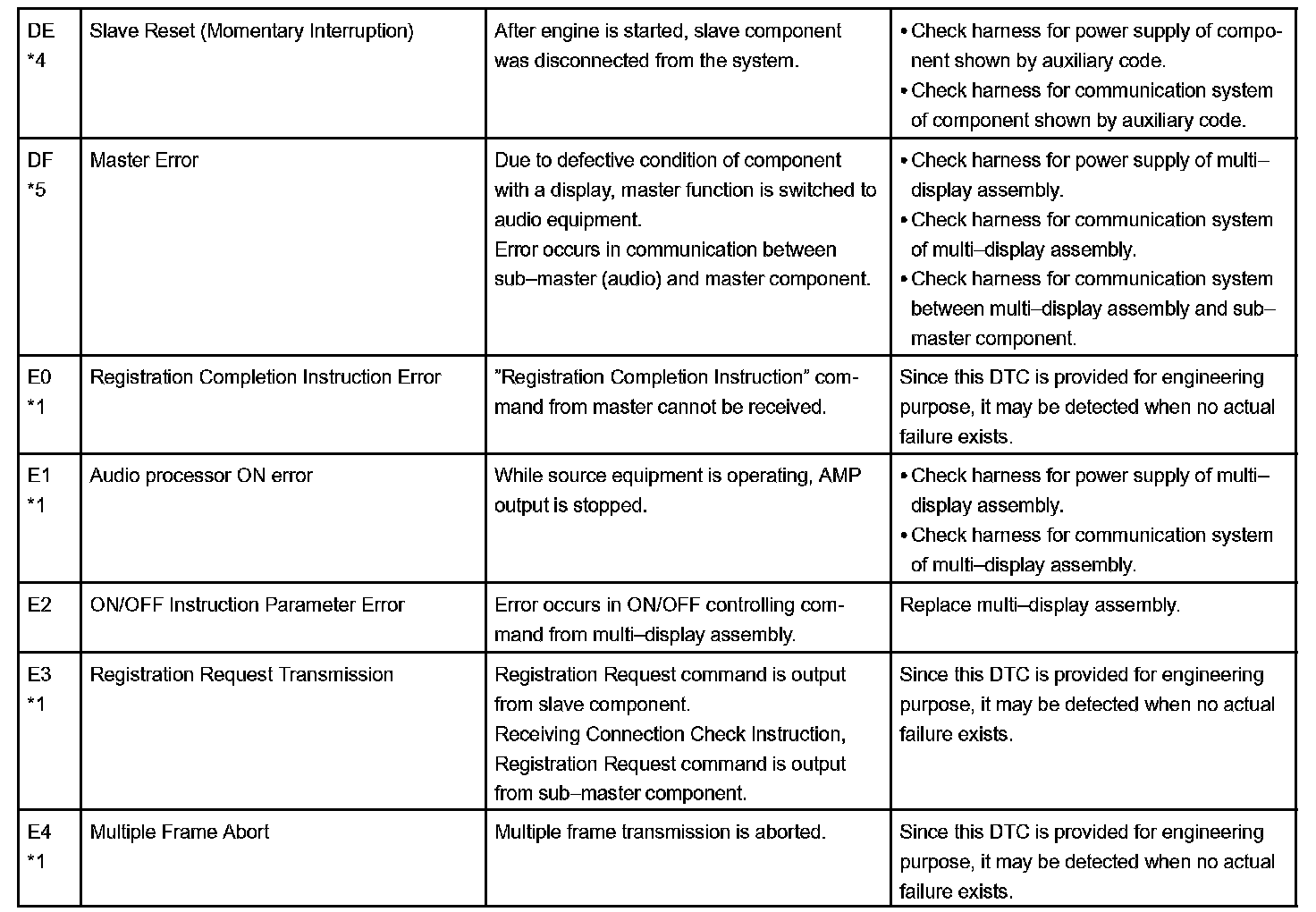

a. Logical address: 01 (Communication control)







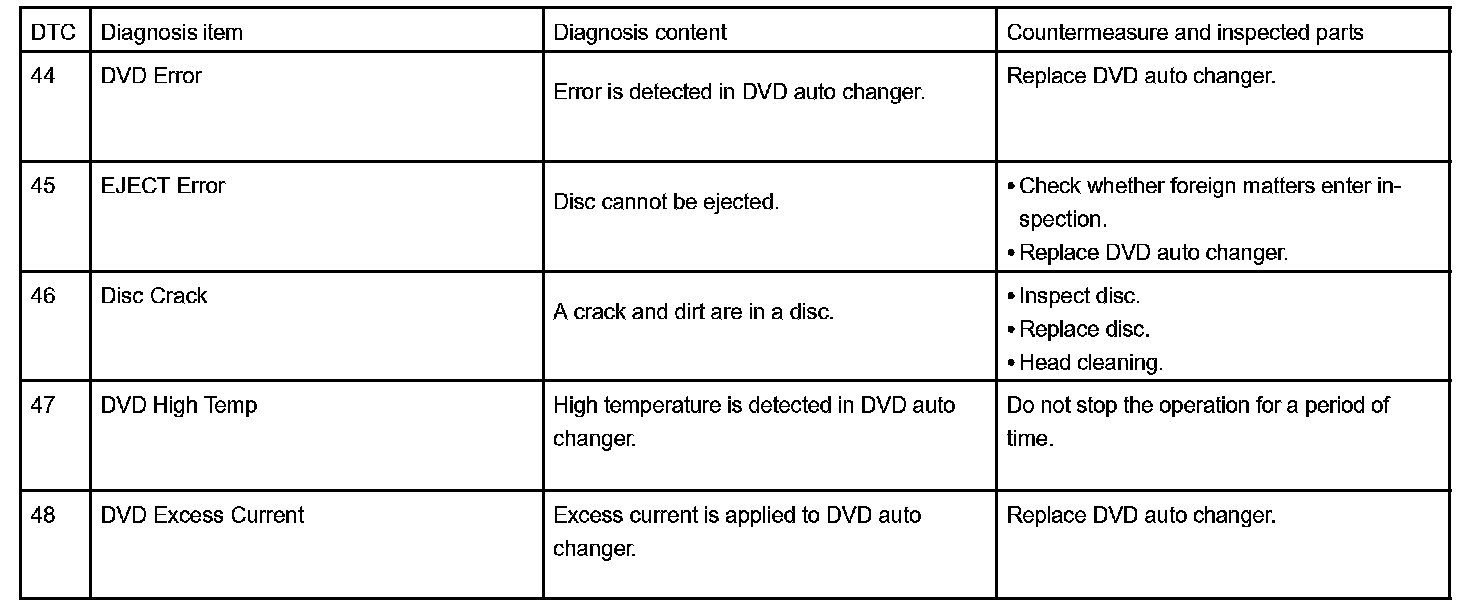

b. Logical address: 45 (DVD Changer)
