Radio, Stereo, and Compact Disc

DIAGNOSIS CODE LIST
w/ Navigation system

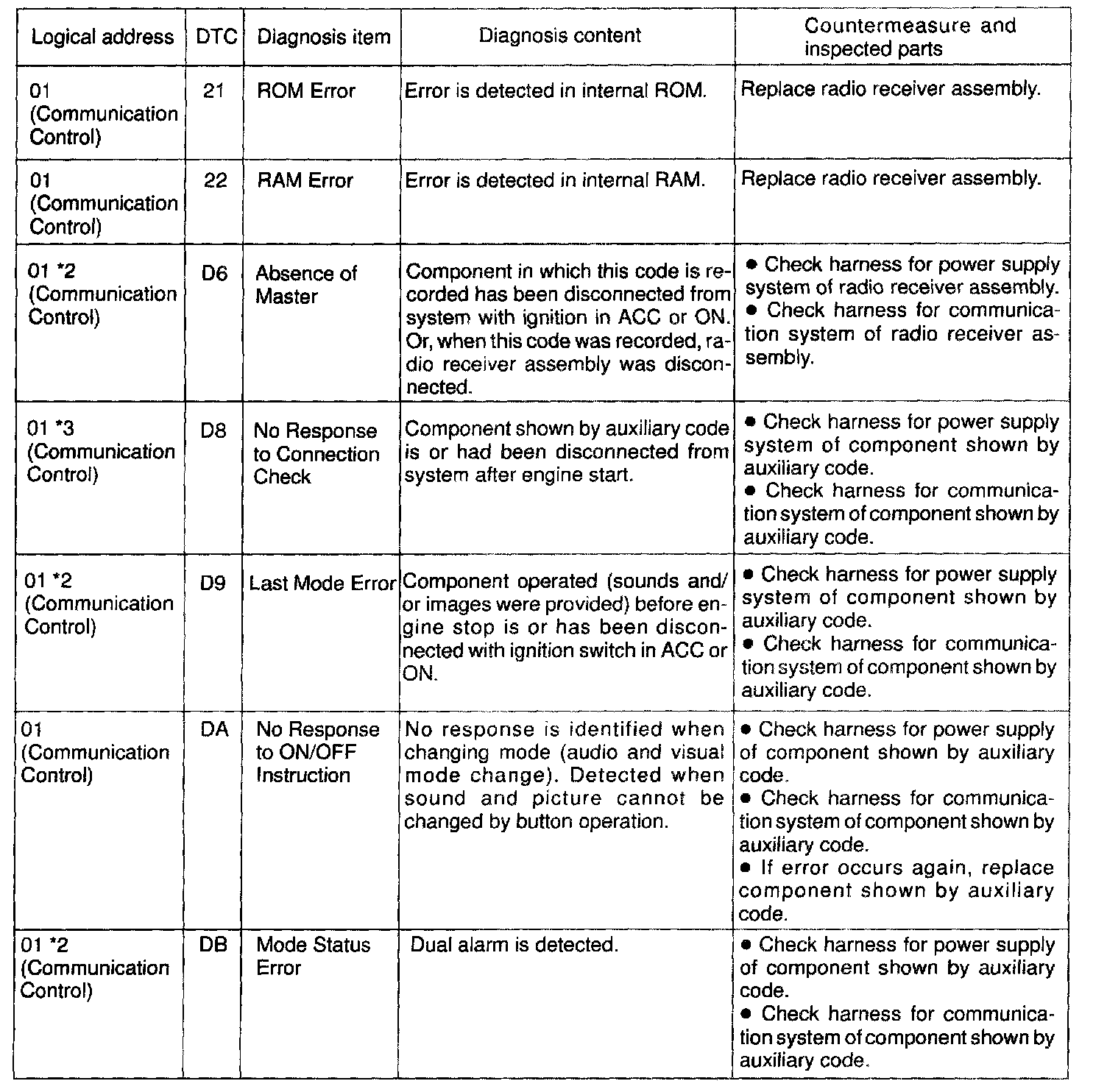

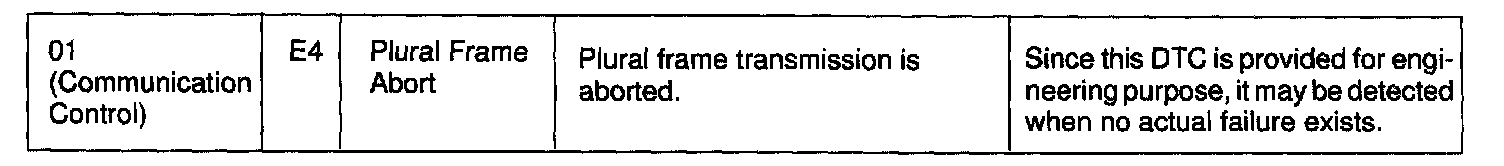

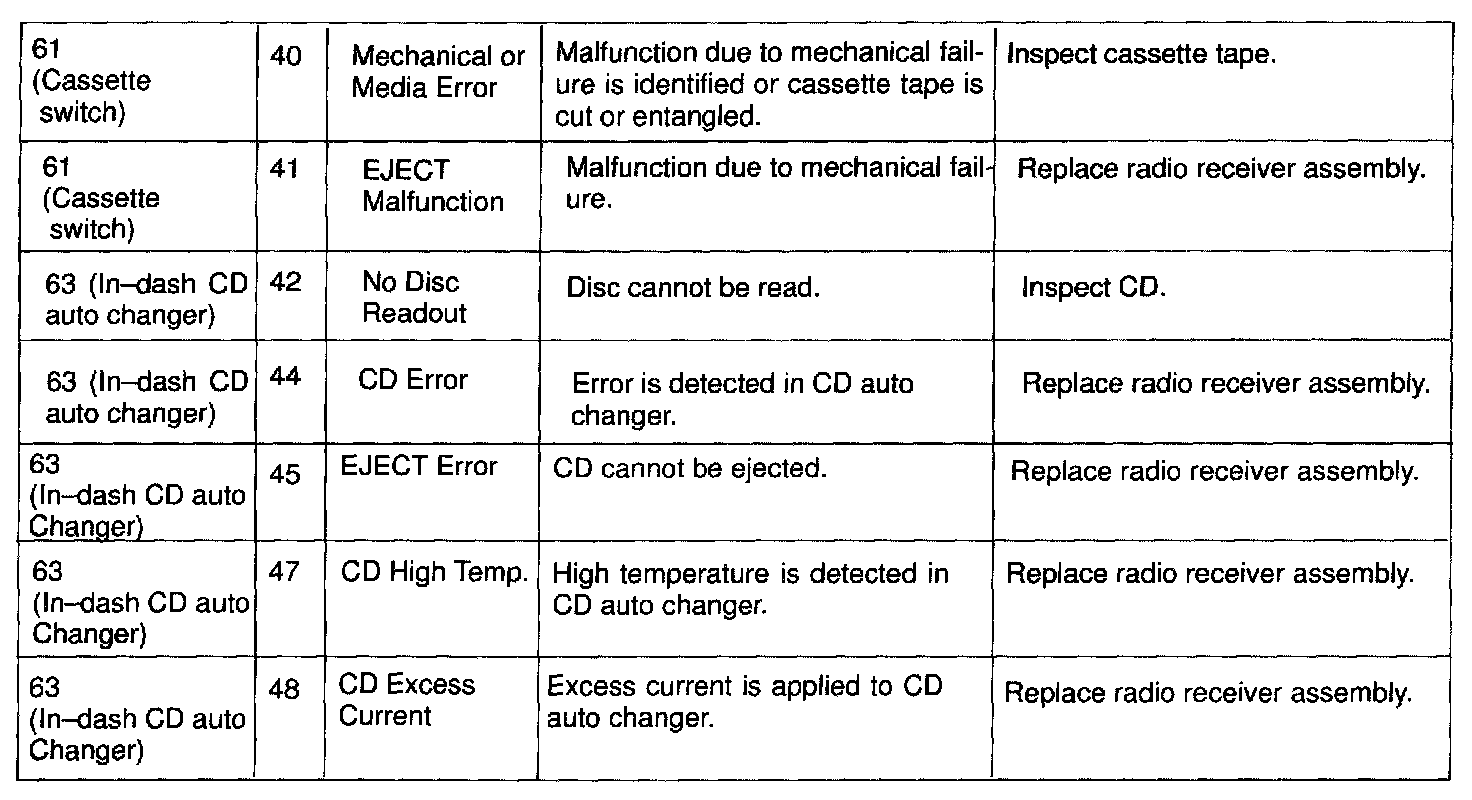

Physical address: 190 Radio receiver assembly

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned (again) (1 mm.) after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

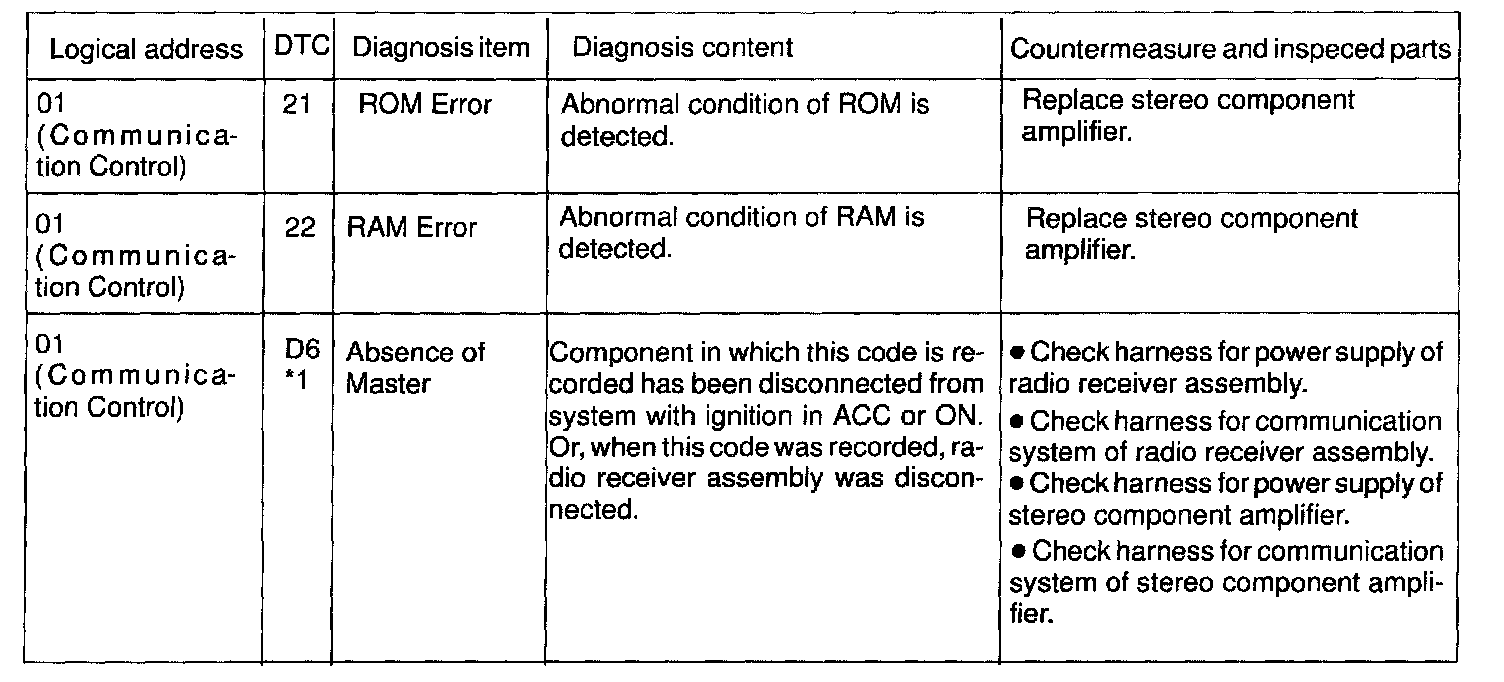

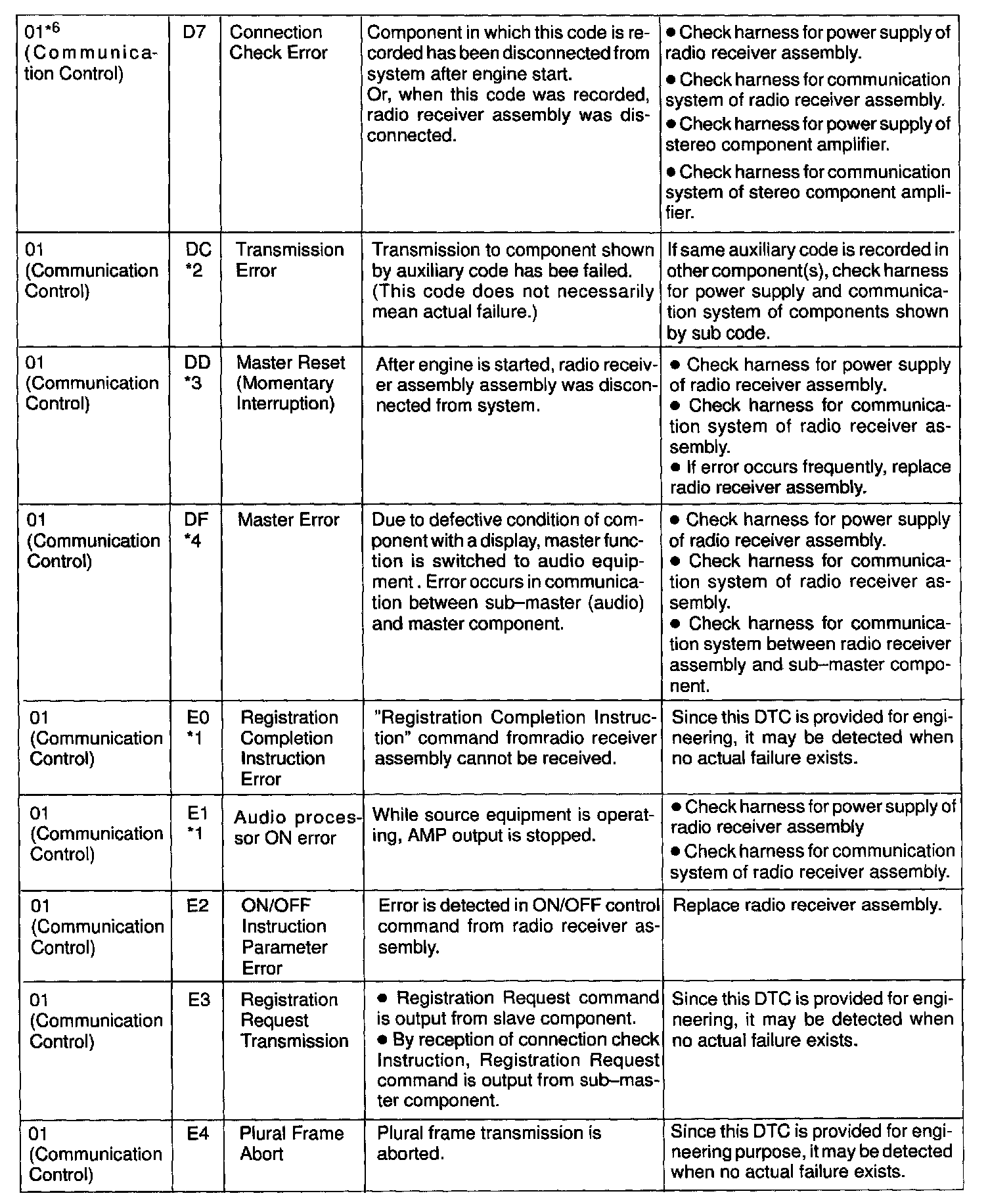

Physical address: 440 Stereo component amplifier

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned (again) (1 mm.) after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

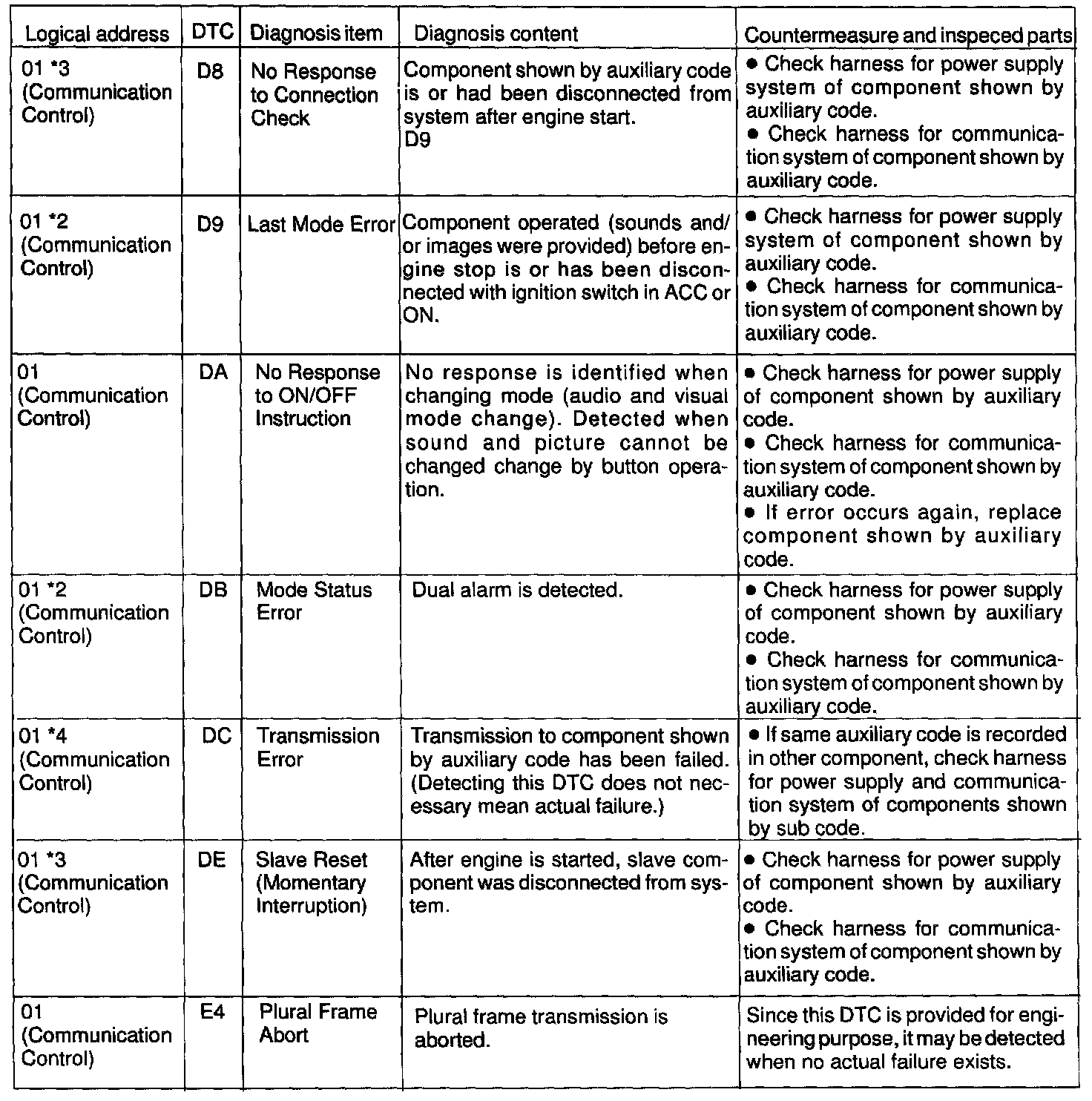

Physical address: 1F4 RSA Panel (Main AVC-LAN)

HINT:
- *1: Even if no failure is detected, it maybe stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned (again) (1 mm.) after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.




Physical address: 1 6A, 1 5C RSA Panel (Sub AVC-LAN)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned (again) (1 mm.) after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.







Physical address: 250 DVD Auto Changer

HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code may be stored when the engine key is turned again 1 mm. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
