Steering System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to respective "DTC No." in the DTC chart.

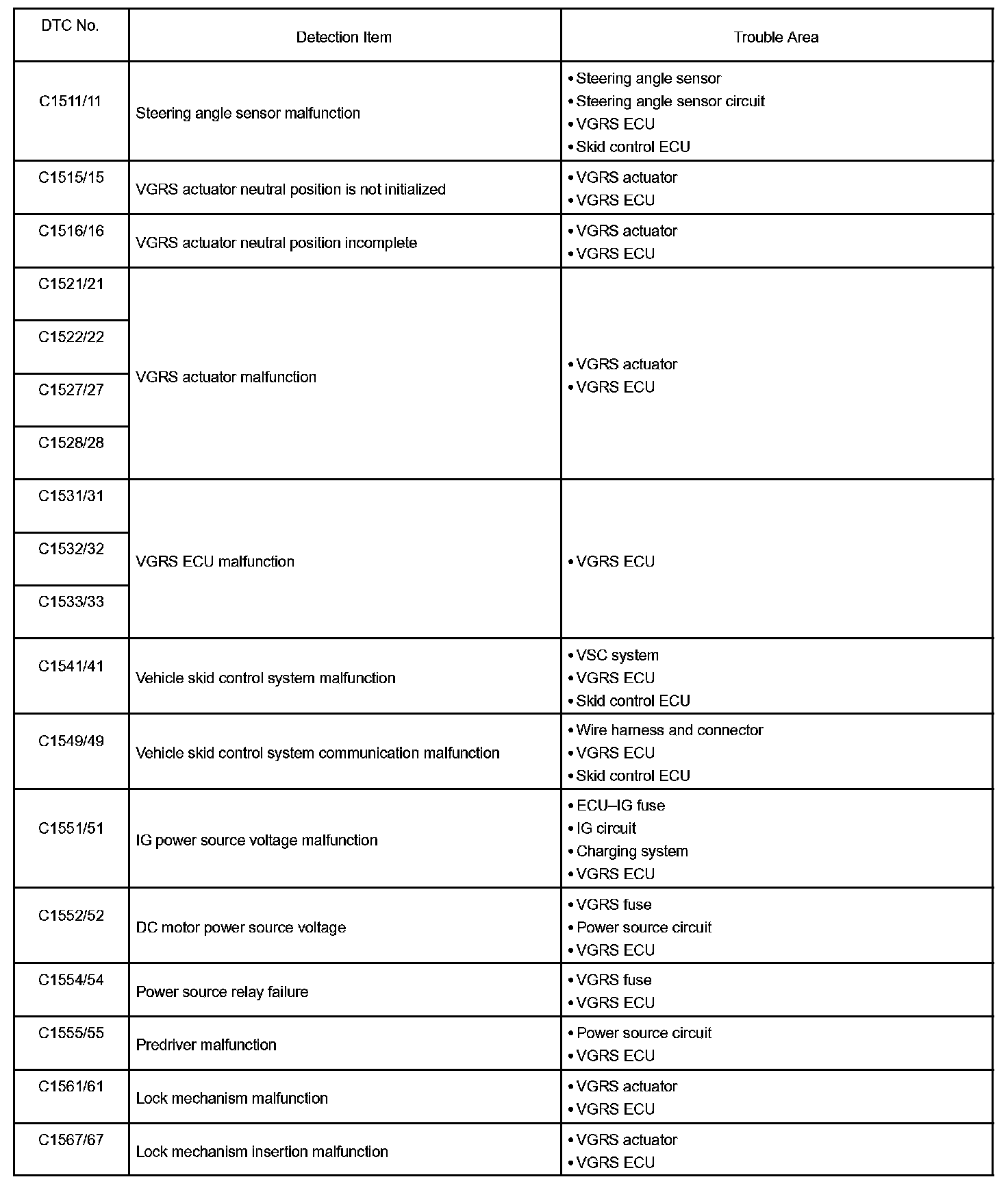

C1511/11 - C1567/67:

C1568/68 - C1569/69:

DTC chart of VGRS system

C1571/71 - C1576/76:

DTC of VGRS sensor check function
