Collision Avoidance and Parking Assist Systems: Locations

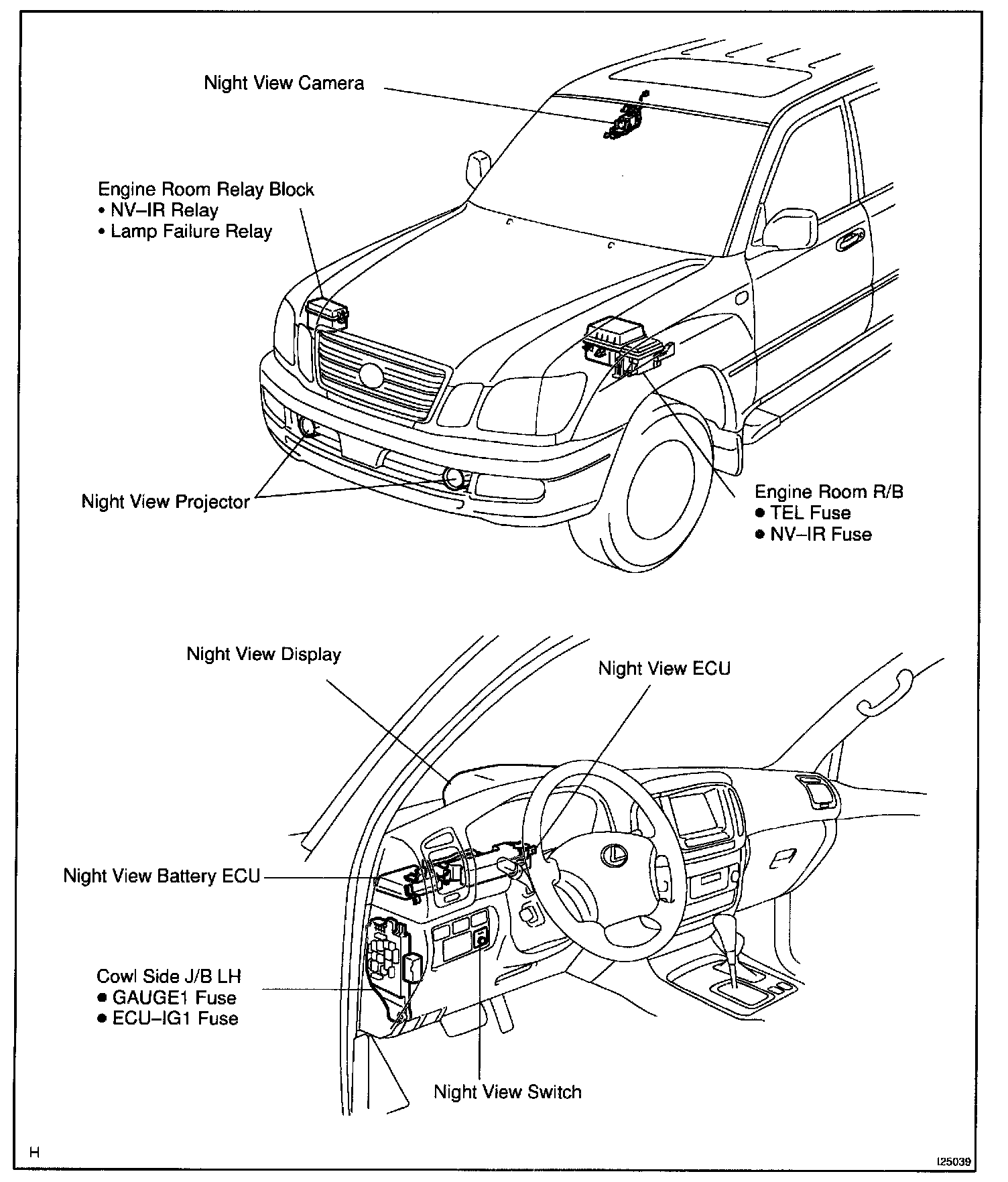

Lexus Night View System:

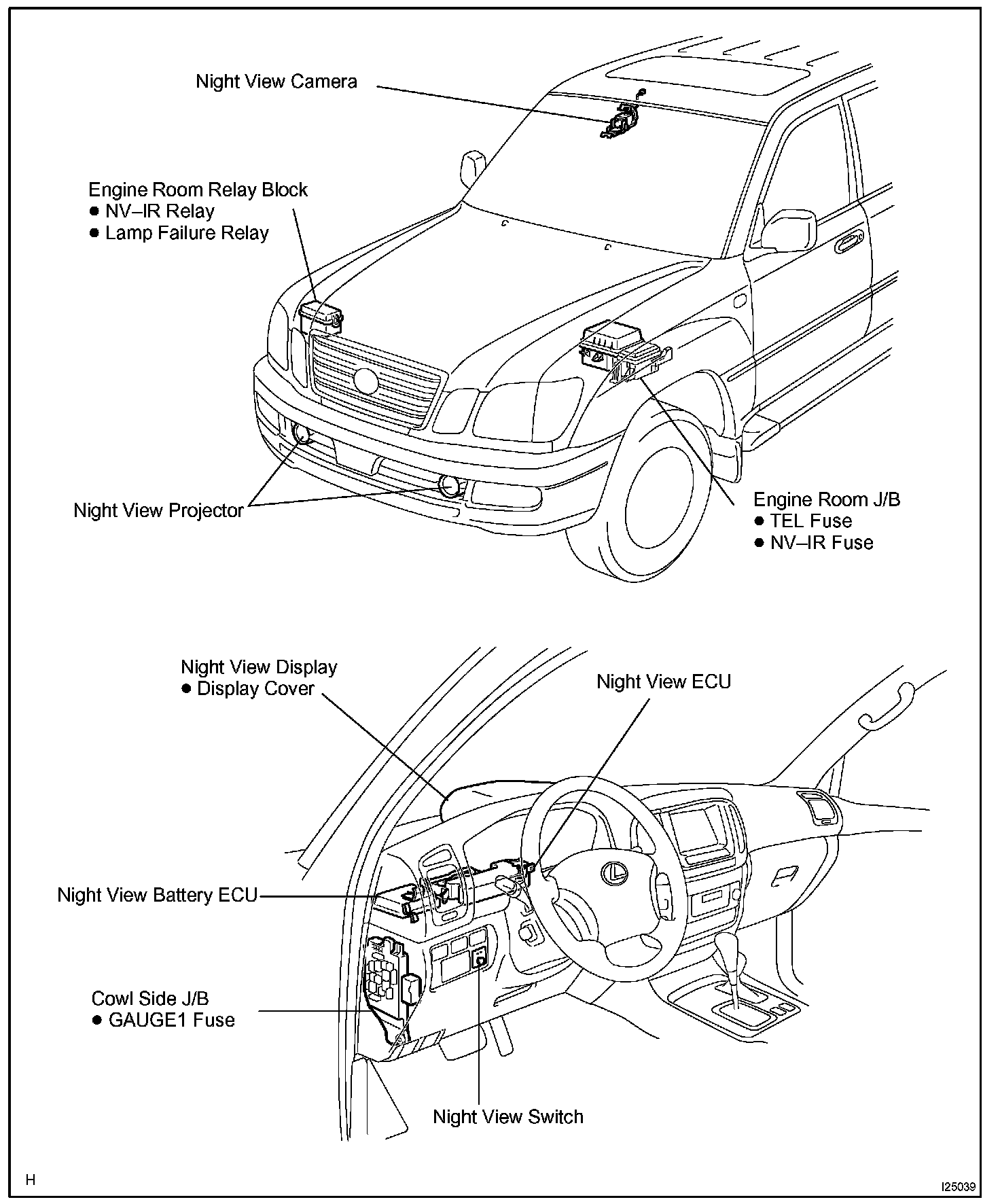

LEXUS Night View System:

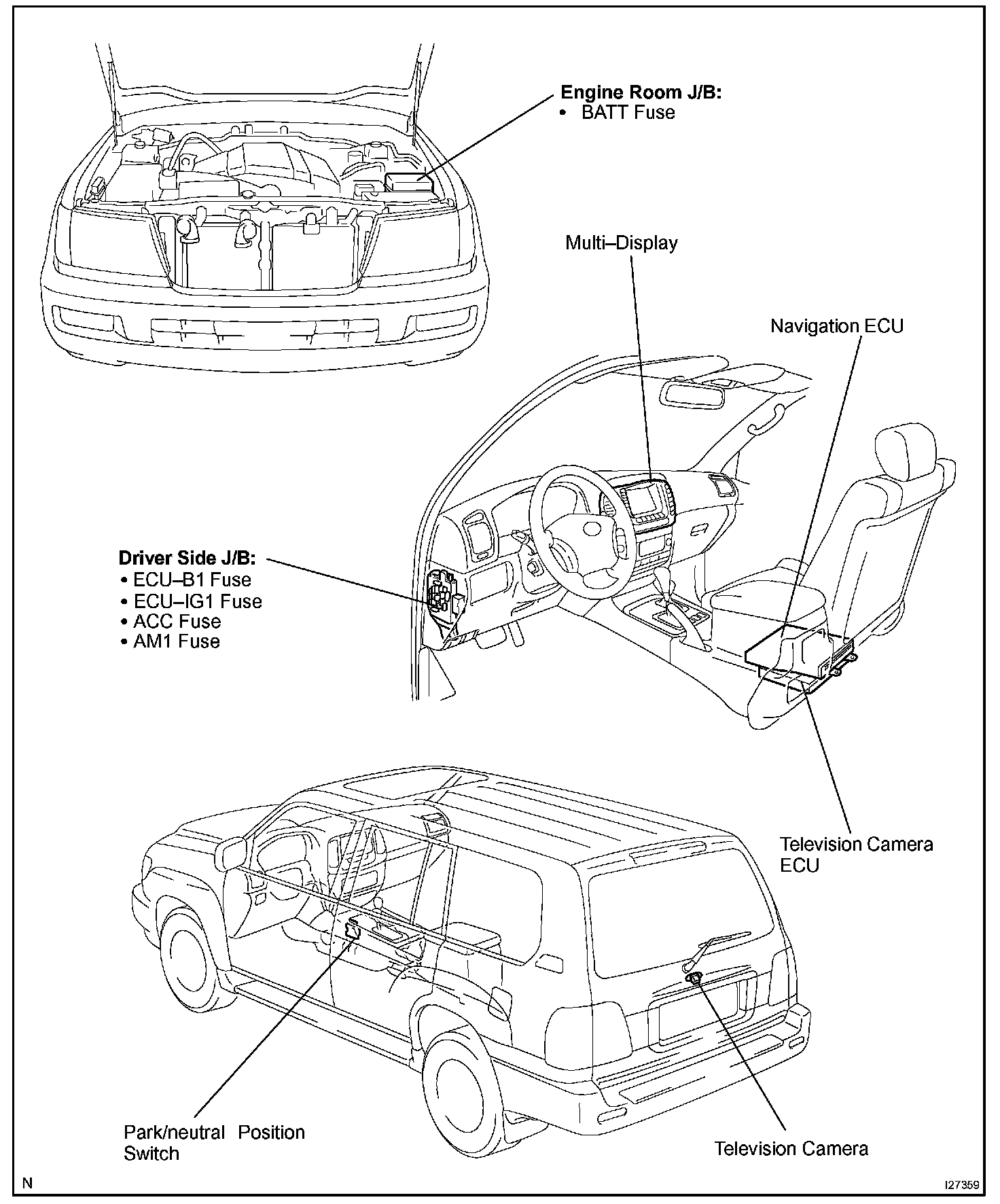

Rear View Monitor System:
