Lexus Truck
>>
2004
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

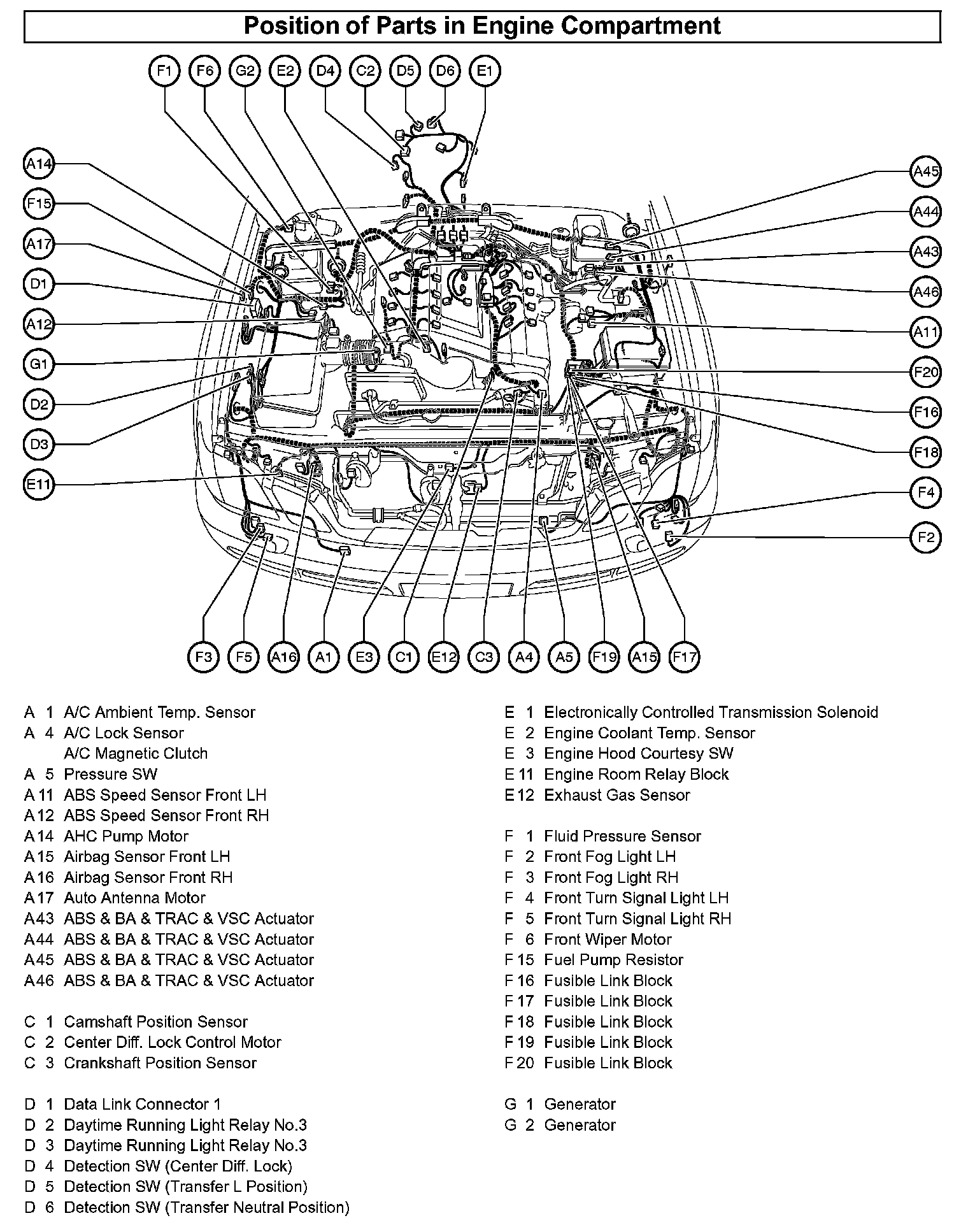

Position of Parts In Engine Compartment
Position of Parts In Engine Compartment
A/C - Ge:
Pa - Wo:
Rain Sensor System:
Body Control System:
