Damping Control Actuator
Damping Control Actuator

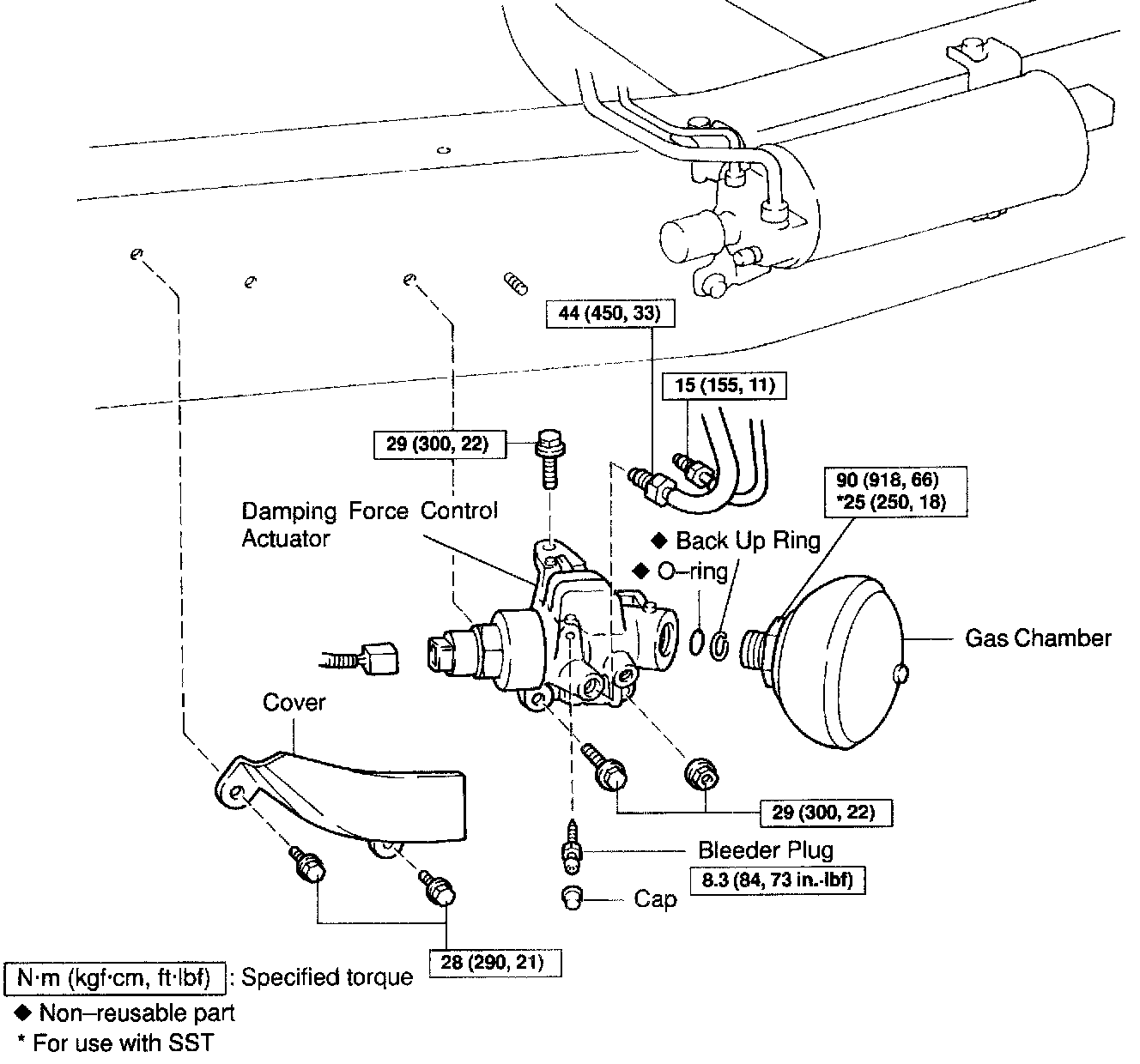

DAMPING FORCE CONTROL ACTUATOR REPLACEMENT W/ RELATED COMPONENTS
