Suspension Spring ( Coil / Leaf )
Suspension Spring ( Coil / Leaf )

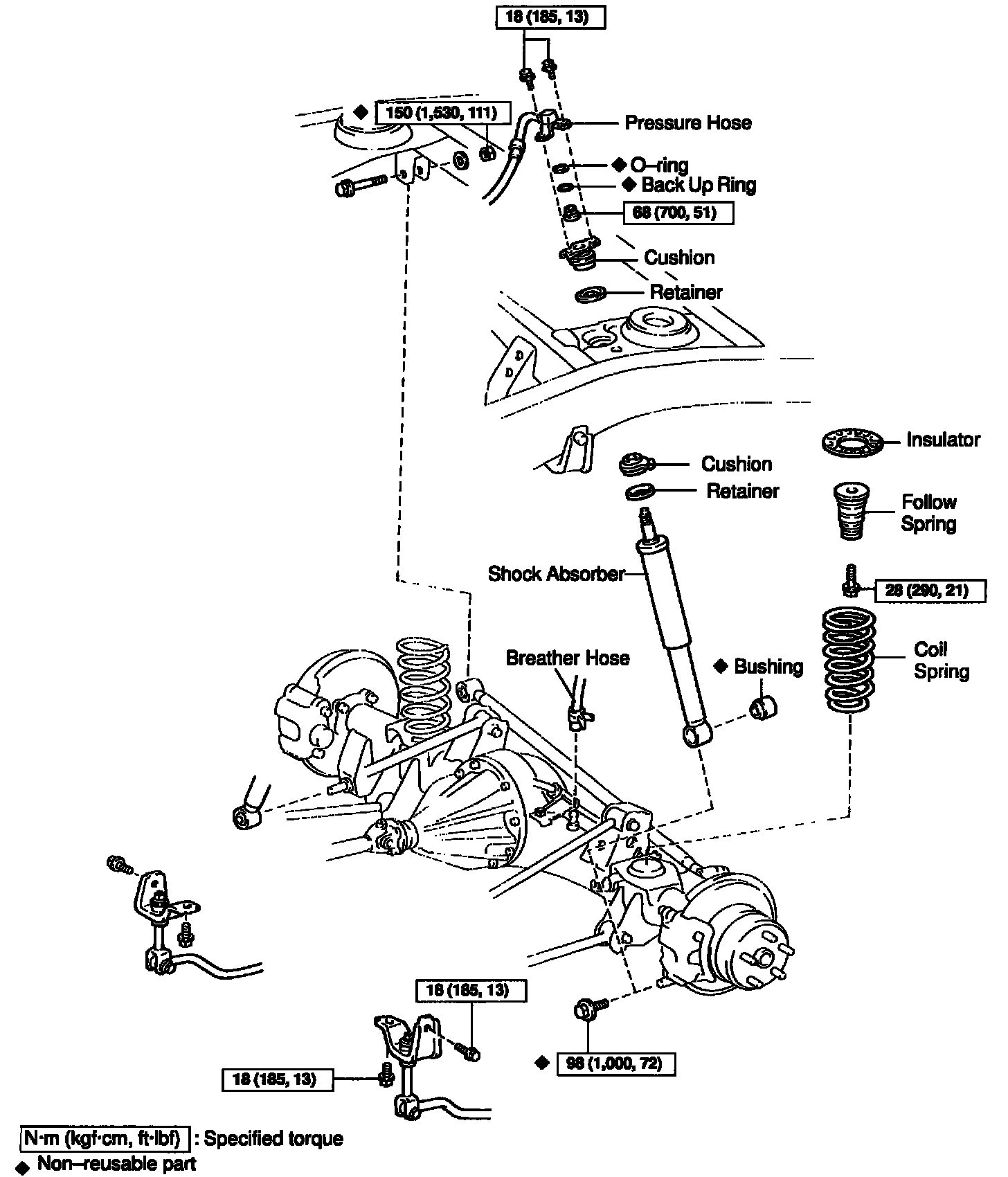

COIL SPRING AND REAR SHOCK ABSORBER REPLACEMENT W/ RELATED COMPONENTS
