MAGNETIC CLUTCH RELAYINSPECTION
HINT:

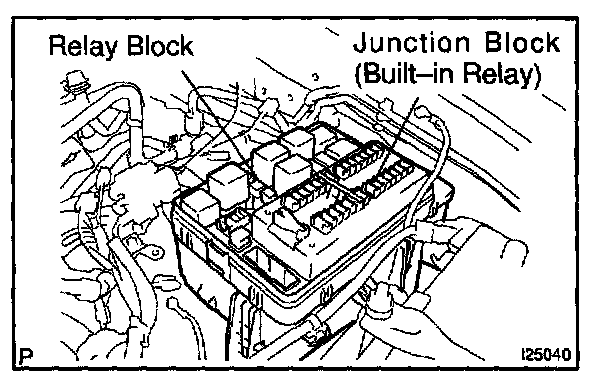

The magnetic clutch relay is built in the engine room junction block. Since the relay is constructed with a relay block that is in the junction block as a unit, it is impossible to disconnect the wire harness connecting with the relay block.
If the relay has a malfunction, replace it with the junction block assembly wireharness together.
1. REMOVE ENGINE ROOM J/B

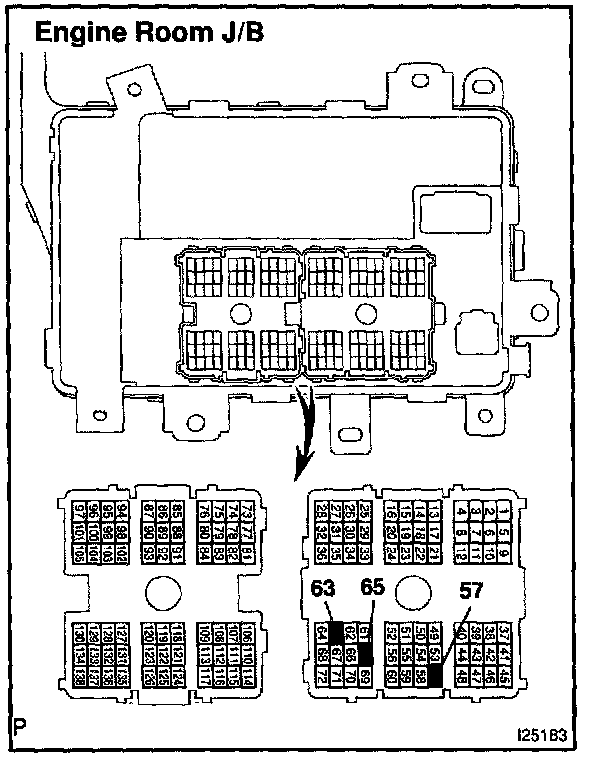

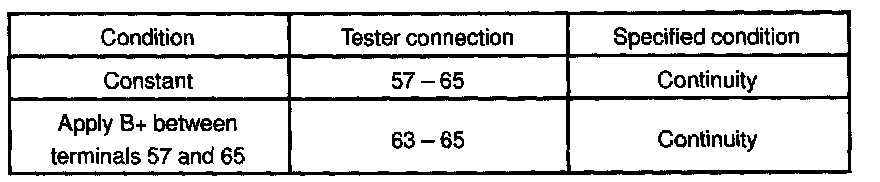

2. INSPECT MAGNETIC CLUTCH RELAY CONTINUITY
If continuity is not as specified, replace the engine room J/B.
3. INSTALL ENGINE ROOM J/B
