Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2004
>>
LX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Coolant Temperature Sensor / Switch HVAC
>>
Locations
Coolant Temperature Sensor / Switch HVAC: Locations
Engine:

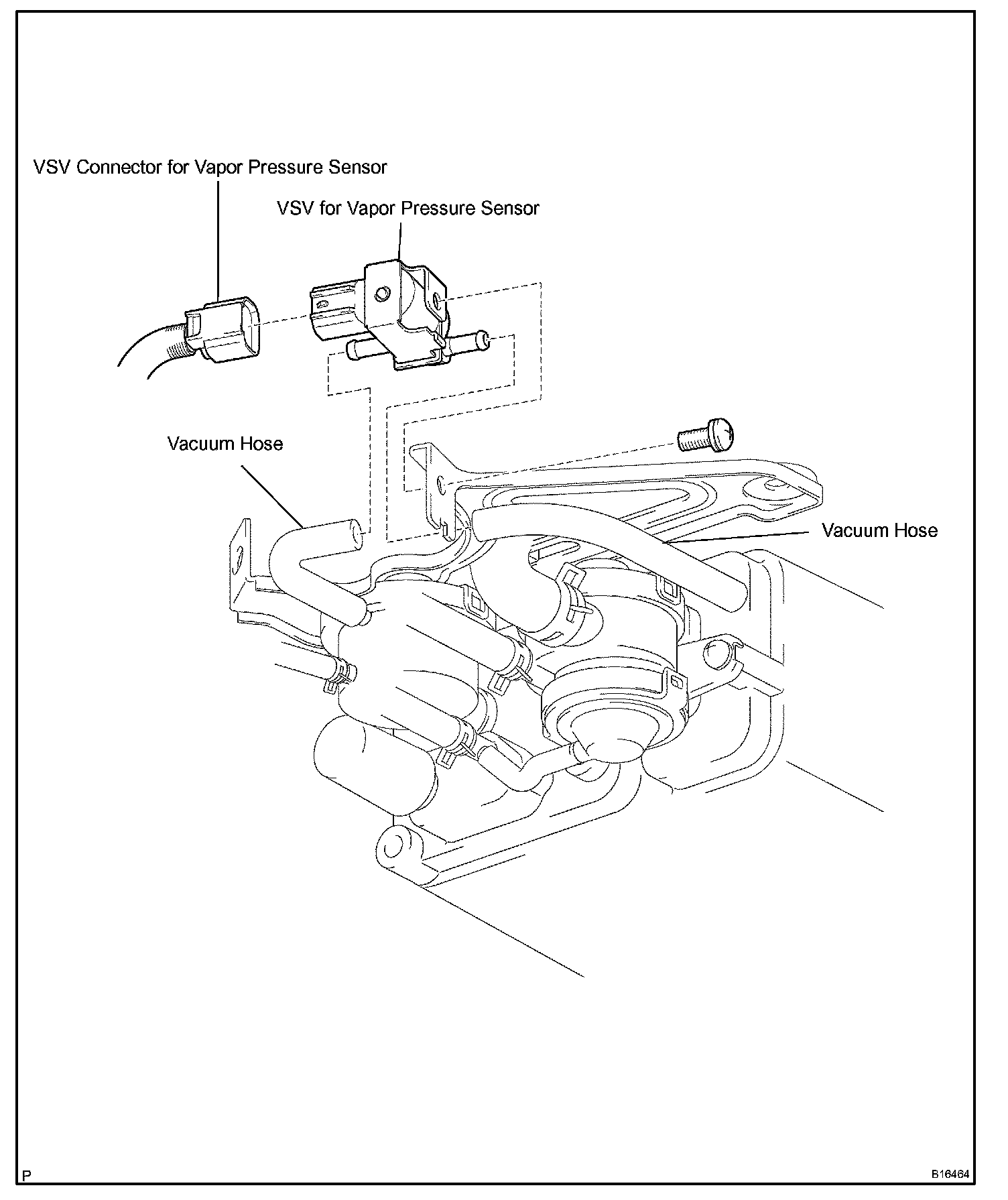

VSV For Vapor Pressure Sensor:

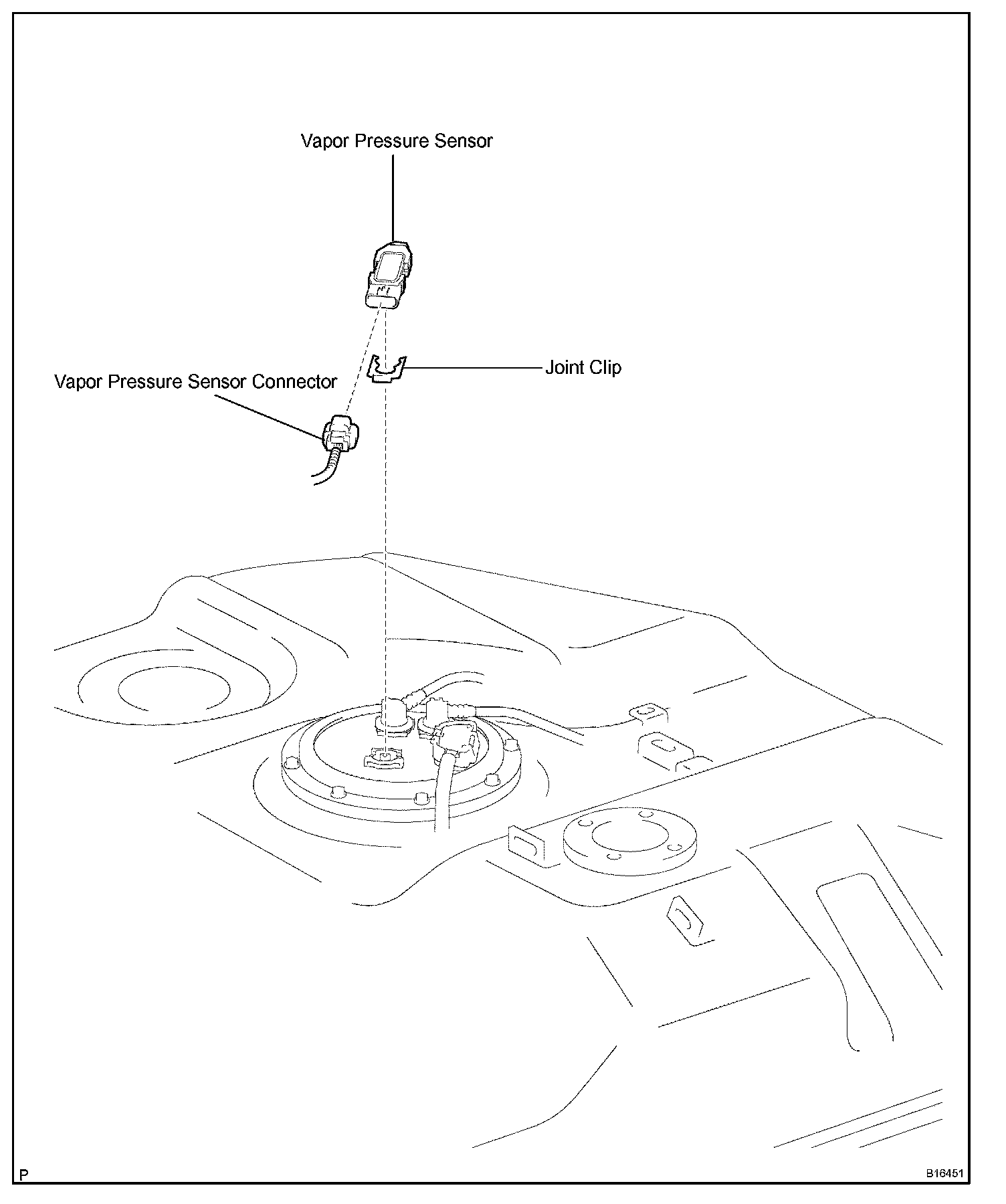

Vapor Pressure Sensor:
