Clock: Testing and Inspection

TROUBLESHOOTING






HINT:

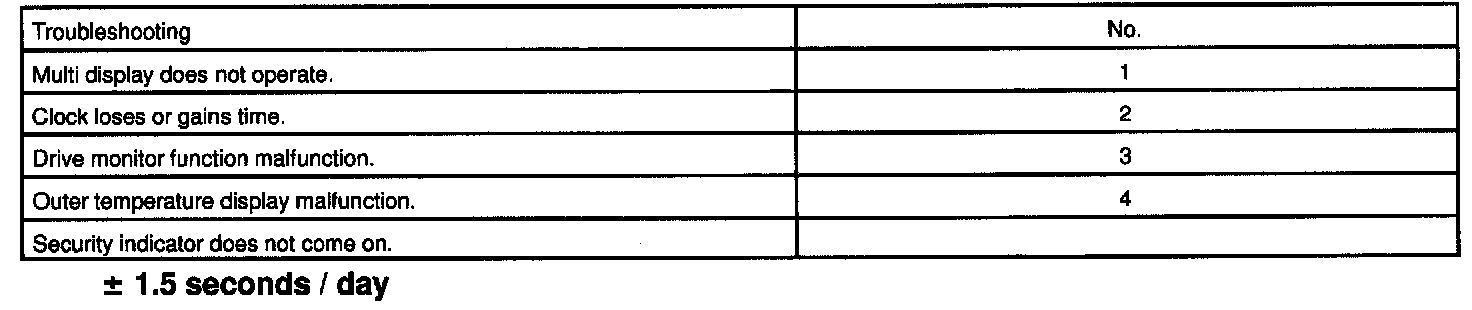

- Troubleshoot the Multi Display according to the table.
- W/ LEXUS Navigation System

Part 1:

Part 2:

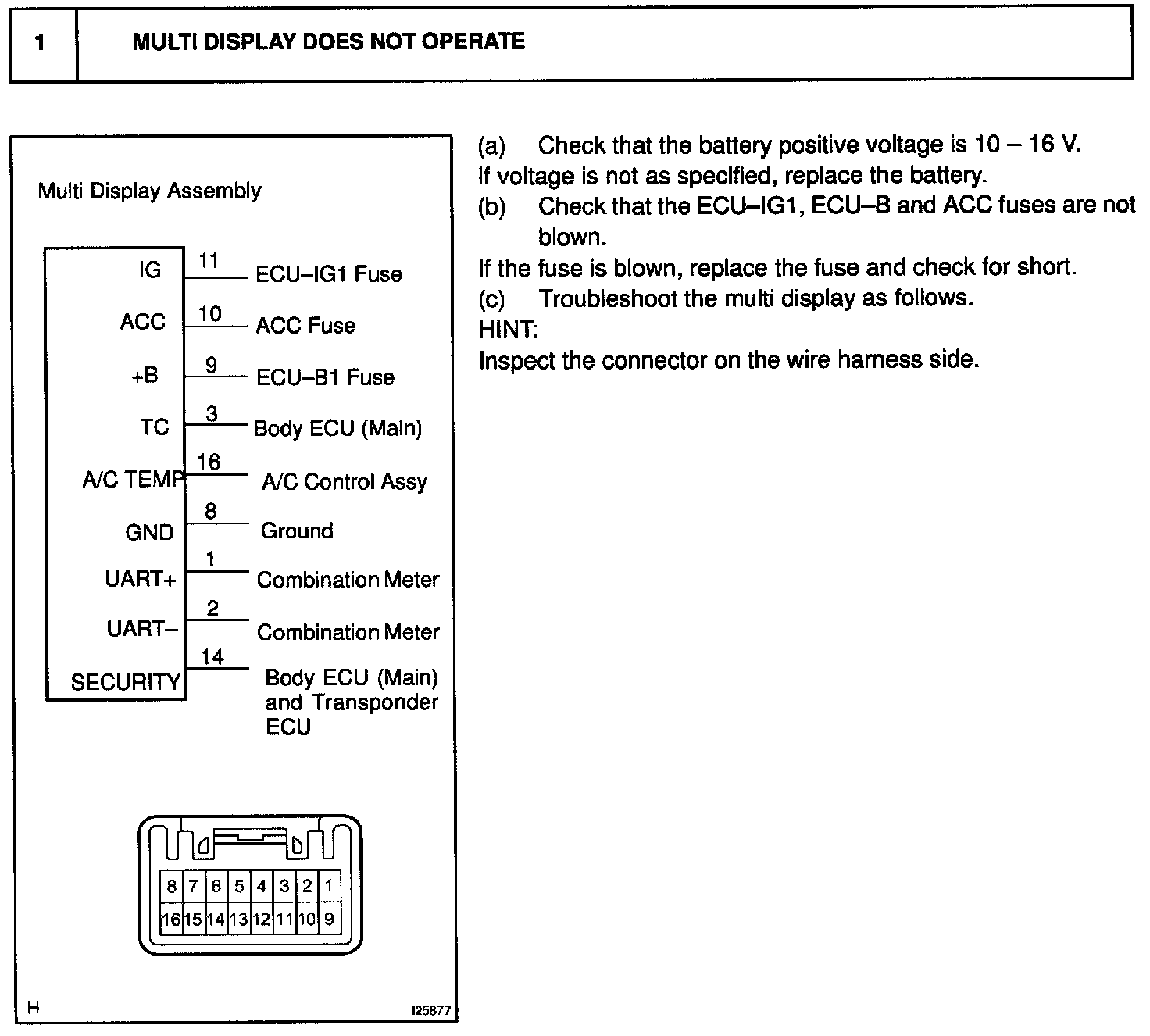

1. TROUBLESHOOTING NO.1

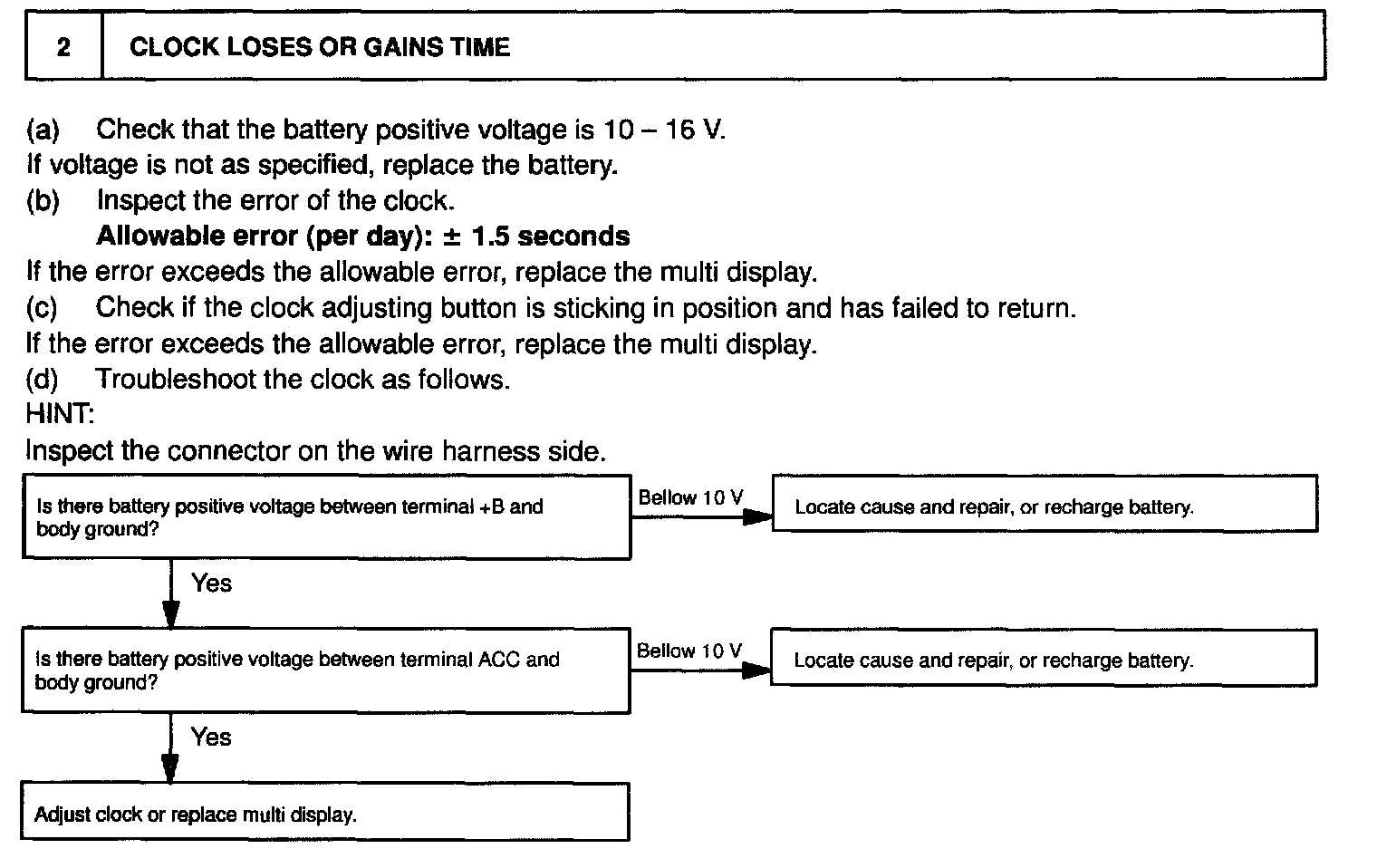

2. TROUBLESHOOTING NO.2

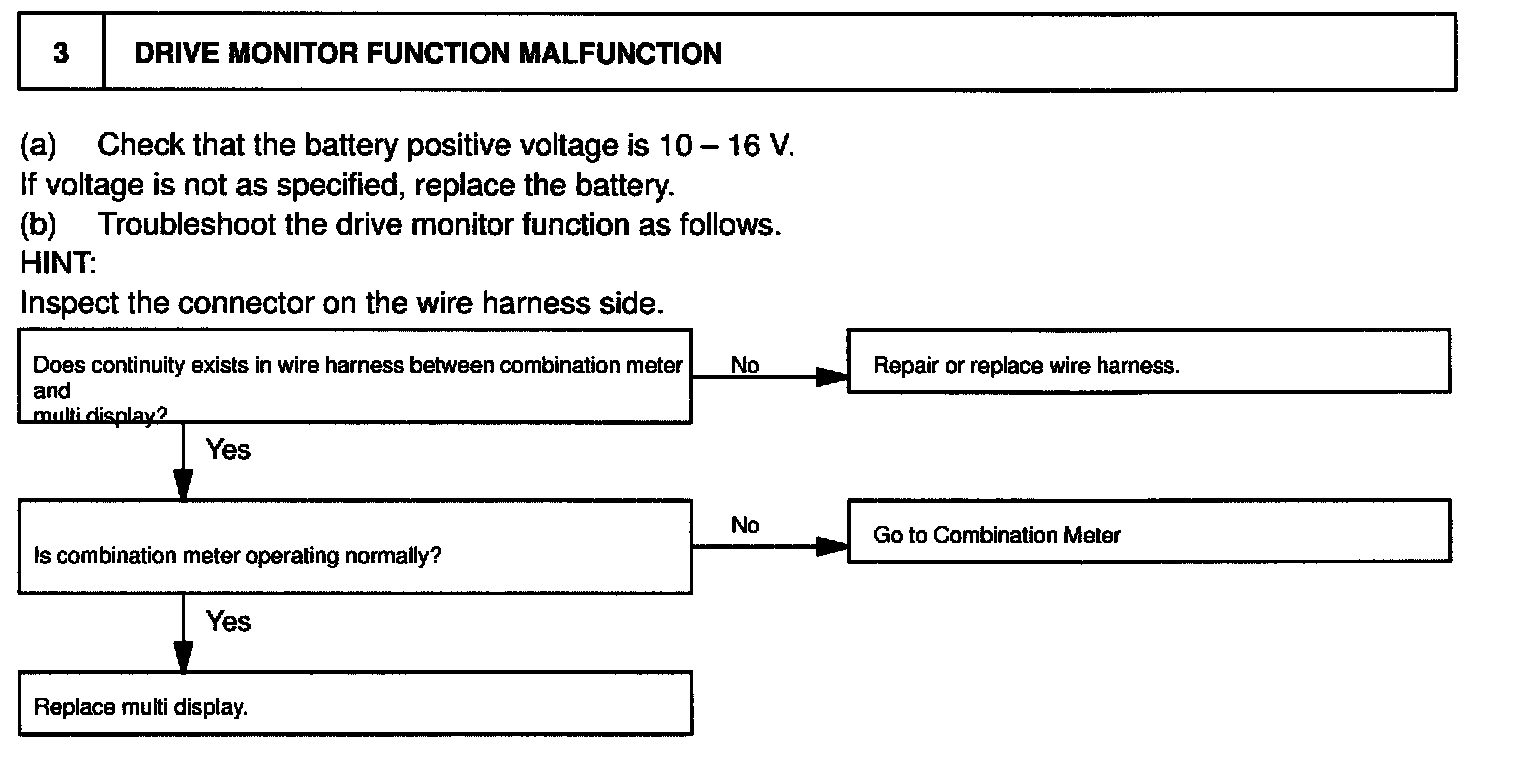

3. TROUBLESHOOTING NO.3




4. TROUBLESHOOTING NO.4
