Multiple Junction Connector: Locations

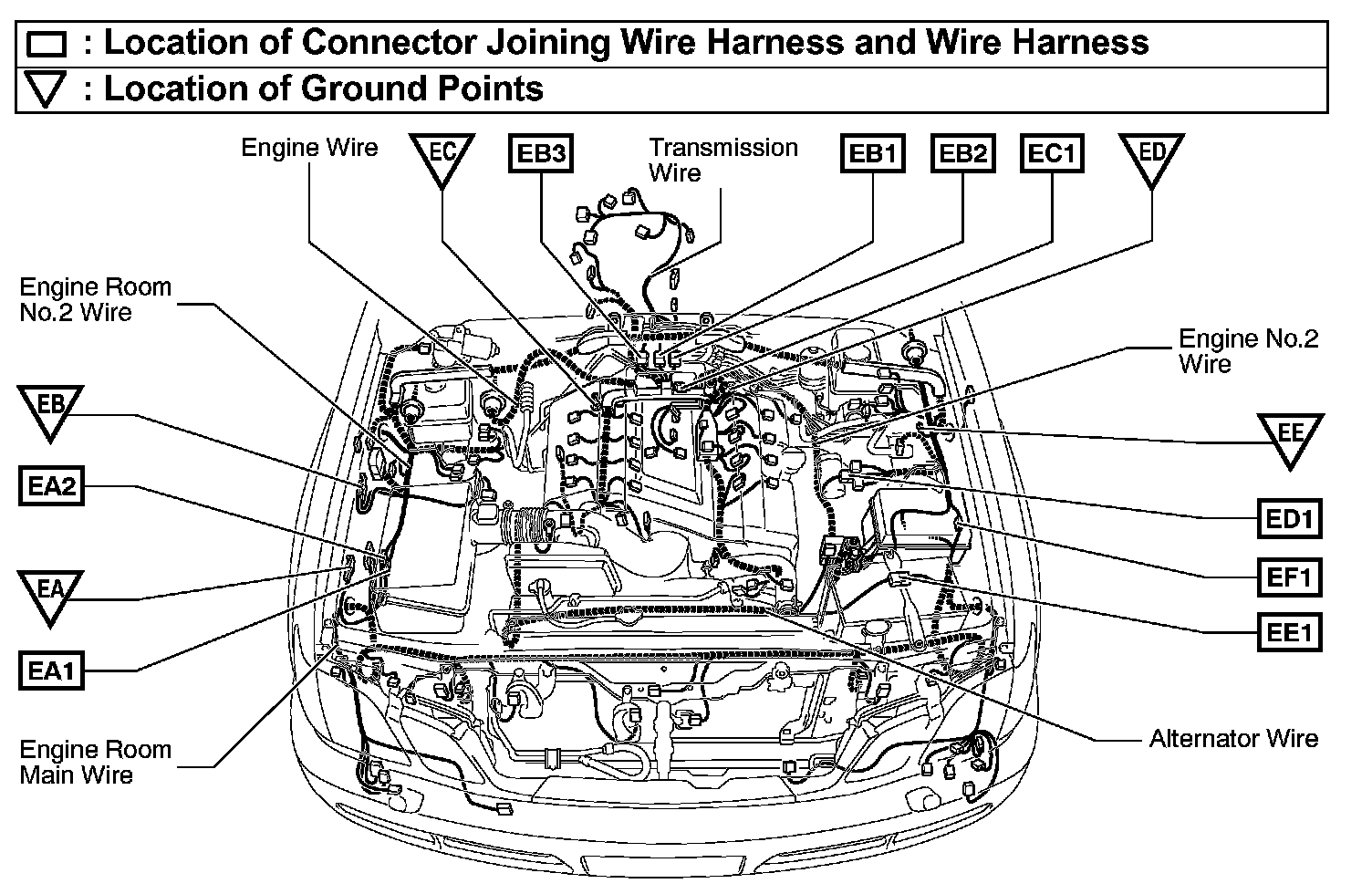

EA1 - EF1, EA - EE:

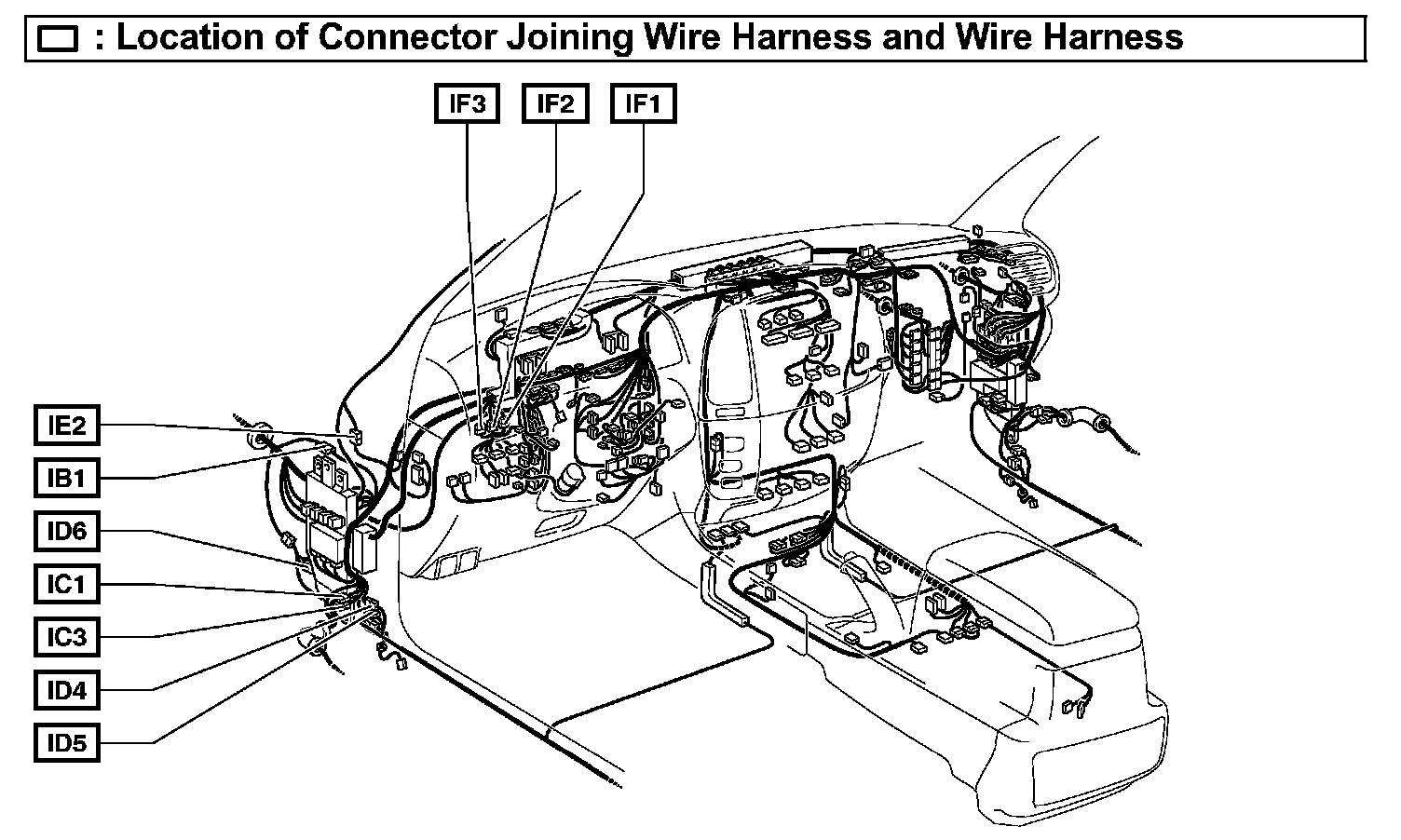

IB1 - IF3:




IG5 - IO3:

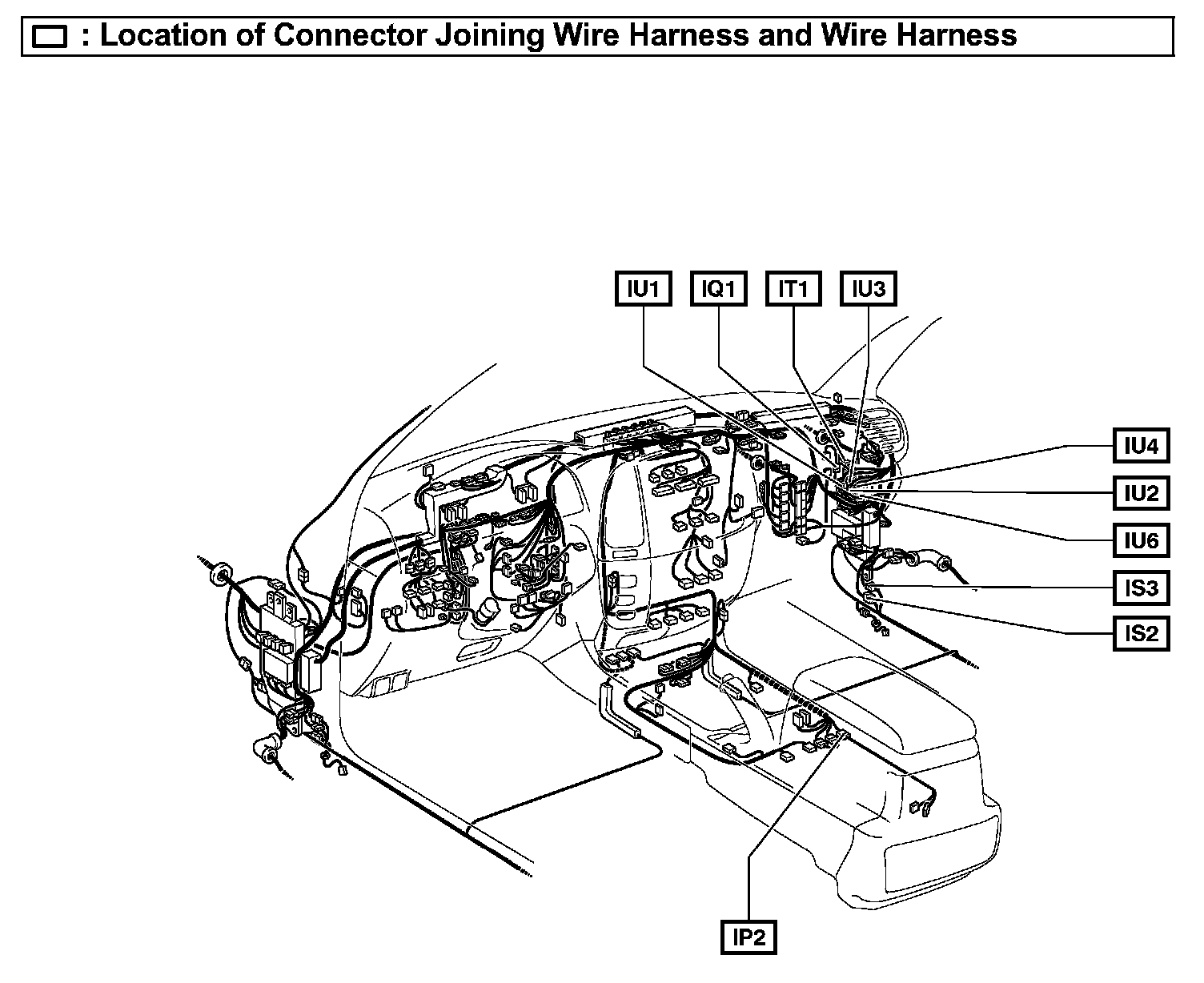

IP2 - IU6:

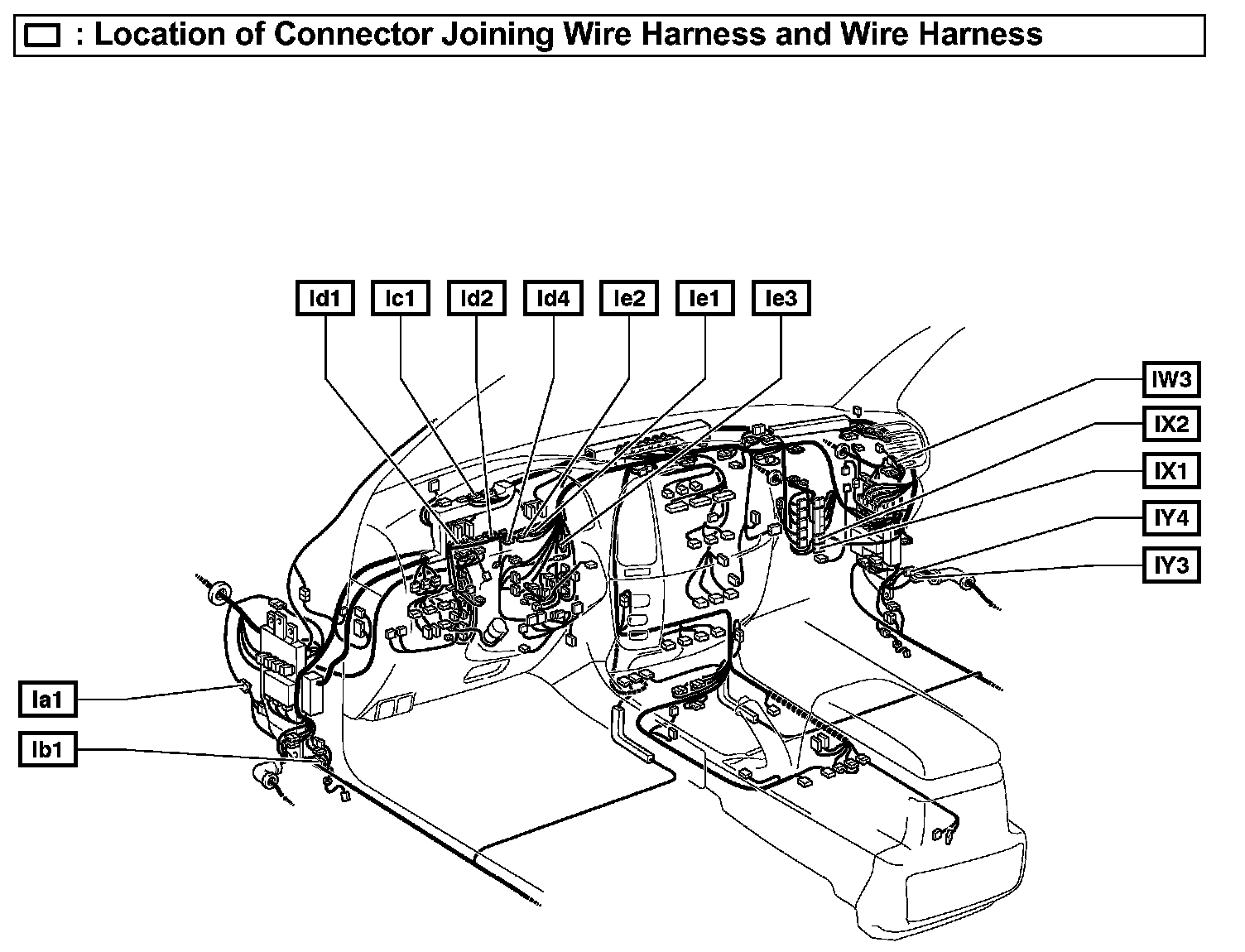

Ia1 - Iw3:

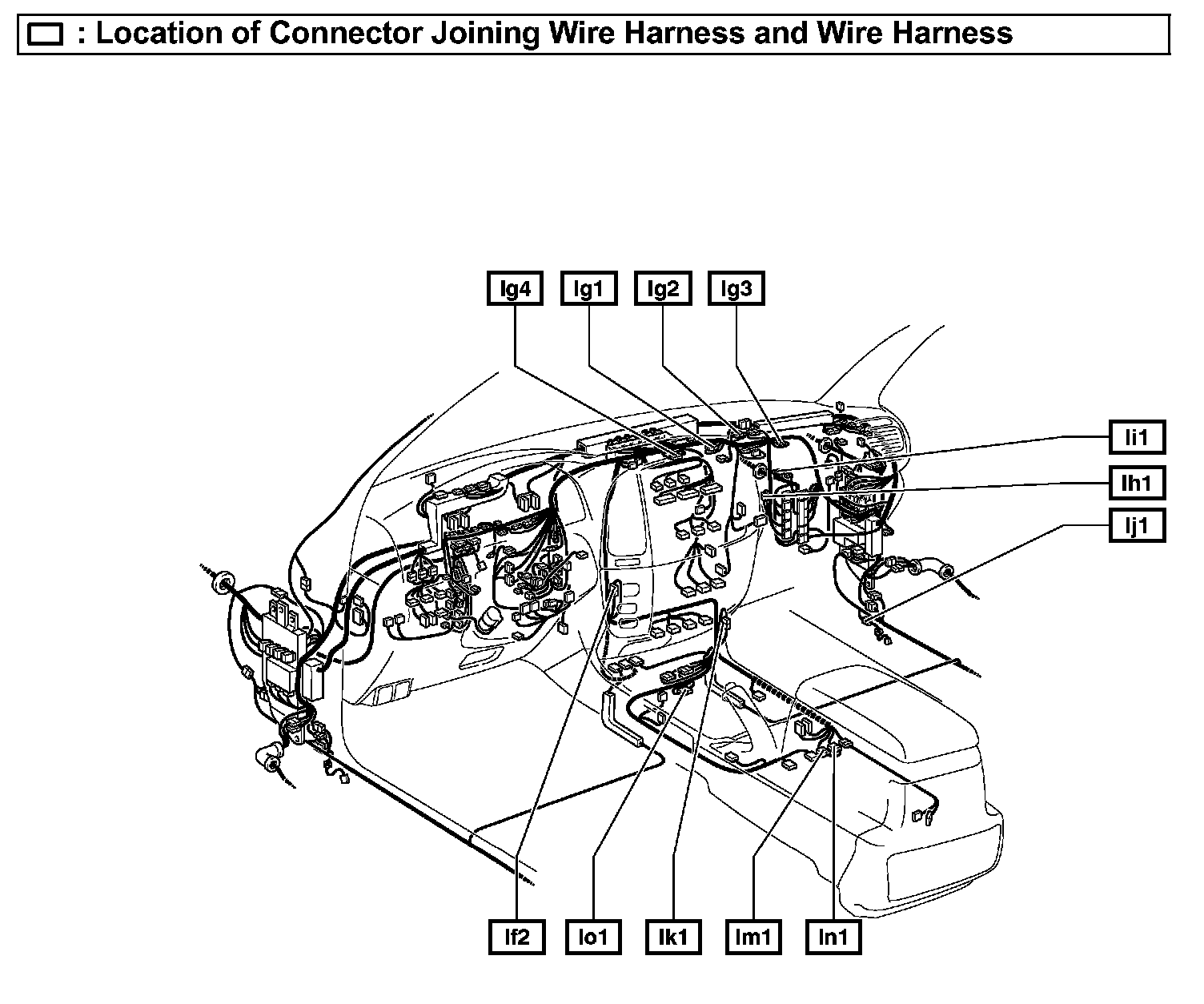

If2 - Io1:

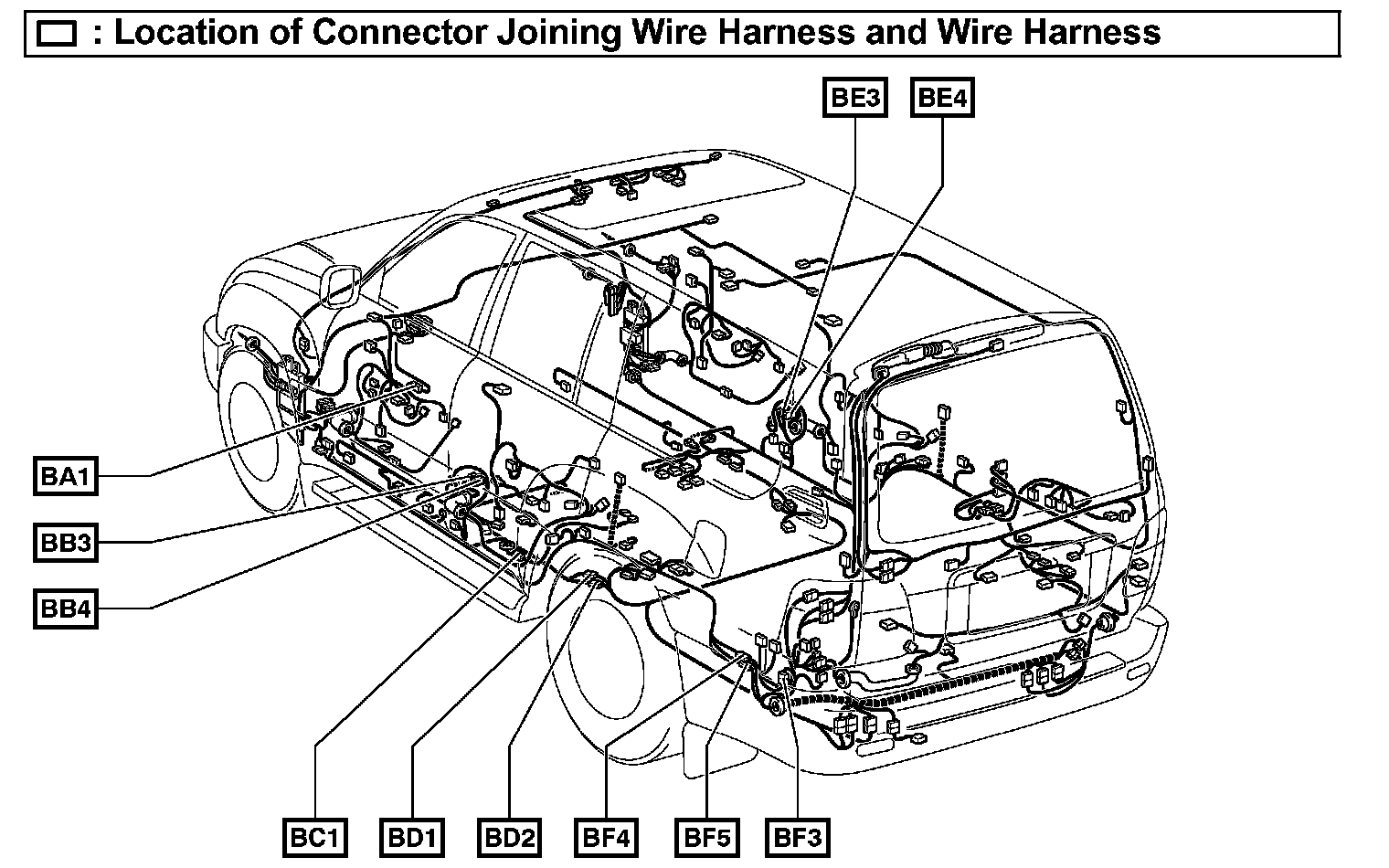

BA1 - BF5:

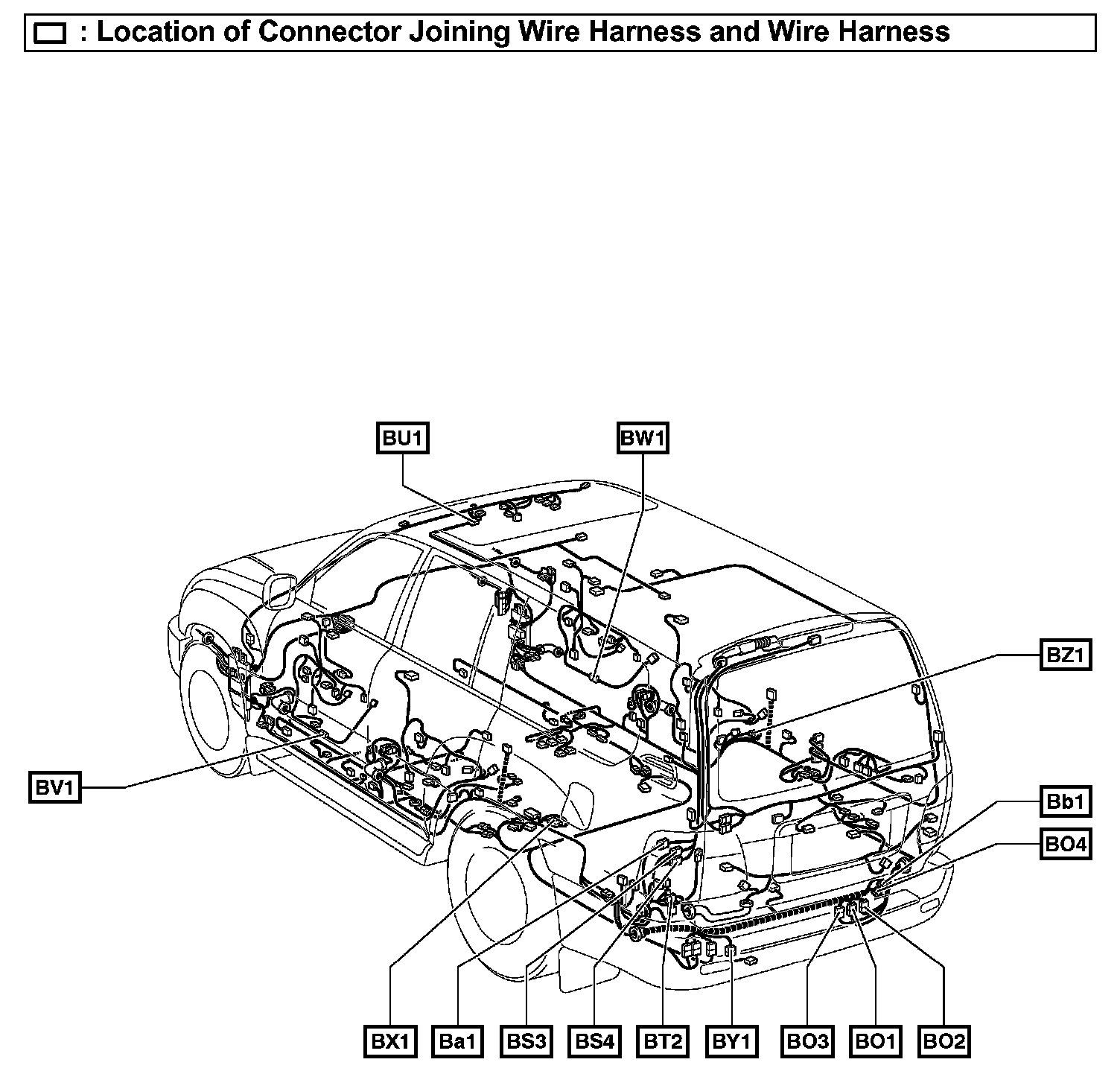

BG1 - BM1:




BO1 - Bb1:




BR1 - BR2:
