Audio System - Remains Muted After Cell Phone Call

AUDIO
AU001-04

January 26, 2004

Title
MARK LEVINSON AUDIO SYSTEM STAYS MUTED AFTER ENDING BLUETOOTH WIRELESS PHONE CALL

Models
'04 LX 470

Introduction

Some customers may experience the Mark Levinson Audio System remaining muted after ending a phone call using the Bluetooth system. Improvements have been made to the software inside the Mark Levinson amplifier to remedy this condition.

Applicable Vehicles
^ 2004 model year LX 470 vehicles equipped with the Mark Levinson sound system produced BEFORE the Production Change Effective VIN shown below.

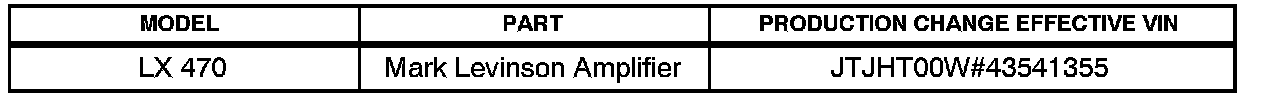

Production Change Information





Parts Information

Repair Procedure

1. Order a replacement amplifier from Mark Levinson through the exchange program by calling 1-800-456-4265.

2. Follow the installation procedure outlined in TSIB No. AU001-02, "Mark Levinson Amplifier Installation Cautions."





Warranty Information

Applicable Warranty*:

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

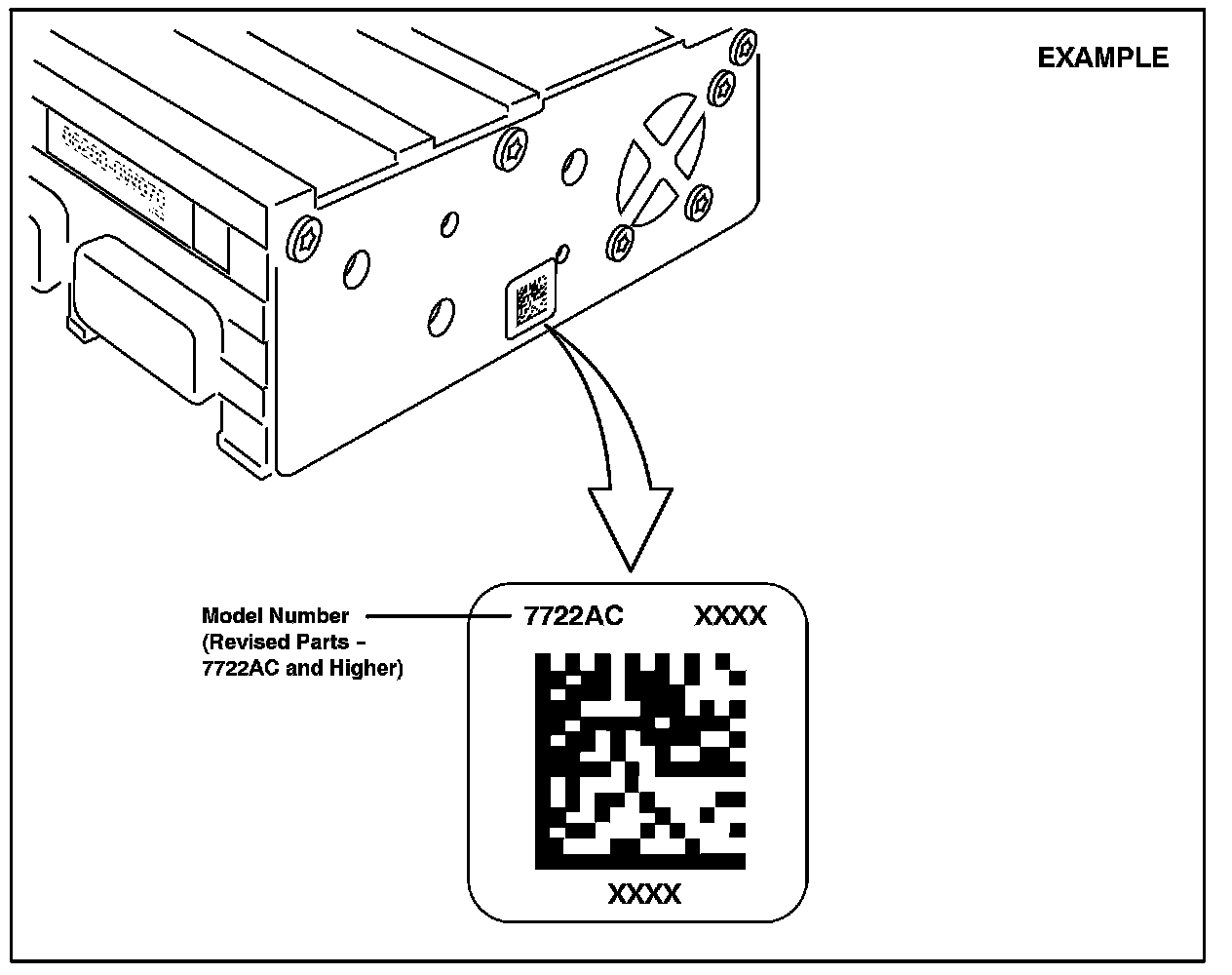

Parts Identification

The model numbers of the improved parts are 7722AC and higher.
