Body - Poor Sunroof Wind Deflector Gasket Fit (Gaps)

ACCESSORIES
AX002-05

Title:
SUNROOF WIND DEFLECTOR
GASKET FIT

Models:
'04 - '05 LX 470

January 25, 2005

Introduction

Some 2004 and 2005 model year LX 470 vehicles may have a gap between the sunroof wind deflector gasket and the roof panel. Please use the following repair procedure to correct this fit-up issue.

Applicable Vehicles

^ 2004 - 2005 model year LX 470 vehicles.

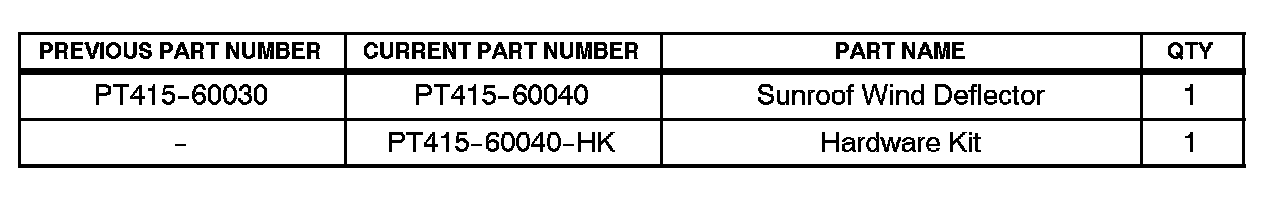

Parts Information

Repair Procedure

The sunroof wind deflector, P/N PT415-60030, should be installed according to the instructions included with the part. If necessary, a copy of the current installation instructions can be found on the Technical Information System (TIS) under Accessories, Installation Instructions. If a proper fit cannot be obtained (i.e., there is a gap between sunroof wind deflector gasket and roof panel), replace screws and brackets with those in the hardware kit, P/N PT415-60040-HK.

Sunroof wind deflector P/N PT415-60030 will be superseded by P/N PT415-60040 once P/N PT415-60030 inventory has been depleted.

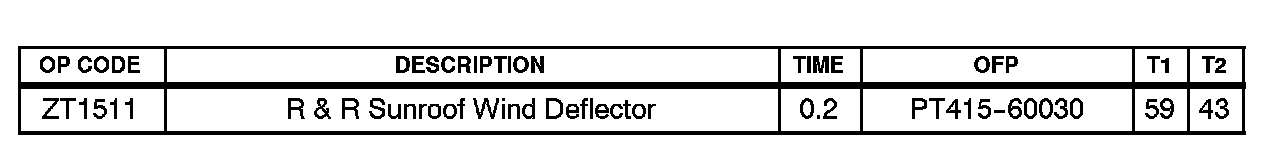

Warranty Information

Applicable Warranty*:
This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
