Canada - A/T - A/T Fifth Gear Shudder
BulletinTSB2075
Issue Date
February 28, 2005
Title
FIFTH GEAR SHUDDER
Component
AUTOMATIC TRANSAXLE & TRANSMISSION
Models
'04 - '05 LX 470
INTRODUCTION:
Some 2004 and 2005 model year LX 470 vehicles may exhibit a shudder (or vibration) sensation, usually accompanied by a cyclic droning noise, when lightly accelerating (less than 15% throttle) after the transmission shifts into 5th gear (usually between 56kmh/35 mph) and 72kmh/45 mph). This condition may be caused by water entering the transmission breather, contaminating the transmission fluid. The transmission breather has been changed to prevent water intrusion.
APPLICABLE VEHICLES:
- 2004 - 2005 model year LX 470 vehicles produced BEFORE the Production Change Effective VINs shown below.
PRODUCTION CHANGE INFORMATION:

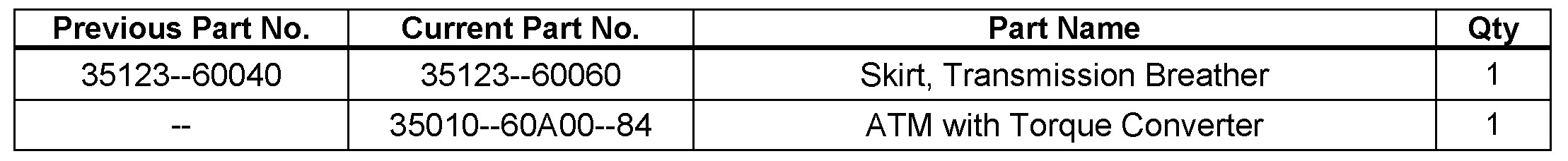

PARTS INFORMATION:
WARRANTY INFORMATION:
REPAIR PROCEDURE:
1. Remove automatic transmission with torque converter.

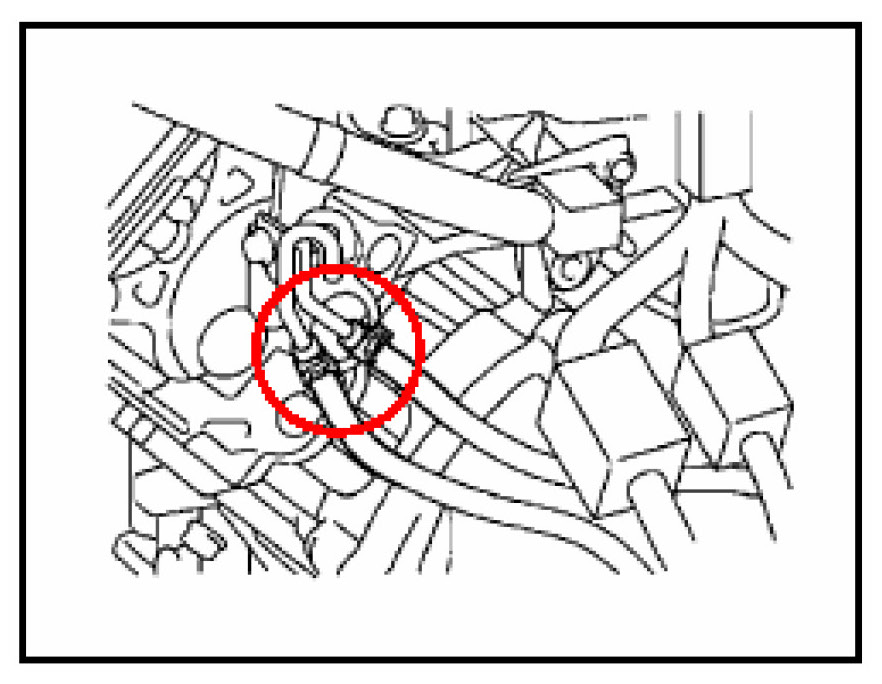

A. Disconnect the breather tube and transfer rear case hose No. 1 from the transmission breather skirt (vent).
B. Remove the transmission with torque converter.
Refer to the ETAS, 2004 or 2005 model year LX 470 Repair Manual; Automatic Transmission: Automatic Transmission Unit: Removal.
2. Replace Transmission Breather Skirt (Vent).
Remove the bolt and replace the transmission breather skirt (vent).
Torque: 12 N-m (122 kgf-cm, 8.9 ft-lbf)
3. Install new automatic transmission with new torque converter.
A. Install the new transmission with new torque converter.
Refer to ETAS, 2004 or 2005 model year LX 470 Repair Manual; Automatic Transmission: Automatic Transmission Unit: Removal.
B. Reconnect the breather tube and transfer rear case hose No. 1 to the transmission breather skirt (vent).
4. Adjust fluid level in transmission.
Refer to ETAS, 2004 or 2005 model year LX 470 Repair Manual; Diagnostics: Automatic Transmission: Pre-Check.
5. Road test and confirm proper transmission operation.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
