Canada - Body - Poor Sunroof Wind Deflector Gasket Fit

Bulletin
TSB2067

Issue Date
December 22, 2004

Title
SUNROOF WIND DEFLECTOR GASKET FIT

Component
BODY COMPONENT

Models
'04 - '05 LX 470

INTRODUCTION:
Some '04 and '05 model year LX 470 vehicles may have a gap between the sunroof wind deflector gasket and the roof panel. Please use the following repair procedure to correct this fit-up issue.

APPLICABLE VEHICLES:
- 2004 - 2005 model year LX 470 vehicles.

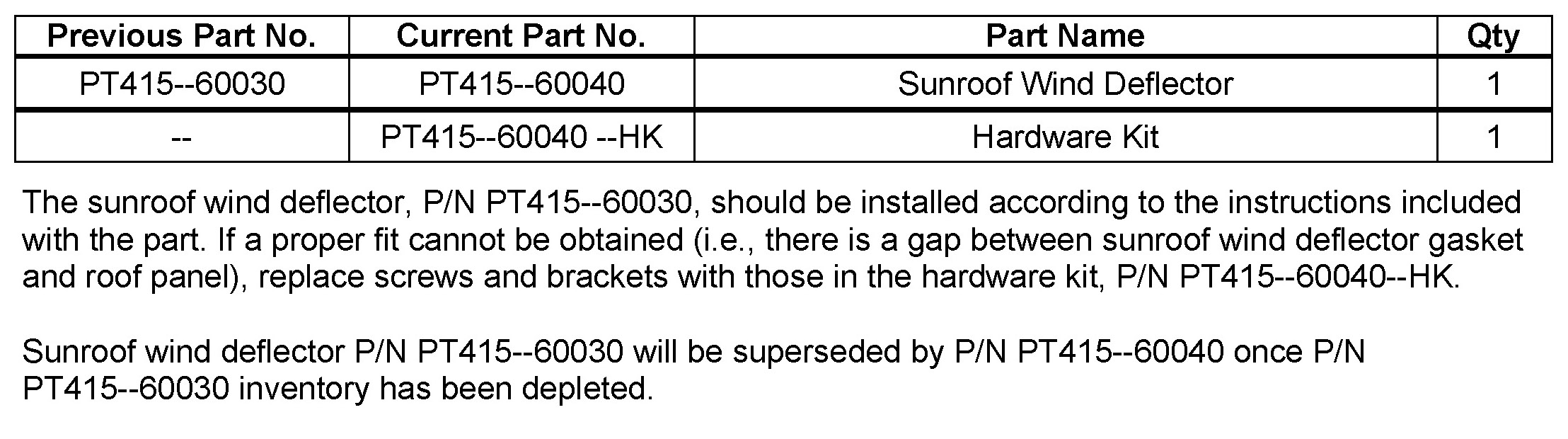

PARTS INFORMATION:

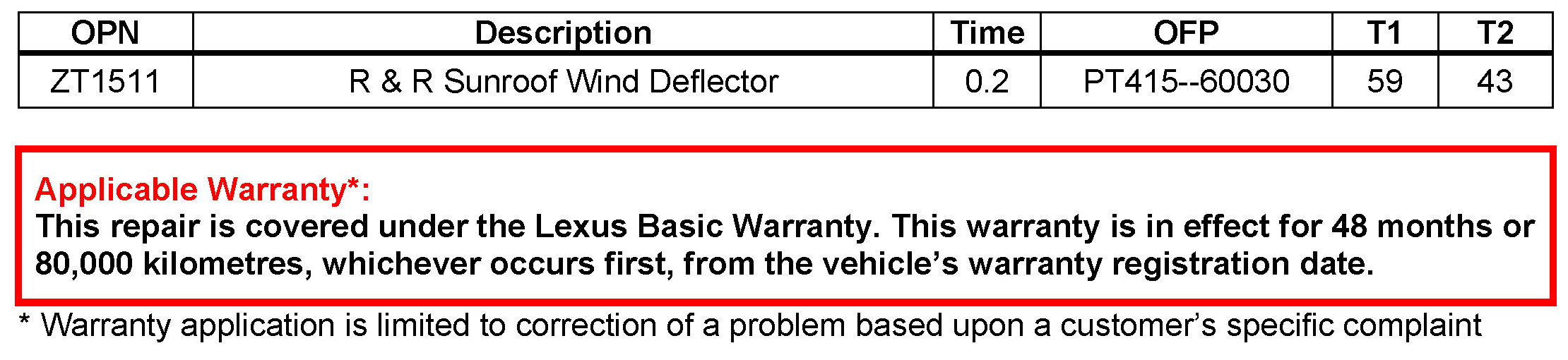

WARRANTY INFORMATION:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
