Exhaust System - Tailpipe Joint Clamp Installation

PRODUCT GENERAL INFORMATION
PG003-05

March 10, 2005

Title:
EXHAUST TAILPIPE JOINT CLAMP INSTALLATION

Models:
'98 - '05 LX 470

Introduction

The purpose of this bulletin is to provide additional details regarding the proper installation angle of an exhaust tailpipe joint clamp on 1998 - 2005 model year LX 470 vehicles.

Applicable Vehicles:
^ 1998 - 2005 model year LX 470 vehicles.

Installation Procedure

Install exhaust tailpipe assembly.

1. Install a new gasket into the exhaust center pipe.

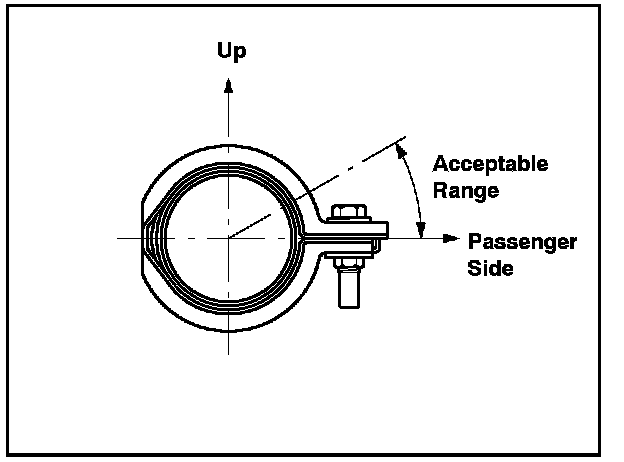

2. Install the new clamp, positioning the bolt within the range shown in the illustration.

NOTE:
Do not reuse the removed gasket and clamp.

Torque: 35 N.m (357 kgf.cm, 26 ft.lbf)
