B0111

DTC B0111 OPEN IN SIDE SQUIB (RH) CIRCUIT

CIRCUIT DESCRIPTION

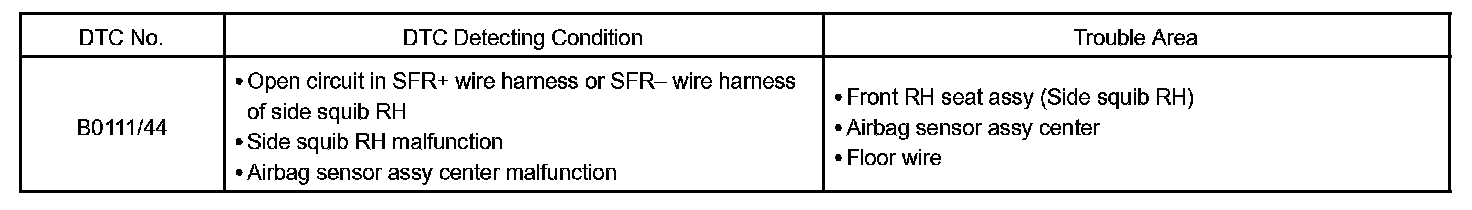

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assy center and the front RH seat assy (side squib RH).

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0111/44 is recorded when an open circuit is detected in the side squib RH circuit.

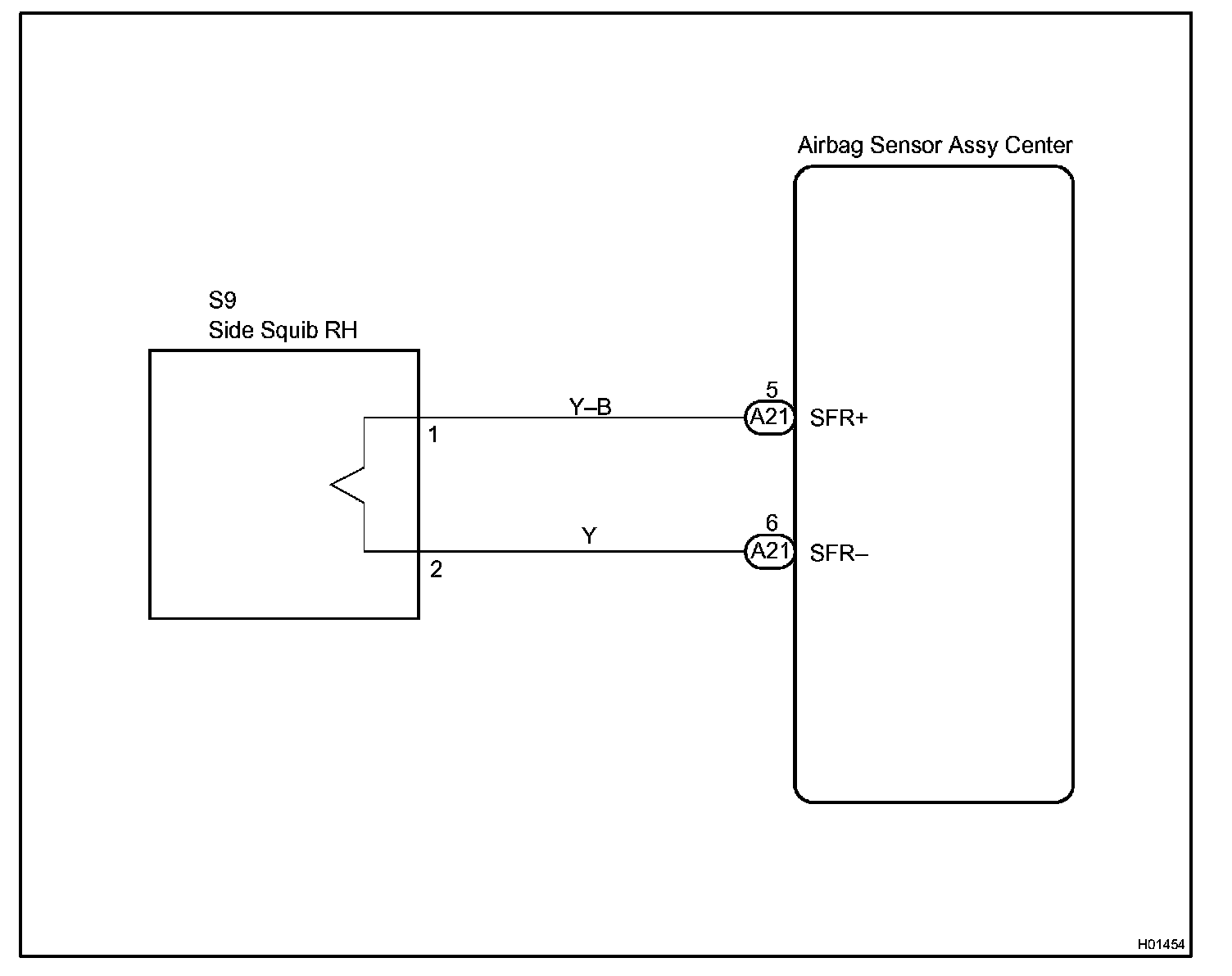

Wiring Diagram:

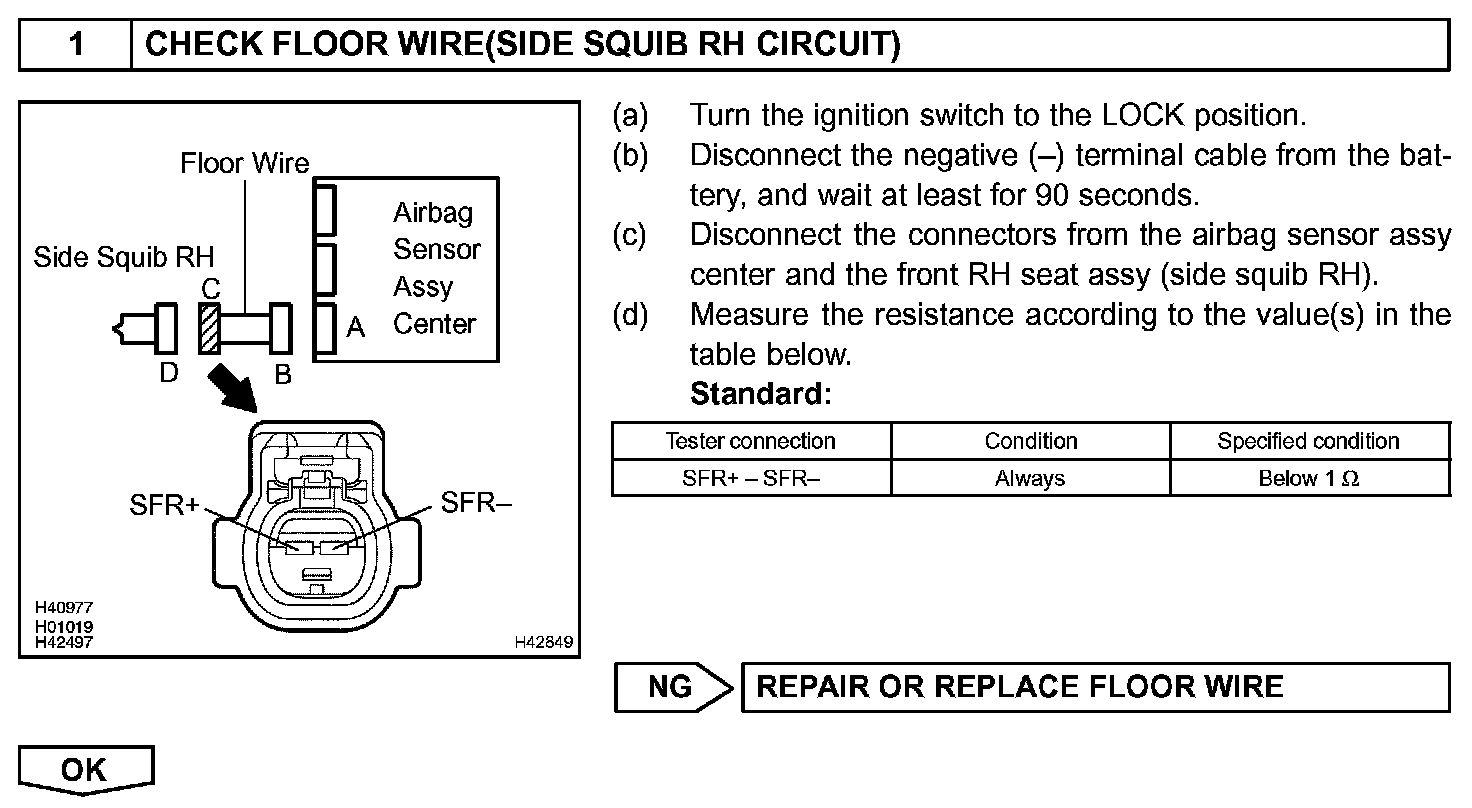

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
