B1154

DTC B1154 AIRBAG SENSOR REAR (RH) MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The airbag sensor rear RH consists of the safing sensor, the diagnostic circuit and the lateral deceleration sensor, etc.

If the airbag sensor assy center receives signals from the lateral deceleration sensor, it judges whether or not the SRS should be activated.

DTC B1154/38 is recorded when a malfunction in the airbag sensor rear RH is detected.

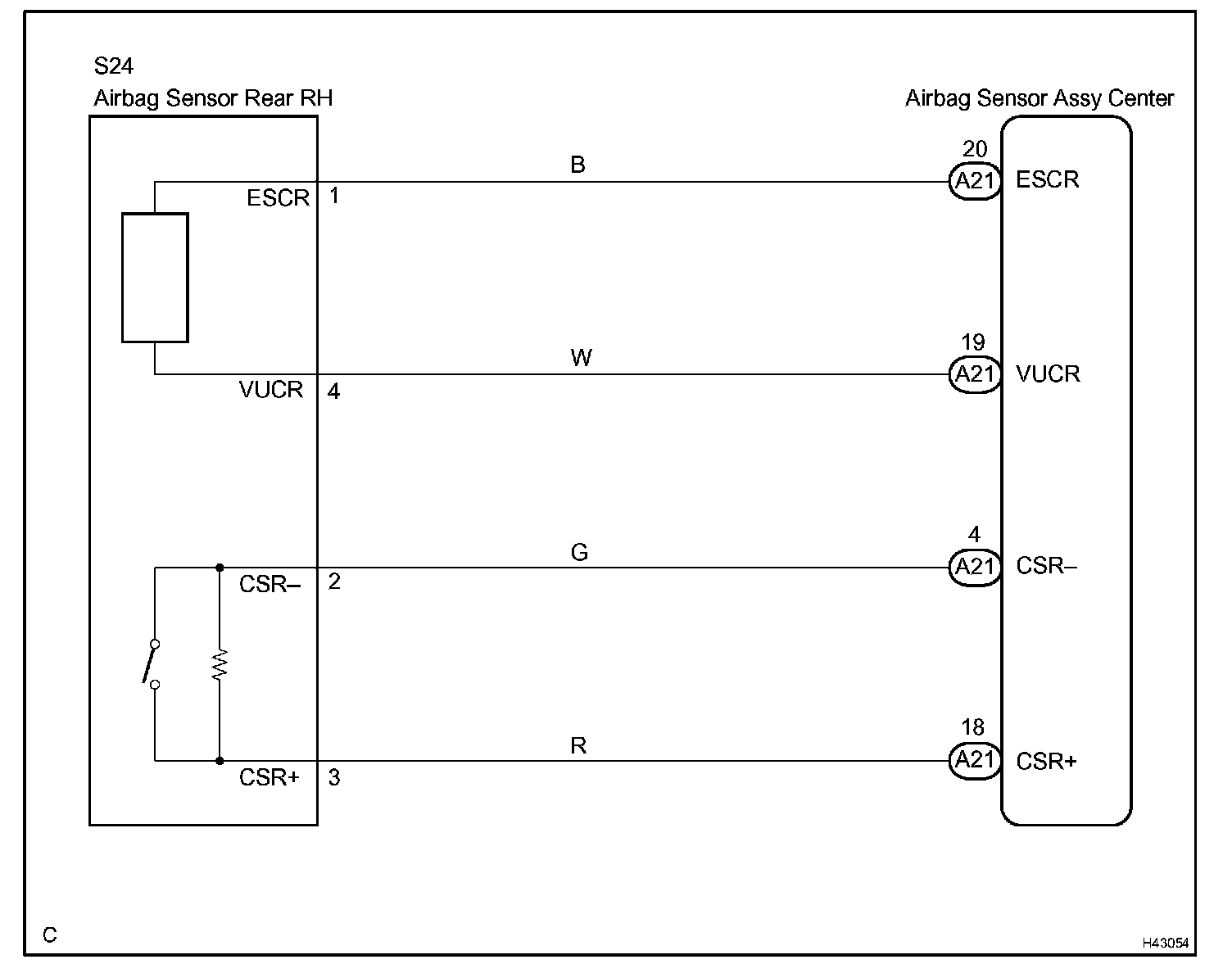

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5 - 6:

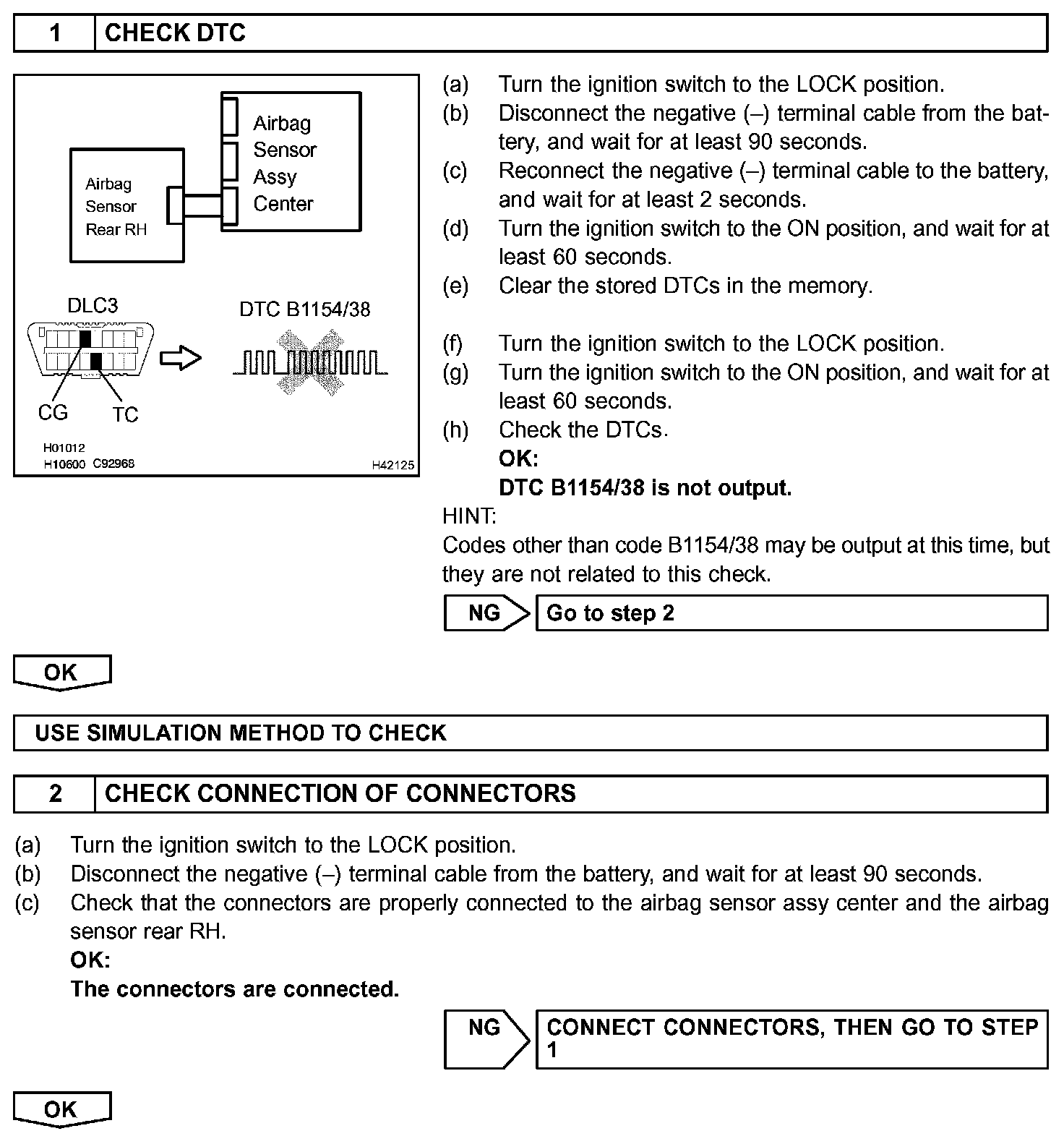

INSPECTION PROCEDURE
