B1180

DTC B1180 SHORT IN D SQUIB (2ND STEP) CIRCUIT

CIRCUIT DESCRIPTION

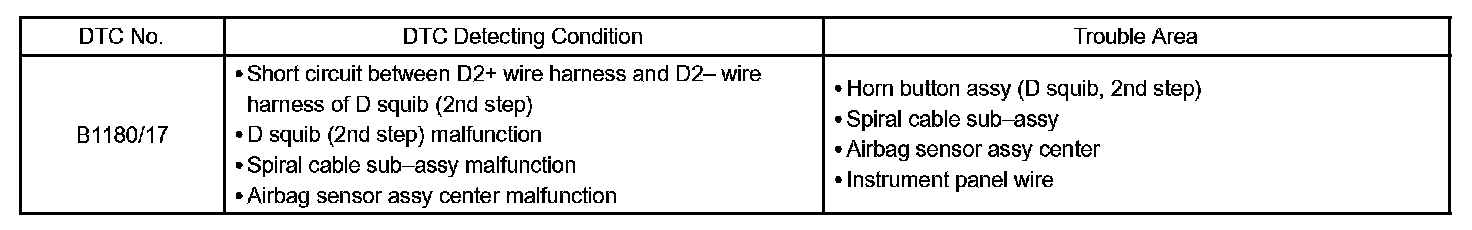

DTC Detecting Condition:

The D squib (2nd step) circuit consists of the airbag sensor assy center, the spiral cable sub-assy and the horn button assy.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1180/17 is recorded when a short circuit is detected in the D squib (2nd step) circuit.

Wiring Diagram:

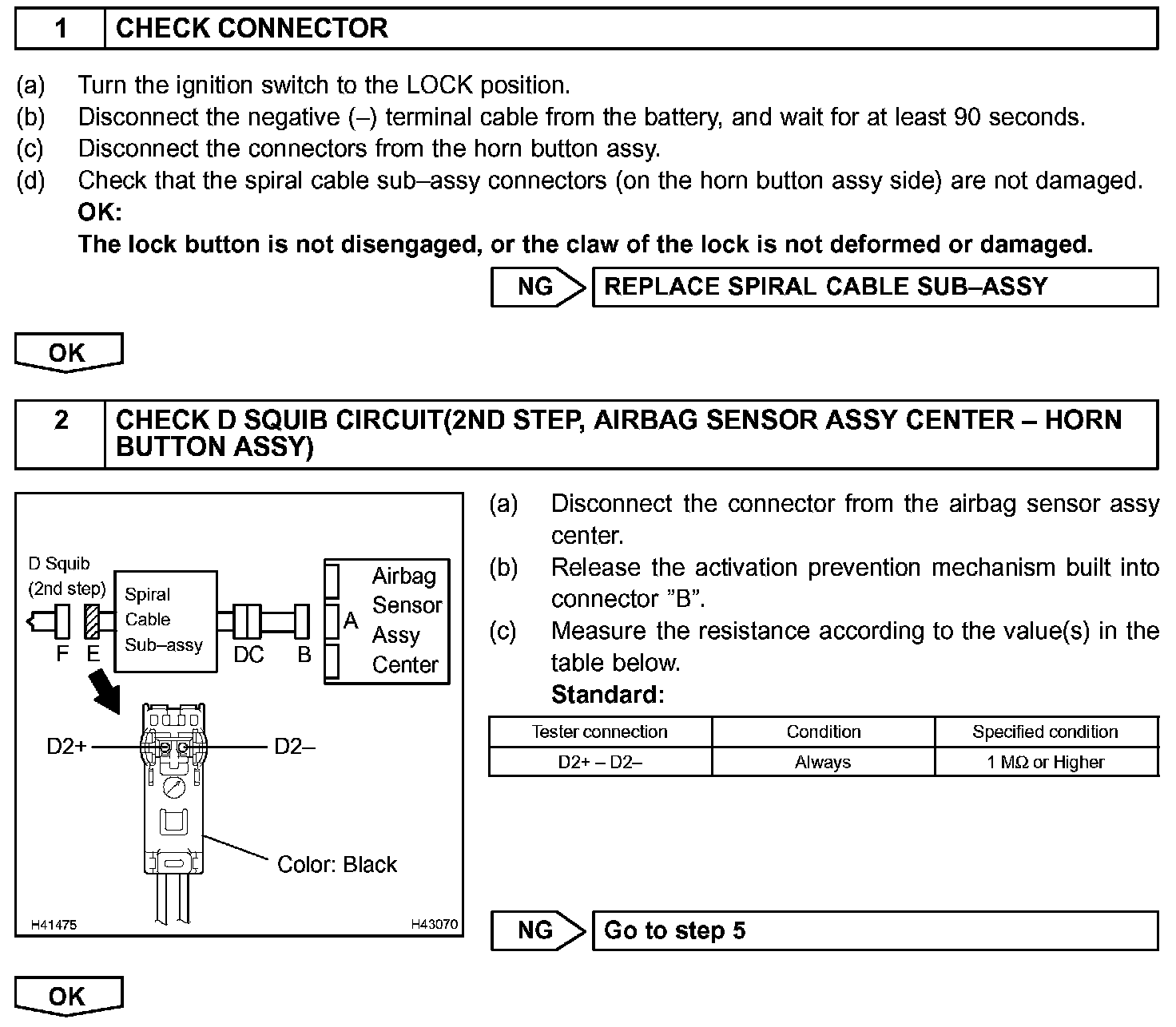

Step 1 - 2:

Step 3 - 4:

Step 5 - 6:

INSPECTION PROCEDURE
