C1231

DTC C1231 MALFUNCTION IN STEERING ANGLE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

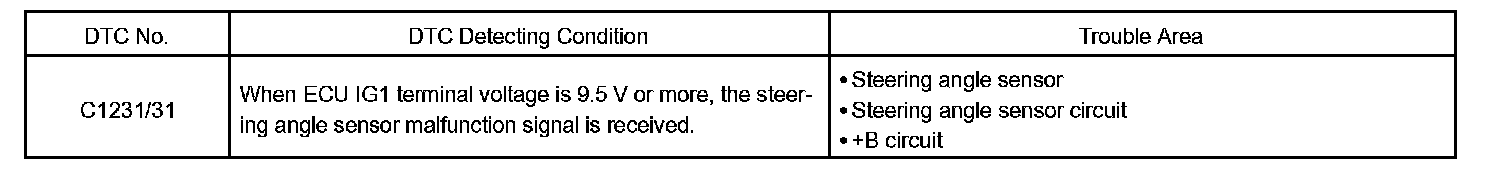

DTC Detecting Condition:

The steering angle sensor signal is sent to the skid control ECU through the CAN communication system. When there is a malfunction in the communication, it will be detected by the diagnosis function.

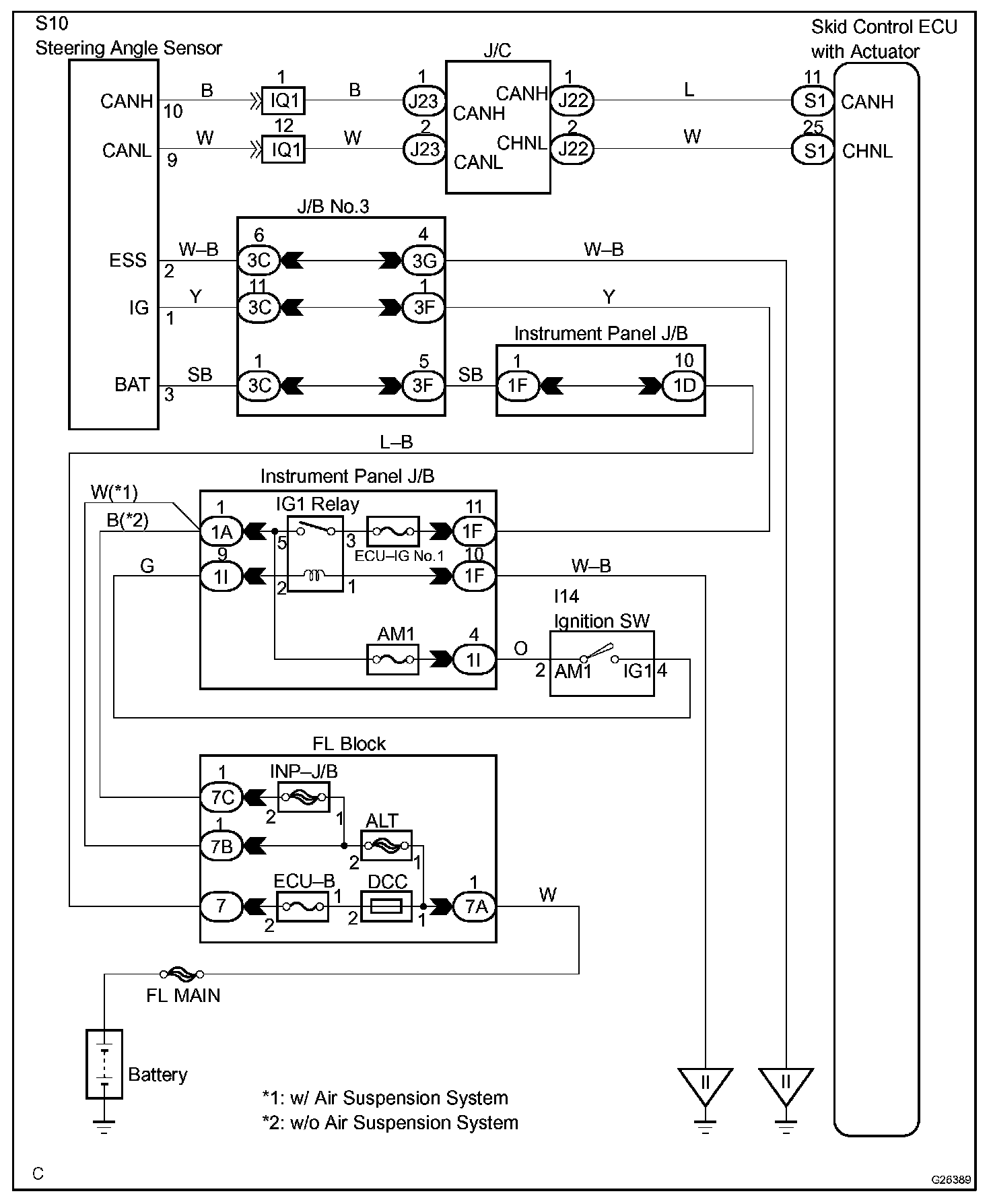

Wiring Diagram:

Step 1:

INSPECTION PROCEDURE
